CEPREI digital force gaugeBACK

Testing Standards:

GAP, H&M, NIKE

Applications:

Measuring of the contact pressure for snaps or button.

Product Information :

Applications:
SBG Series digital force gauge with high sensitivity built-in sensors, with high accuracy, strong function, easy operation and other advantages in the domestic field force measurement ushered in a new era. SBG series is designed for precision measurement and development of push-pull, is ideally suited for machine performance testing, quality inspection, security authentication applications. SBG Series digital force gauge built-in high-capacity lithium-ion rechargeable battery, with a test accessories, power adapter and a portable carrying case, optional Link communications software, which has on the PC to the instrument parameter settings, download the test data and export to Excel file, load curves plotted as functions.
Main features:
Measurement accuracy better than ±0.2%F.S.±1LSC;
Range: 0.25kgf~100kgf(2.5N~1000N), a total of nine specifications;
Four kinds of test mode: The average reading mode, Thrust Peak mode, Peak Rally Mode, Force peak mode;
Using 128x64 dot matrix backlit LCD with large-screen LCD display frequency, can clearly show the measured values and all kinds of information;
The display can be set to display the character back, forward and intuitive operation can be inverted state;
You can enter the local gravitational constant, due to the elimination of the differences caused by different regions;
Provide Chinese menu interface, simple and quick operation;
Ultra-low-power design, continuous working time of up to more than 80 hours;
Remaining battery power indicator and fast charging design, charging just 3.5 hours;
With real-time clock indicator;
Capable of storing 990 test data (including payload size of each data, test time, eligibility and other information);
Switchable common mechanical unit: kgf/gf、N、lbf/ozf;
Aluminum shell, durable chassis;
Rich interface: USB, Digimatic, analog signal output, etc.
Technical Specification:
Specification SBG-1 SBG-2 SBG-5 SBG-10 SBG-20 SBG-50 SBG-100
Cheap SBG-1C SBG-2C SBG-5C SBG-10C SBG-20C SBG-50C SBG-100C
Range 1.000kgf 2.000kgf 5.000kgf 10.00kgf 20.00kgf 50.00kgf 100.0kgf
10.00N 20.00N 50.00N 100.0N 200.0N 500.0N 1000N
2.200lbf 4.400lbf 11.00lbf 22.00lbf 44.00lbf 110.0lbf 220.0lbf
Resolution 0.001kgf 0.01kgf 0.1kgf
0.01N 0.1N 1N
0.001lbf 0.01lbf 0.1lbf
Accuracy ±0.2%F.S.±1LSC
Units kgf/gf, N, lbf/ozf(Switchable)
Mode The average reading mode, Thrust Peak mode, Peak Rally Mode, Force peak mode;
Display 28x64 dot matrix LCD, 14x8mm large characters, white LED backlight
Display refresh rate 2 times / sec., 2 times / sec., 2 times / sec.(Switchable)
AD converter 20 bit, △/∑ADC
Sampling rate 500 times/sec.(Standard), 32 times/sec.(Economic)
CPU 8-bit RISC MCU
Data Retention 990 (10 groups), 50(Economic)
Limit load 150% F.S. When it is up to 110% F.S. the LED blinks, beeps warn
Analog Output ±2 VDC/F.S.
Data communication interface USB
Printer Output Digimatic
Comparison of the signal output High, OK, Low,±NG*
External control interface PEAK, ZERO, SEND
Temperature 0℃-40℃
Continuous use of time 80 hours (backlight off), 18 hours (backlight on)
Power 12mA (backlight off), 50mA (backlight on)
Auto-off time 5min, 10min, 30min, off(Switchable)
Battery charging time Approx. 3.5hours
dimensions 218x76x31.8mm(length x width x height)
Total Weight Approx. 465g

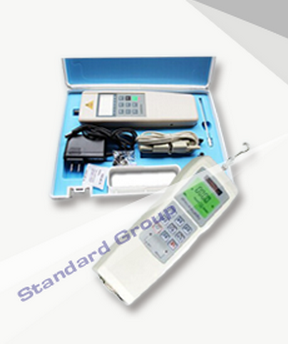

Standard Accessories Portable suitcase, AC power adapter, 6 test head, user manual
