Standards:

ASTM F2100: Standard Specification for Performance of Materials Used in Medical Face Masks EN149: Respiratory protective devices - Filtering half masks to protect against particles - Requirements, testing, marking NIOSH-42 CFR84: NIOSH Guide to the Selection and Use of Particulate Respirators（或 42 CFR Part 84 - Approval of Respiratory Protective Devices）

Applications:

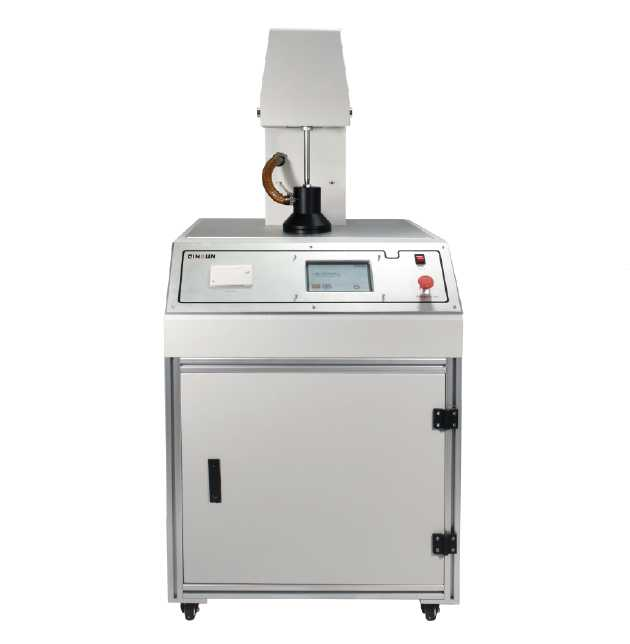

G506 Mask Automatic Filter Performance Tester is used for testing professional filter material and filtration efficiencyof a wide range of air filters including HEPA and ULPA filter, respirator, filter cartridge and protective clothing test. It also can use salt or oil mist to test filter media. Rapid acquisition of filter media performance evaluation parameters, and accurate evaluation of filter material quality, performance, life and so on. It is convenient to user for academic research and product development of new filter materials, product quality control, material performance verification.

Product Information:

The latest G506 mask automatic filter performance tester uses the most advanced technology and design concepts, to meet a variety of test standards and the latest National standard GB / T 32610.Only relatively little operation is required to complete all the function and operation. Hardware performance of G506 mask automatic filter performance tester is stable and excellent in repeatability. Software design meet with people's thinking mode, the interface is user-friendly, and the functional and parameter settings are very reasonable. It is convenient to user for academic research and product development.

Feature

Complies to more standards than any other filter tester

Salt and oil testing in one unit

Highly consistent test results

New user-interface and data recording options

Customizable fully automated testing sequences

Ergonomic design

Reduced cost of ownership with new serviceable photometers

Worldwide service and support

Parameters

Items	Parameter
Apllication	Load and quality control
Max Efficiency	99.999%
Aerosol Type	DOP/PAO/DEHS/Paraffi/Others Oil Aerosol、Salt
Aerosol Generation	Atomizing
CMD	0.2μm（Oil）or 0.75um(NaCl)
GSD	＜1.6（Oil）or <1.86(NaCl)
Flow Rate	15-100L/min
Resistance	0-150mm H2O(0-1470Pa)
Particle Detect	Scatter Photometer
Measurement Time	10 Sec.
Data Report	LCD，RS-232
Operation	Independent tewster、automatic production line
Standard compliant	US 42 CFR part 84.EN 143.JMOL，ISO 23328-1 ISO 16900-3
Power Supply	115VAC、60Hz，10A或230VAC，50Hz，5A
Compressor Air	80psig，7scfm（550kPa，198std.L/min）
Dimension	70cm x 70cm x 147cm（28in, x 28in.x 58in.）

Accessoriess

Main Unit: As the core component of the testing instrument, it is responsible for overall control and data processing.

Aerosol Generator: Includes salt particulate aerosol generators and oil particulate aerosol generators, used to generate the aerosol particles required for the test.

Classifier: Utilizes the principle of inertia to collect unwanted large particles into a collection bottle, ensuring that the aerosol particles entering the testing system meet the requirements.

Particle Counter: Usually equipped with two units, used to measure the number or mass concentration of aerosols upstream and downstream of the filter media, and is a key device for calculating filtration efficiency. Some systems may use a laser scattering photometer instead of a particle counter.

Static Neutralization Device: Neutralizes the static electricity carried by the aerosols, reducing particle loss and the influence of static electricity on the test results.

Differential Pressure Sensor: Monitors the pressure drop across the filter media, assessing changes in resistance during the filtration process.

Flow Meter: Monitors the flow rate during the test, ensuring consistency of test conditions. Flow meters are typically 2.5 grade accurate, ranging from 10-100 L/min.

Vacuum pump: Provides the necessary negative pressure environment to ensure aerosol particles can smoothly enter the testing system.

Pneumatic clamps and protective devices: Employ pneumatic clamping, offering convenient operation and high safety, while also featuring protective devices to ensure safe use.

Programmable logic controller (PLC) and touchscreen: Enables automated control of the testing process, including control, monitoring, calculation, and data display functions. Some devices utilize a PLC control system and are equipped with a 7-inch color touchscreen.

Instruction manual and power cord: Provides an operation guide and power connection instructions to ensure users can correctly operate the equipment.

Test Procedures

Operating Procedures:

First: Prepare the accessories and test sample;

Turn on the instrument and enter the LCD screen operating interface;

Perform a no-load test first;

Press the dual-control pneumatic keys on both sides to lower the clamp;

Set the airflow rate and aerosol particle parameters;

After the data stabilizes, proceed to the next step;

Obtain the amount of aerosol upstream of the filter media;

Once the data stabilizes, a "Place Clamp" dialog box will pop up on the screen;

Place the prepared sample into the instrument clamp and clamp it securely;

Start the test;

Wait a few seconds to obtain the amount of aerosol downstream of the filter media and calculate the filtration efficiency;

The instrument will automatically print out the test report;

Remove the sample;

After the test, turn off the instrument and evaluate the filtration performance of the material based on the test data results.

FAQ

1. What is this product?

The G506 Mask Automatic Filter Performance Tester is an automated test system used to evaluate the filtration efficiency and pressure resistance of mask materials and air filter media under controlled aerosol conditions.

2. What is this product used for?

It is used to measure filtration efficiency, pressure drop, and related performance parameters of mask materials, respirators, filter cartridges, and protective materials using salt or oil aerosols in accordance with applicable standards.

3. Why is this product important?

Accurate evaluation of filtration performance is essential for verifying product compliance, ensuring user safety, and supporting material development. The G506 provides repeatable and automated testing results under standardized conditions.

4. What industries is this product suitable for?

This product is suitable for mask manufacturers, respirator and filter producers, medical device companies, research institutions, testing laboratories, and quality inspection organizations.

5. What types of this product are available?

The G506 supports salt aerosol and oil aerosol testing in a single system and can be configured for standalone laboratory testing or integration into automated production and quality control lines.
