Standards:

GB/T 4208 Degrees of Protection Provided by Enclosures (IP Code) GB/T 10125 Corrosion Tests in Artificial Atmospheres – Salt Spray Tests GB/T 15173 Sealing Test Methods for Electrical Equipment GB/T 2423 (Series) Environmental Testing for Electric and Electronic Products QC/T 413 Sealing Test Methods for Automotive Parts JB/T 9092 Airtightness Test Methods for Industrial Products ISO 20485 Non-destructive Testing – Leak Testing – General Methods ASTM E283 Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen

Applications:

Tightness and leak testing of technical components and devices;

Sealing performance testing of automotive and engine system components;

Leakage detection of pipelines, valves, fittings, and pressure vessel assemblies;

Integrity verification of enclosure sealing for electronic, electrical, and electromechanical equipment;

Overpressure and vacuum testing of aerospace and rail transit components;

Sealing performance evaluation of medical devices and laboratory equipment;

Sealing tests under high- and low-temperature conditions in environmental test chambers;

Verification of sealing structure designs during new product development;

Sealing quality control in production lines and final inspection processes.

Product Information:

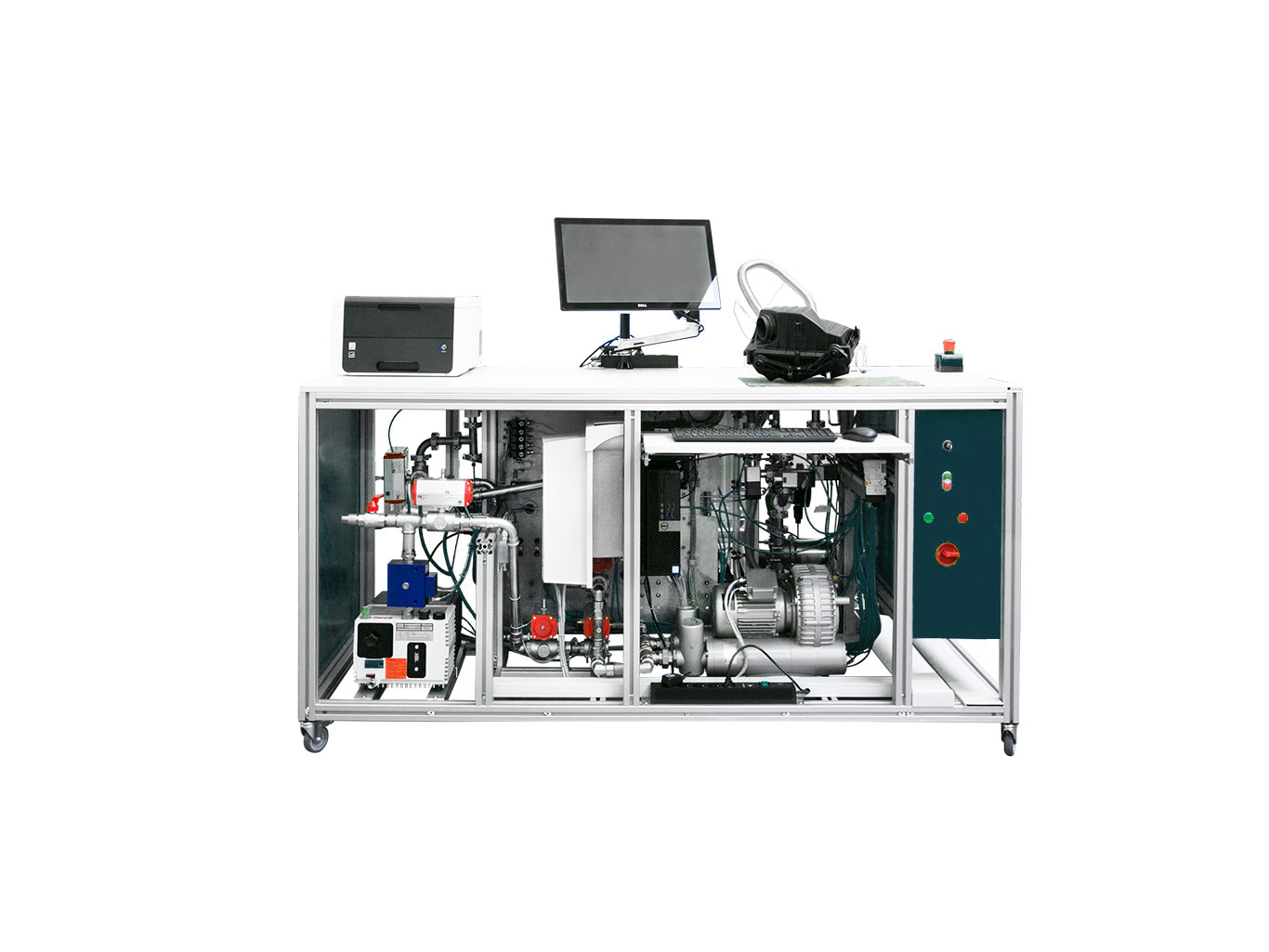

Test System for testing tightness and leackage for a high diversity of components and devices. With Leak Test Systems of series it is possible to test tightness against over and low-pressure of components of different dimensions and shapes. The leak rate is determined depending on pressure.

The test rig is working at test air temperatures from -40°C up to 120°C. A heat exchanger protects the measurement instrumentation against damages because of too low or high temperatures during low pressure operation. For external connection the test rig has a test air adapter, a pressure measurement port as well as a temperature sensor which have to be connected with the test sample. All connecting lines are 2 m long so that the sample can be in a climatic chamber during the test.

Technical data

Features

Test pressure is measured directly at test sample

Tests with over and low-pressure possible (pressure and suction mode)

Wide temperature range of applicable test air

By means of cascading of several laminar flow elements wide volume flow range

Compact design

Mobile – easy to move by lockable weels

Easy handling supported by computer-controlled test procedure

Accessories

(1) Test air adapter for external sample connection

(2) Pressure measurement port

(3) Temperature sensor for test air monitoring

(4) Connecting lines

(5) Computer-controlled test and data acquisition software

Test Procedures

Connect the test sample to the test air adapter, pressure port, and temperature sensor.

Place the test sample in ambient conditions or inside a climatic chamber if required.

Select overpressure or low-pressure test mode according to the test requirement.

Apply compressed air or vacuum to establish a stable pressure condition inside the sample.

Measure pressure, volume flow, and gas temperature continuously during the test.

Calculate the leak rate automatically based on flow behavior and pressure differences.

Record and evaluate the test results using the computer-controlled system.

Maintenance Information

Regularly inspect laminar flow elements to ensure accurate flow measurement.

Keep compressed air clean and dry to prevent contamination of measurement components.

Verify pressure and temperature sensors periodically for calibration accuracy.

Check seals, hoses, and connectors for wear or leakage before each test series.

Ensure proper functioning of the heat exchanger when operating at extreme temperatures.

FAQ

1.What is this product?

It is a leakage test system for measuring tightness and leak rates of components and devices under pressure or vacuum conditions.

2.What is this product used for?

You use it to detect and quantify leakage in technical components during quality control, validation, and R&D testing.

3.What is the working principle of this product?

The system creates overpressure or vacuum inside the sample and determines the leak rate by measuring airflow through laminar flow elements with pressure and temperature compensation.

4.Why is this product important?

It allows you to reliably verify sealing integrity under different pressures and temperatures, preventing product failure and quality issues.

5.What industries is this product suitable for?

Automotive, aerospace, electronics, HVAC, medical devices, industrial manufacturing, and testing laboratories.
