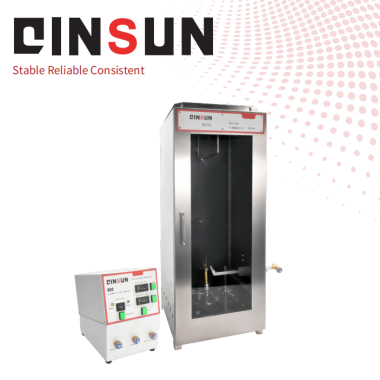

Vertical flame test chamber

BACK
Vertical flame test chamber

info@standard-groups.com Quote

Share

Standards:

Applications:

Product Information:

Introduction

The Vertical Flammability Chamber, designed for American Standards, measures the vertical flame spread for children's sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture.

Standards

ASTM D6413. CALIF TB117. DOC-FF 3/71. 16CFR Parts1615/1616. FTMS 191-5903. CPAI 84

Application

The vertical burning of textiles is suitable for all types of fabrics and their products. Test method applicable to the burning performance of the bottom edge of the vertical textile specified in GB5455-2014 standard.

Features

Gas pipeline system special designed, low space occupied, and convenience to move;

Exhaust vents at the bottom and top of test chamber ensure good ventilation and steady flame;

LED displayer shows the igniting time, afterflame time and afterglow time, with high working efficient and the data more accuracy;

A stainless steel construction, large glass-viewing window;

Excellent reliability and minimum maintenance;

Purpose-designed test chamber.

Parameter

Item Parameter
Inner size About 330*330*765mm.
Windows tempered glass observation window
Exhaust holes 16pcs proof holes,6pcs each side(total 12pcs)
Exhaust diameter 12.5mm
Proof hanging clamp located 17mm above the highest point of the igniter nozzle.
Diameter of the igniter nozzle 11mm
Angle about the head and vertical line 25°
inlet gas pressure of the igniter 17.2kpa±1.7kpa
Ignition time accurate to 0.05s
Gas source industrial grade propane, butane or propane / butane mixed gas. When the sample is pretreated according to 7.3 in GB5455-2014. methane gas with a purity of not less than 97% is selected.
Sample size 300*89mm, five horizontal and vertical
Ambient temperature -10 ° C ~ 30 ° C
Power supply voltage 220V±10% 50HZ
Power less than 100W
Flame time 0-99M99S
Flame time accuracy ± 0.01s
Afterglow time longest 0-99M99S
Blue flame height 15mm-175mm with flame height scale
Ignition time any setting (can be preset)
