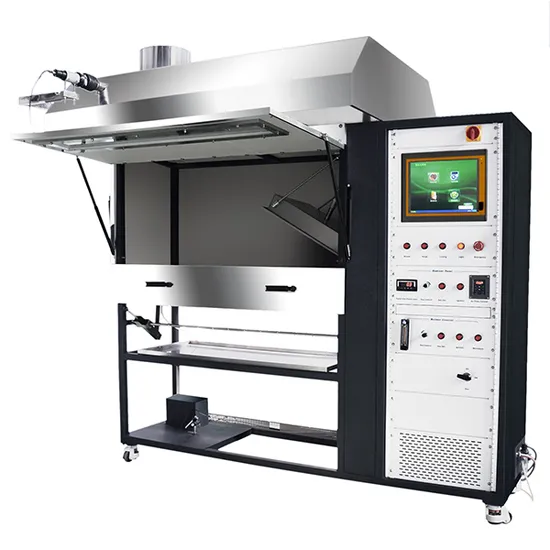

Flooring Radiant Panel Test Apparatus EN ISO 9239-1
BACK
Standards:
ASTM E648-15 Standard test method for critical radiant flux of floor-covering systems using radiant heat energy source BS EN ISO 9239-1-2010 Reaction to fire test for flooring-Part 1: Determination of the burning behavior using a radiant heat source GB/T 11785-2005 Determination of Combustion Performance -Floor material radiation heat source method ISO 9239-1: Flooring fire reaction test- Part 1: Combustion performance of flooring materials tested by radiant heat ASTM E 648: Critical Radiant Flux of Floor standard test - covering system uses radiant heat energy ASTM E 970: Using a Radiant Heat Energy Source, test insulation floorinsulation insulation standard test for Critical Radiant Flux using a radiant heat energy. NFPA 253: Standard Test Method for using radiant heat energy, test plates overlay system Critical Radiant Flux
Applications:
The Flooring Radiant Panel Test Apparatus is suitable for:
Construction industry: Testing flame spread and combustion characteristics of flooring materials such as carpets, wooden floors, and rubber flooring.
Transportation: Evaluating flooring materials used in railways, aviation, and shipping for fire performance.
Fire safety: Providing data for fire safety organizations and certification authorities.
Residential and commercial interiors: Testing flooring materials used in homes, offices, and public spaces.
Material research and development: Supporting the design of new flooring materials or fire-retardant products.
Product Information:
The Flooring Radiant Panel Test Apparatus is used to tester a variety of flooring materials, such as: textile carpets, cork, wood, rubber and plastic flooring and floor spray materials. The results can reflect the combustion properties of the floor material (including the substrate), which is used in the test combustion chamber to ignite the floor material placed horizontally and exposed to the tilted thermal radiation field with a small flame. It can be used to evaluate the material flame Communication ability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Maximum power | 5 kW |
| Timing accuracy | <1 s/h |
| Heat flux sensor range | 0–15 kW/m² |
| Heat flux sensor accuracy | ±0.2 kW/m² |
| Heat flux sensor precision | <±3% |
| Radiant high-temperature sensor range | 400–600°C, ±0.5°C |
| Black body temperature error | ±5°C |
| Exhaust air velocity | (2.5 ± 0.2) m/s |
| Exhaust capacity | 39–85 m³/min |
| Porous refractory radiation panel size | 300 × 450 mm, withstands ~900°C |
| Thermocouple specification | Ø3.2 mm, K-type stainless steel armored |
| Burner specification | Outer Ø10 mm, inner Ø6 mm, nozzle Ø0.7 mm |
| Flame height adjustment | 60–120 mm, adjustable |
| Ignition system | High-voltage electronic ignition |
| Exhaust system | Forced ventilation, fumes discharged outdoors |
Accessories
| Accessory | Quantity | Description |
|---|---|---|
| 304 stainless steel flame height gauge | 1 | Measures flame height |
| Gas pipe clamps | 2 | Secures gas tubes |
| User manual | 1 | Instructions for operation and maintenance |
| Certificate of conformity | 1 | Confirms product quality inspection |
Features
The main components are imported, which is safe and reliable, long service life;
Gas pipeline layout is reasonable, equipped with gas leakage and tempering device. The instrument automatically closes at the inlet of gas leakage, and alarm;
Radiant plate temperature can be automatically adjusted.
Propane gas supply is equipped with imported mass flow controller. The air output is equipped with a separate blower. Automatic adjustment of the frequency without manual;
Normal test, the flame spread distance can be recorded through the foot switch, without the need to manually click the mouse to operate the computer;
Instrument with industrial one machine, is easy to operate and reliable;
The instrument adopts advanced control software developed by VB language. Centralized control acquisition and processing data analysis;
Conclusion
The Flooring Radiant Panel Test Apparatus offers a reliable and standardized method for evaluating the flame spread and combustion performance of flooring materials under radiant heat exposure. With precise heat-flux control, automated adjustment, and comprehensive safety features, it delivers accurate and repeatable results. Compliant with ASTM, ISO, EN, and GB standards, the system is well suited for construction, transportation, fire safety certification, and flooring material research and development.
FAQ
1.What is this product?
The Flooring Radiant Panel Test Apparatus evaluates flame spread and combustion performance of flooring materials under simulated fire conditions.
2.What is it used for?
It measures heat release, flame propagation, and other fire reaction parameters to assess flooring fire performance.
3.How does it work?
Samples are exposed to radiant heat, and sensors record flame height, heat flux, and other parameters during combustion.
4.Why is it important?
Provides essential fire performance data to ensure compliance with building, transportation, and safety standards.
5.Which industries is this product suitable for?
Construction, transportation (rail, aviation, marine), fire safety organizations, home and commercial interiors, and material R&
