Standards:

◆ UK Regulation British furniture (fire and safety) regulations test ◆ BS 5852 Methods of test for assessment of the ignitability of upholstered seating by smouldering and flaming ignition sources ◆ CFR 1634 Standard for the flammability of residential upholstered furniture; Proposed rule. ◆ ISO 11925-2 – Reaction to fire tests for furniture

Applications:

BS 5852 combustion test equipment is mainly used to determine the flame retardant properties of soft furniture.  It’s widely and conveniently use.

Furniture industry: Assessing combustion performance of mattresses, sofas, and related furniture materials.

Fire safety: Providing reaction data of furniture materials under fire for testing organizations.

Quality control: Supporting manufacturers in performance evaluation and certification compliance.

Research institutions: Studying combustion characteristics of new flame-retardant materials.

Product Information:

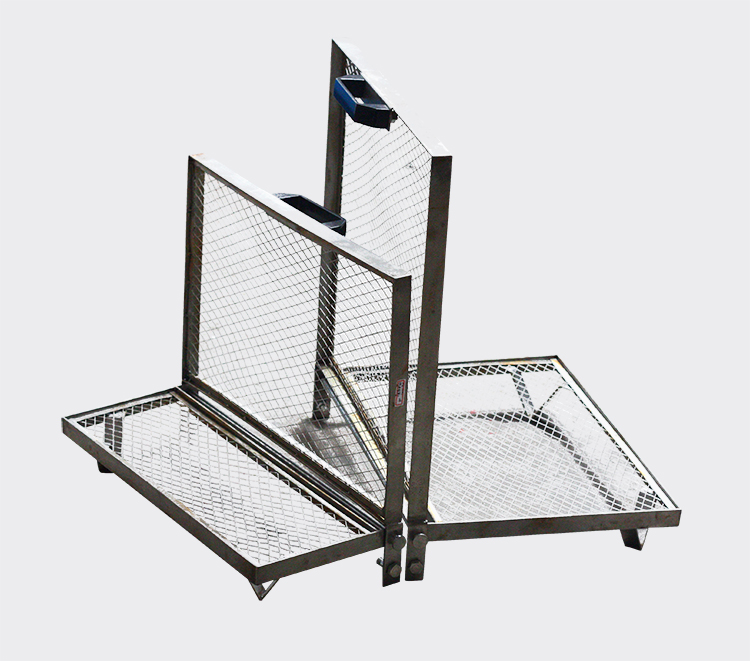

BS 5852 combustion test equipment  is widely used to test the flame retardant properties in Europe and United States soft furniture. It takes the flammability test with 0-7 fire and standard fabrics and sponge.

Features

◆ Stainless steel sample frame.
◆ The dimension is 450 mm X300 mm X150mm and 450 mm X450 mm X300mm.
◆ Heat-resistant wire mesh structure.
◆ Stainless steel ignition tube.
◆ Stainless steel test template.
◆ Digital display, the accuracy of the numerical display is 0.01cm.
◆ Standard wood, standard sponge and standard cigarettes.

Parameters

Test mode	Automatic
Test flow	(45±2)m1/min
Air pressure	2.8kpa
The length of air pipe	Length 2.5~3mm, Inner diameter 7±1mm
Timer	0~999s
Power supply	AC 220V 50/60HZ
Dimensions	570x310x440mm (L x W x H)
Weight	20 kg

Test Procedures

This test must be conducted in a laboratory with standard airflow. The upholstery and filling materials are placed in a test apparatus to create a small sofa with a base and backrest measuring 90°. An ignition source is placed at the connection between the sofa's base and backrest. There are six different ignition sources, numbered 2-7. where 2-3 are gas combustion sources and 4-7 are wood combustion sources (higher numbers represent more intense ignition sources within the group).
During the gas combustion process, the smoldering time from the start should not exceed 30 minutes (60 minutes for wood combustion sources). If the test does not demonstrate charring in all directions beyond 100mm above the ignition source, the gas flame should be removed after 40 seconds (ignition source 2) or 70 seconds (ignition source 3). If there is no flame, it is permissible to continue for more than 120 seconds after the removal of the combustion tube. If there is no flame, it is permissible to continue for 10 minutes after the start of the test for ignition source 5 (13 minutes for ignition sources 6-7).

FAQ

1.What is this product?
A combustion tester for mattresses and sofas, assessing ignition resistance of furniture materials.
2.What is it used for?
It measures flame spread, ignition time, and combustion rate to evaluate fire safety.
3.How does it work?
Samples are ignited with a propane flame, and sensors/timers record fire reaction parameters.
4.Why is it important?
Provides essential data to ensure furniture materials meet fire safety standards.
5.Which industries is this product suitable for?
Furniture manufacturing, fire safety testing, quality control, and flame-retardant material research.
