Standards:

ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132, JIS D 1201, AU 169

Applications:

Measures the relative burning rate and flame retardant of textile, especially the automotive trim.

Product Information:

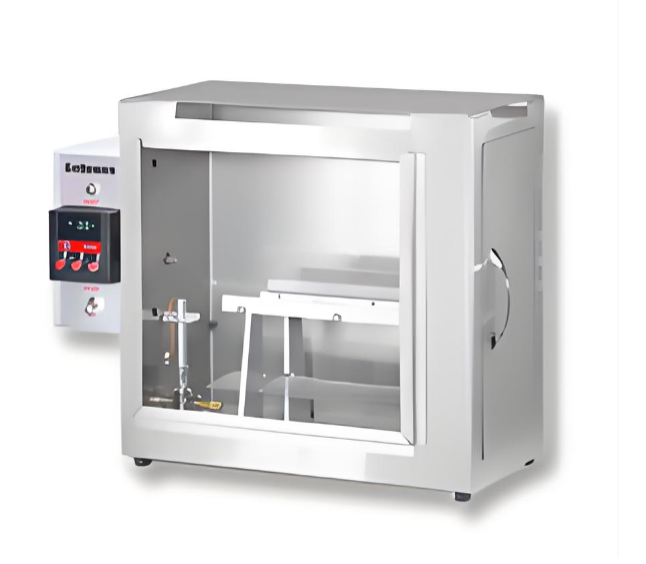

The horizontal flammability tester(Horizontal Flammability Test Chamber)is a device used to evaluate the combustion performance of materials. It simulates the effect of a flame on a sample in a horizontal direction, observing and recording the combustion phenomena, and measuring key parameters such as the burning rate, flame spread time, and flame retardant properties of the material. This device is widely used in fields such as textiles, plastics, and building materials, and is an important tool for product quality control and safety assessment.

Features:

A. Cabinet constructed of all stainless steel (#316) withstands high temperature and high pressure.

B. Vacant tympanic membrane structure provided with steel springs and the damping system, which makes the operation stable.

C. Provide sample holder and door type burner.

D. Basic mode provides manual timing controller.

E. Sample holder can be move up and down and side to side.

F. Automatic gas control system including electromagnetic control gas valve, automatic ignition timer and controller.

Apparatus：

A. Automatic gas control system x1.

B. DIN 75200 (automotive trim materials) testing accessory, including burner x1. burning nozzle x2.

C. SAE J369 (polymer interior materials) testing accessory, including burner x1. burning nozzle x2.

D. ASTM D5132 (motor vehicle polymer interior materials) testing accessory, including burner x1. burning nozzle x2.

E. Other testing, burner x1. burning nozzle x2.
