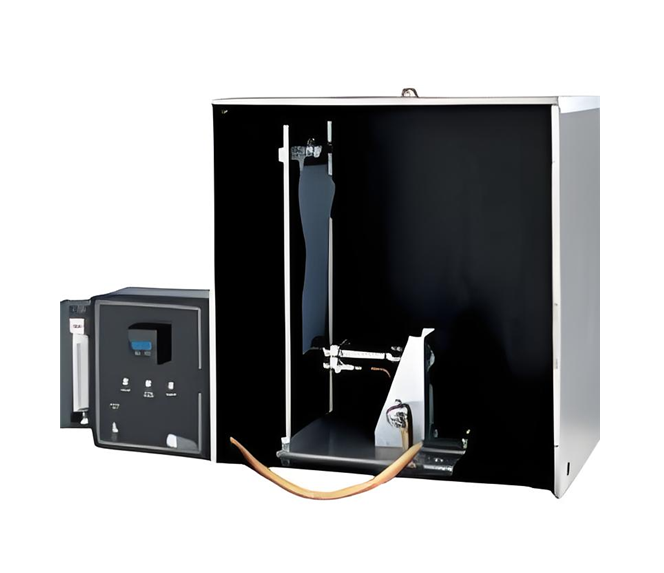

Curtain Flammability Tester
BACK
Standards:
National Fire Protection Association NFPA 701: 2004 & 2009 Edition Test Method 1
Applications:
It’s suitable for fabrics and curtains or barrier material of windows. Also it’s suitable for single or multi-layer fabric fabrics except the ones with the weight up to 700g / m2 (21oz / yd2).
Product Information:
This tester mainly based on NFPA 701 R & D and the United States NFPA 701 that provides fabric and film flame propagation test methods. It’s suitable for fabrics and curtains or barrier material of windows. Also it’s suitable for single or multi-layer fabric fabrics except the ones with the weight up to 700g / m2 (21oz / yd2).
Features：
1. Open type box structure, calcium silicate board box, External wrapped in stainless steel, elegant appearance with great anti-corrosion performance.
2. Meker Burner.
3. Electronic automatic ignition.
4. Automatically set the gas release time of 20s and the standard burning time.
5. Accuracy of the timer is 0.1s.
6. Provide standard sample holder.
7. The height of flame is adjustable, includes a flame temperature measuring device.
Technical Parameters：
| Parameter | Specification |
|---|---|
| Test Chamber Dimensions | 675mm (L) × 500mm (W) × 700mm (H) |
| Control Interface | Intelligent touchscreen (report printing) |
| Flame Height | 100mm (adjustable) |
| Burner Type | Meker (Fisher) burner |
| Ignition Mode | Automatic |
| Exhaust System | Automatic emission control |
| Combustion Timer | 0.1s precision |
| Power Supply | 220V, 50Hz |
| Dimensions | 900mm (L) × 700mm (W) × 850mm (H) |
| Weight | 70kg |
FAQs：
1. What is a Curtain Flammability Tester used for?
It is used to evaluate the flammability and burning behavior of curtain fabrics.
2. What does the tester measure?
It evaluates ignition, flame spread, burning time, and other flammability characteristics.
3. Why is curtain flammability testing important?
It helps assess fire safety and ensure curtain materials meet applicable safety requirements.
4. What materials can be tested?
It is mainly suitable for curtains, draperies, and related textile fabrics.
5. Can the test conditions be controlled?
Yes. Flame exposure time and other test conditions can be controlled according to the applicable standard.
