Velcro fatigue tester
BACK
Standards:
DIN-3415、SATRA TM123、ISO 22776、GB/T 3903.20、GB/T 3903.21、GB/T 23315-2009
Applications:
Velcro Fatigue Tester is designed for opening and closing the hook and loop fasteners, A hook and loop fastener is repeatedly opened and closed for a specified number, and then is rolled by a roller to the hook side and the loop side to stick closely so as to determine the adhesive force and strength. This machine has a memory function. You can adjust the force applied to the specimen by adjusting the counterweight and load.
Product Information:
The Velcro fatigue strength tester is a device specifically designed to test the adhesive strength of Velcro (hook and loop fasteners) after repeated peeling and bonding.
Standards:
DIN 3415-1-1990: Textile touch-and-close fasteners – Requirements for fabric adhesive zippers.
GB/T 3903.21-2008: Footwear – Test method for fastening tape shear strength before/after repeated opening/closing.
ISO 22776-2004: Footwear – Test method for attachments (fastening shear strength after repeated closures).
JSB 39-1993: Military-grade nylon fastening tape specifications.
DIN EN 12242-1999: Contact locks – Determination of peel strength.
GB/T 23315-2009: General fastening tape standards.
Technical Parameters:
| No. | Item | Specification |
|---|---|---|
| 1 | Wheel Diameter | Previous wheel: φ162.5mm; Next wheel: φ160mm |
| 2 | Wheel Width | 70mm |
| 3 | Rolling Speed | 60 rpm/min |
| 4 | Fixture Slot | Width: 4mm; Length: 55 ± 2mm |
| 5 | Reverse Time | 30s reverse |
| 6 | Test Cycles | 5000 times |
| 7 | Load | 5kg |
| 8 | Counter | LCD liquid crystal display, 0–999999 |
| 9 | Motor | AC 1/8HP dual-frequency motor |
| 10 | Instrument Material | Stainless steel |
| 11 | Surface Treatment | Painting |
| 12 | Dimensions | 70 × 47 × 60cm |
| 13 | Weight | 51kg |
| 14 | Power Supply | AC220V, 50Hz, 5A |
Standard configuration:
Velcro fatigue testing machine 1 Taiwan
5kg weight 1
Power cord 1
Features:
1. Determine, opening and closing strength;
2. Digital reading;
3. Construction, in compliance with the standards ;
4. Velco Strips Test weights are supplied with tester;
5. Can be used with every kind of Velcro strips;
6. Rotation – Meter provides the pre-determined number of tests;

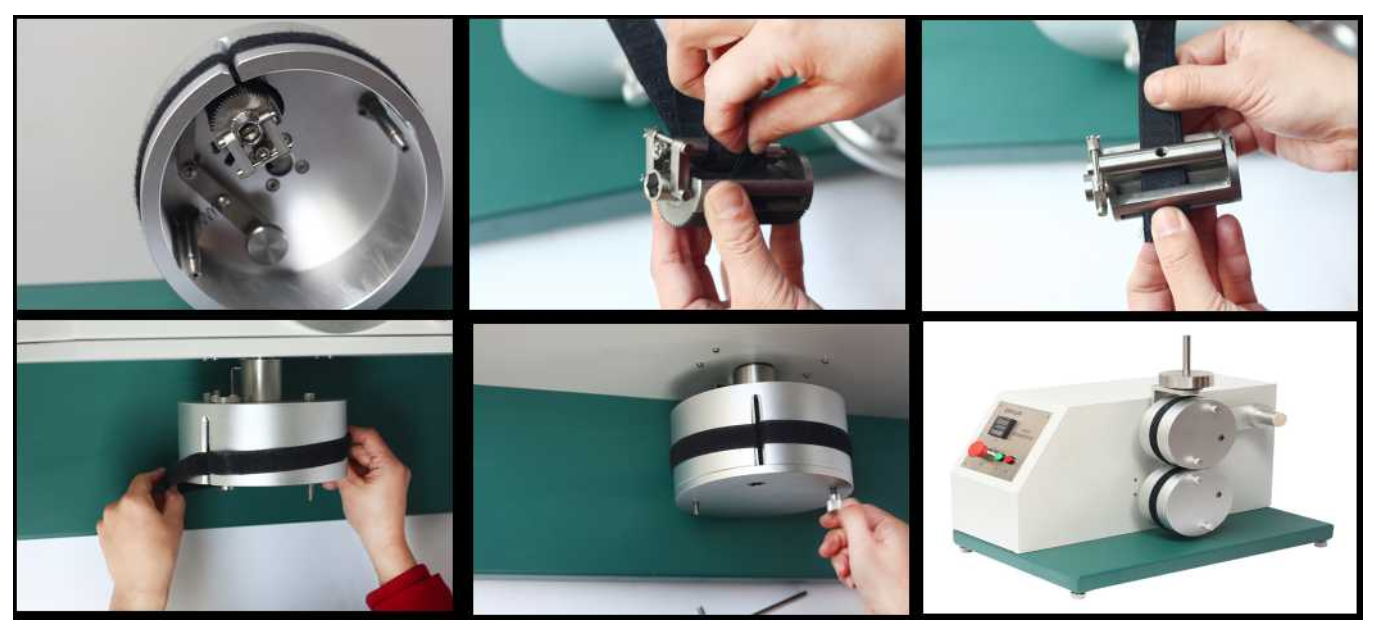

Product Display:
