What is a five-claw buckle pull tester?

Five-claw buckle pull tester is a test equipment used to test the tensile performance of five-claw buckles (also known as five-claw hooks). Five-prong buckle is a connector commonly used in clothing, luggage, footwear and other products to connect two or more parts, such as zippers, straps, etc. The pull tester is used to evaluate the strength and durability of the five-claw buckle by applying a pulling force.





1. Tension mechanism:

The tension mechanism is the core part of the tester, which is used to apply tension and record relevant data. It usually includes an electric motor or hydraulic system, and a clamp or clamp to hold the five-claw button sample and apply tension. The pulling force mechanism can adjust the applied pulling force size and speed according to needs, so as to simulate the pulling force conditions in actual use.



2. Control system:

The control system is used to control the operation and test parameters of the tension mechanism. It can include touch screen, buttons, knobs and other user interfaces for setting test parameters such as pull force magnitude, test speed, number of tests, etc. The control system can also record and display test data, such as maximum pulling force, breaking point, pulling force curve, etc.




3. Data recording and analysis system:

The data recording and analysis system is used to record and analyze the results of the tensile test. It can store test data in internal memory or external storage medium, and provide data output interface, such as USB, RS232, etc. In addition, the data recording and analysis system can also provide data analysis functions, such as generating test reports, drawing tension curves, etc.

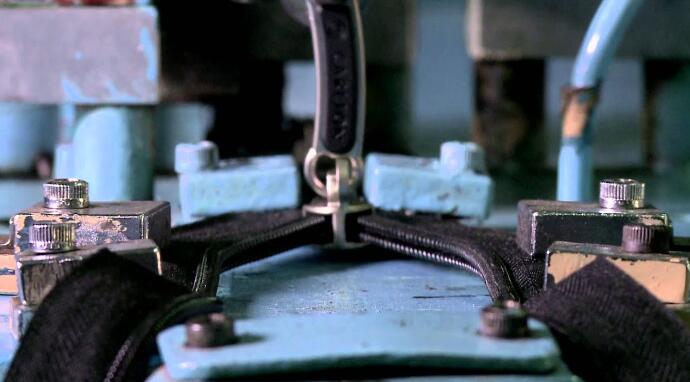

When using the five-claw button pull tester for testing, first install the five-claw button sample on the jig or fixture to ensure that it is in the correct test position. Then, set the required pulling force and testing speed through the control system. After the test starts, the tension mechanism will apply tension to the sample until the sample breaks or reaches the set termination condition. After the test is completed, the test results can be obtained through the data recording and analysis system, and further data analysis and evaluation can be performed.



The test results of the five-claw buckle tensile tester can be used to evaluate the strength, durability and quality of the five-claw buckle to ensure its reliability in actual use. These test results can help manufacturers and quality control personnel to understand the performance of five prong clasps, and carry out product improvement and quality control as needed. In addition, the five-claw buckle pull tester can also be used to verify whether the five-claw buckle meets the requirements of relevant standards and regulations.
