G034 Fabric Thickness Tester Operation
2024/01/09
Share:

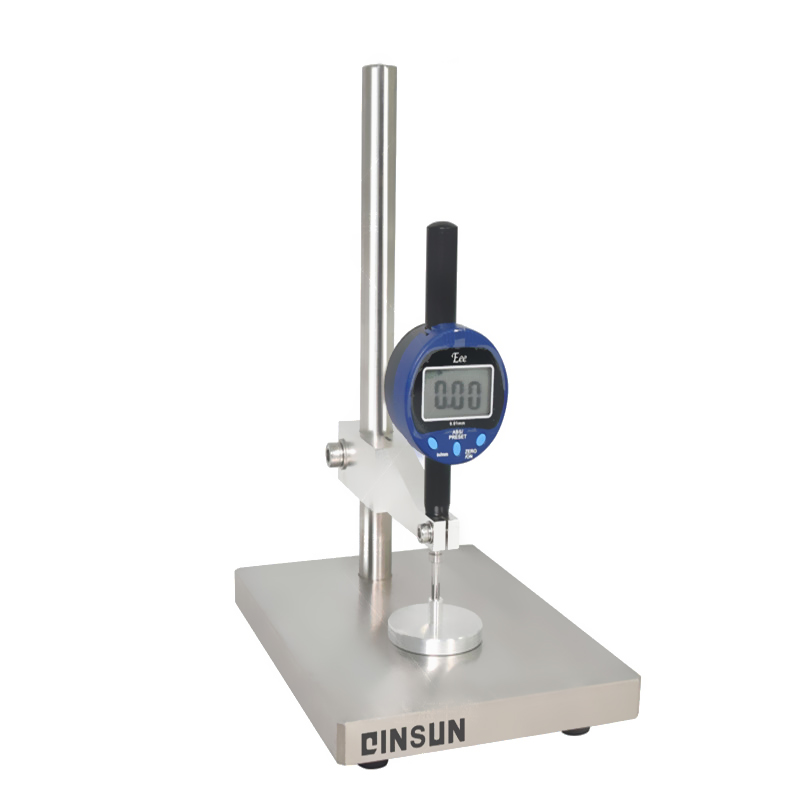

G034 Fabric Thickness Tester is used for measuring the thickness of various woven fabrics,knitted fabrics,non-woven fabrics,and geotextiles,and can also be used for measuring the thickness of other uniformly thin materials.
Compliant with standards:
GB/T 3820-1997
Technical parameters:
1.Measurement thickness range:0.1~10(mm);
2.Small scale value:0.01(mm);
3.Pressure foot area:1002000250010000(mm2);
4.Pressure foot diameter:11.28,50.46,56.42112.84(mm);
5.Weighting time:10s,30s;
6.Pressure foot descent speed:1.89(mm/s);
7.Measurement speed:After 10 seconds of pressing,it is about 2.1(times/minute),and after 30 seconds of pressing,it is about 1.2(times/minute).
Operation:
1.Firstly,prepare the accessories and test samples;
2.Install the digital display meter on the instrument and tighten it in place;
3.Install the presser foot on the instrument platform and tighten it in place;
4.Reset the numerical value of the digital display meter to zero;
5.Place the test sample under the pressure foot of the instrument;
6.Load the pressurized weight onto the presser foot;
7.The digital display shows the thickness of the sample;
8.Remove the weights and samples;
9.Change to another thickness of fabric and apply different pressures,then perform another measurement;
10.Place the test sample under the pressure foot of the instrument;
11.Load the pressurized weight onto the presser foot;
12.The digital display shows the thickness of the sample;
13.The instrument can replace the pressure foot and pressure weight according to the different measured objects,and the digital display range and accuracy of the equipment can be selected.
