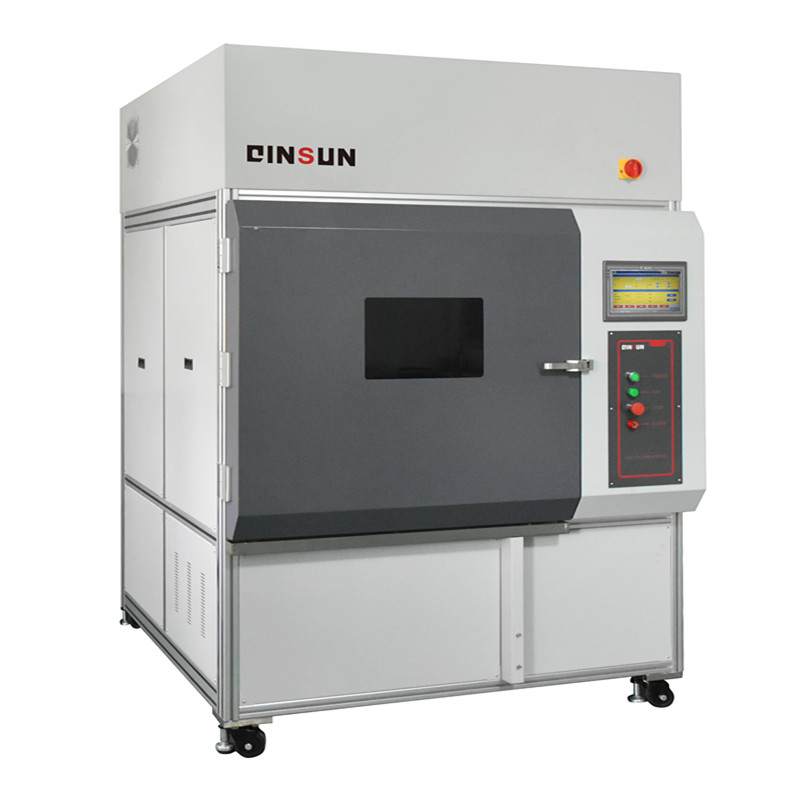

Si4000 water-cooled sun fastness tester operation
2024/01/23
Share:
The water-cooled sun fastness tester is mainly used for testing automotive materials,plastics,paints,packaging,solar photovoltaic,textile industries including geotextiles,pigments,stabilizers,additives,etc.
Operation:
Prepare all accessories and test samples;
Step 1:Install the xenon lamp;
Step 2:Load the sample into the fixture;
Before the experiment,install the prepared xenon lamp into the instrument;
Turn on the power switch;
Enter the LCD screen operation interface and set manual testing;
Open the instrument safety door;
Select manual rotation of the specimen holder;
Hang the prepared sample fixtures on the top and bottom three layers of the rack(no more than 65 sample fixtures);
After transferring the sample,close the instrument safety door;
Set parameters such as irradiance,temperature,humidity,and time;
Load and enter the running interface;
Everything is ready,click run;
The xenon lamp lights up and begins to simulate full spectrum sunlight,illuminating the sample;
During equipment operation,both green lights are on simultaneously;
On the LCD screen,you can view curves such as temperature,humidity,and irradiance;
When the set time is reached,click the stop button;
Open the safety door;
Select manual rotation of the specimen holder;
Remove the fixture containing the sample;
Observe and compare the samples;
After taking the sample,close the safety door;
Turn off the instrument and end the test;
The instrument test is completed,and the sample is taken for analysis and comparison to evaluate the aging resistance of the material.
