automotive sealing strip wear resistance testing machine
2024/03/19
Share:

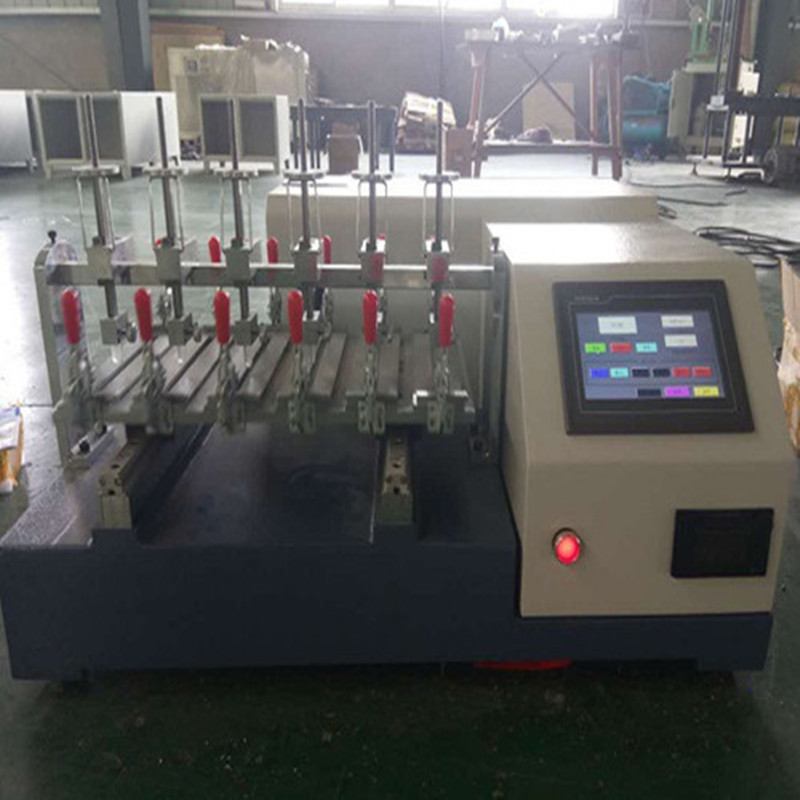

The automotive sealing strip wear resistance testing machine is used to test the wear resistance of various automotive fluff and coated groove sealing strips,as well as sponge coated door frame sealing strips,door sealing strips,luggage sealing strips,etc.It is widely used in the automotive production industry and its supporting enterprises.
Applicable standards:
The PV3313 wear standard in German Volkswagen Technical TL52057,TL52417,and the PV3366 wear standard in TL52641 Technical Standard;
Chinese Automotive Industry Standard QC/T711-2004 Automotive Sealing Strip Flocking Wear Resistance Test Method;
National standard GB/T21282-2007 Rubber and plastic sealing strips for passenger cars and other types of automotive sealing strips wear test standards.
Main parameters:
1.Type:6-hammer electric type;
2.Test piece:Take samples from various sealing strip products;
3.Load capacity:250g,325g,500g,1000g,3000g(various counterweights can be customized according to standards);
4.Wear stroke:0-160mm;
5.Adjustable height of wear head:0-50mm;
6.Adjustment range of wear speed:0-90 times/minute;
7.Counter:0-999999 times;
8.Volume:1020X850X630mm;
9.Net weight:Approximately 160KG.
