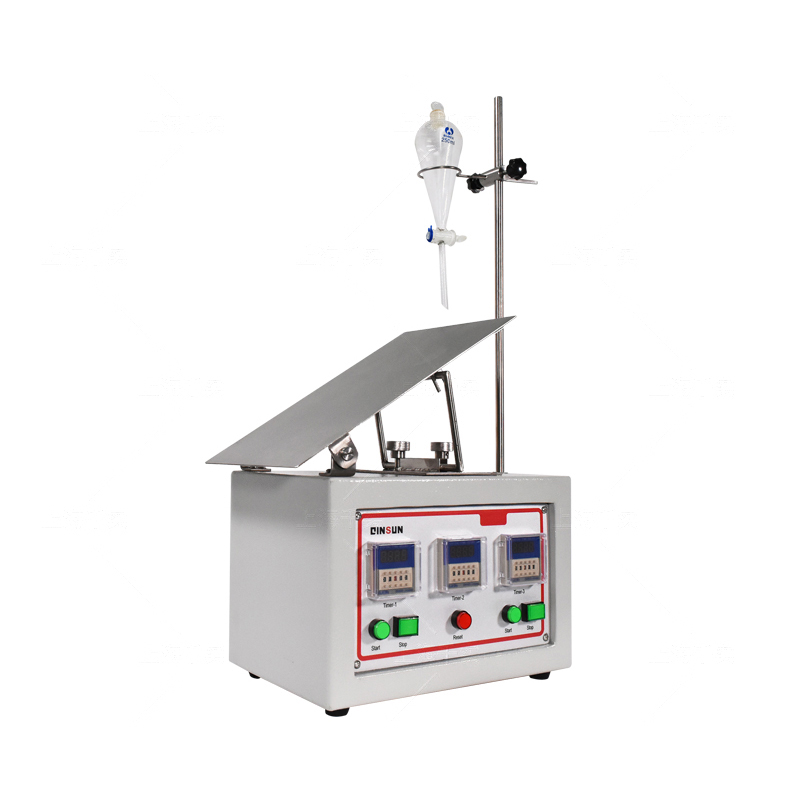

Diaper penetration performance tester parameters

　　The paper diaper penetration performance tester is used for testing the absorption rate, backflow rate, and leakage rate of various children, adults, and other paper diapers and paper diapers. It is applied to sanitary product factories, national quality inspection centers, third-party testing institutions, and other units.

　　Reference standard:

　　GB/T 28004-2021 Diapers (Pieces, Pads)

　　QB/T 2493-2000 diapers (including diaper pads)

　　GB/T 8939-2008 Sanitary napkins (including sanitary pads)

　　Main parameters:

　　1. Standard discharge funnel: 250mL;

　　2. Measuring cylinder: 500mL

　　3. Sample table inclination angles: 10 °, 25 °, and 30 °;

　　4. Pressure block: ¥ 100mm, weight (1.2 ± 0.002) kg (capable of producing a pressure of 1.5kPa);

　　5. Timing: 0-99.99s.

　　6. Standard funnel:

　　A: Volume 80mL, used for testing baby diapers/pads/pads

　　B: Volume 150mL, used for testing adult diapers/pads/pads

　　C: 60ml capacity, used for sanitary napkin testing
