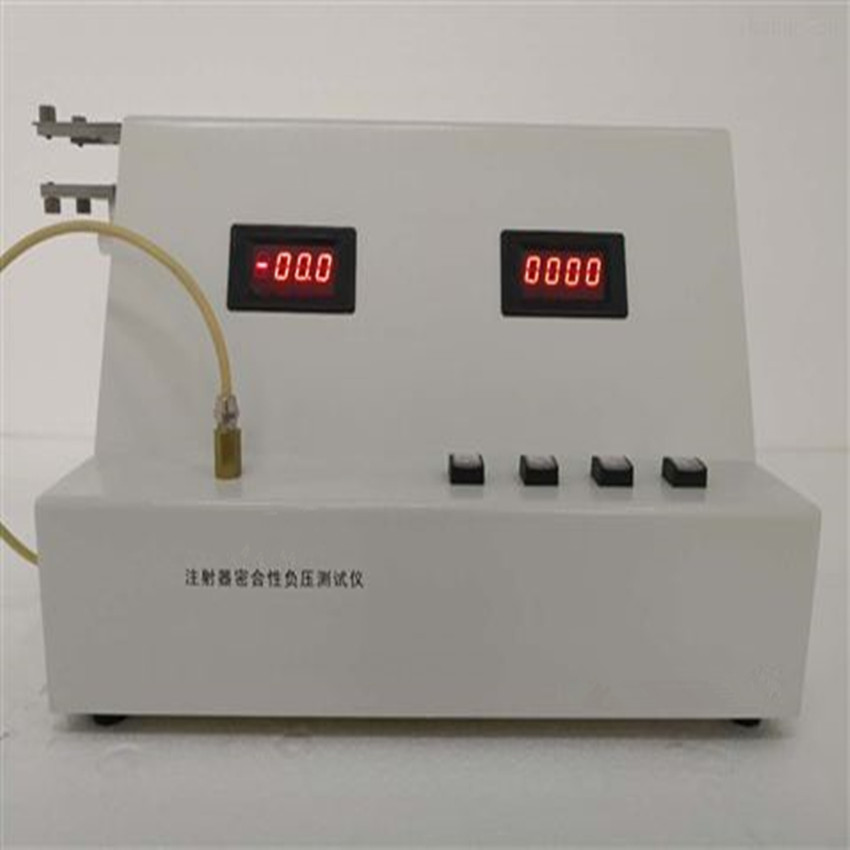

Medical syringe sealing negative pressure tester standards

2024/04/12

　　The negative pressure tester for medical syringe sealing is mainly used to test the physical characteristics of syringe body sealing, and is one of the important means to identify the sealing of medical syringe bodies. It is suitable for infusion sets, blood transfusion sets, infusion needles, anesthesia bags, pipelines, catheters, filters, quick connectors, etc.

　　Compliant with standards:

　　YY0053-2008, GB 15810-2019, ISO7886-1:2017, ISO 7886-1, ISO 8537-2016, YY0497-2018

　　Technical features:

　　Composed of PLC programmable controller, pressure sensor, control mechanism, etc., it is easy to operate. Real time display of pressure value and holding time, automatically ending the test. High brightness LED digital display; The pressure output value can be set arbitrarily, and the calibration error should not exceed ± 1% of the reading.

　　Technical indicators:

　　Operation interface: Simplified Chinese, English

　　Negative pressure detection: -88Kpa, error not greater than ± 0.3Kpa, LED digital display;

　　Negative pressure output: -88Kpa ± 0.3Kpa;

　　Detection range: -5 Kpa to -99 Kpa adjustable.

　　Test duration: Any setting from 1 second to 9999 seconds, LED digital display, with an error not exceeding 0.1 seconds;

　　Power supply: AC220V, 50Hz

　　Overall power: 60W
