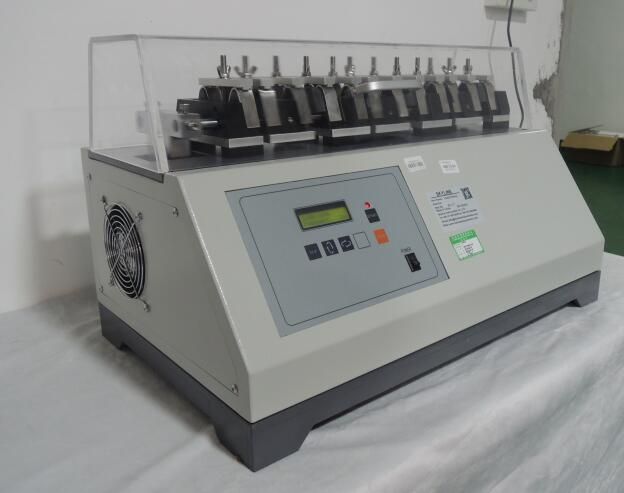

Leather Vamp Flexing Extensibility Testing Machine

The Leather Vamp Flexing Extensibility Testing Machine is a highly specialized and indispensable instrument meticulously designed to determine the propensity for flexible materials, particularly those used in footwear uppers, to crack or otherwise fail at flexing creases. Beyond assessing material integrity, it can also be used to evaluate whether leathers are likely to produce salt spue. This advanced tester precisely simulates the demanding conditions experienced in the vamp part of footwear during walking, providing critical insights into material performance and longevity.

Key Features & Benefits:

Simulates Real-World Walking Conditions: Specifically replicates the stretching, squeezing, and bending forces experienced by the shoe vamp during walking, providing highly relevant and predictive results.

Dual Failure Assessment: Determines both the propensity for cracking/failure at flexing creases and the likelihood of salt spue production in leathers.

Versatile Material Compatibility: Applicable to a broad spectrum of flexible materials used in footwear uppers, including leathers, coated fabrics, and textiles.

Precise & Consistent Flexing: Utilizes a controlled oscillating motion with a fixed stretching distance of (19 ± 0.5) mm and a consistent scaling speed of (300 ± 30) CPM for reproducible testing.

High Throughput: Capable of testing 12 samples simultaneously, significantly increasing testing efficiency and throughput for busy laboratories and production environments.

Standardized Fixture: Features a precise 40° V-shape fixture with a 6.4mm (R) radius, ensuring consistent and compliant sample mounting.

Digital Accuracy: Equipped with a 6-digit LCD digital display counter for accurate tracking of test cycles.

Compact & Efficient Design: With approximate dimensions of (55x35x30) cm and a weight of approx. 60kg, the machine is designed for efficient use of laboratory space.

Power-Off Memory Function: Ensures test progress is saved in case of power interruption, preventing loss of valuable test data.


Comprehensive Standards Compliance:

Our Leather Vamp Flexing Extensibility Testing Machine is engineered to meet and exceed a wide range of critical international and national standards, ensuring your test results are globally recognized and highly reliable:

EN ISO 20344-2004 Section 6.5.2 (Personal protective equipment - Test methods for footwear - Flexing test)

EN ISO 22288 (Leather — Physical and mechanical tests — Determination of resistance to repeated flexing (flexometer method))

ISO 5423 Section 5.2 (Plastics — Thermoplastic footwear — Test methods)

SATRA TM25 (Flexing resistance test method)

GB/T 20991 Section 6.5.2 (Personal protective equipment - Test methods for footwear)

AS/NZS 2210.2 Section 6.5.2 (Occupational protective footwear - Test methods)


Technical Parameters:

Stretching Distance: (19 ± 0.5) mm

Scaling Speed: (300 ± 30) CPM (Cycles Per Minute)

Specimen Size: (64 × 64) mm

Number of Samples: 12 pcs

Fixture: 40° V V-shape, 6.4mm (R)

Counter: 6-digit LCD digital display

Power Supply: 1 Φ, AC 220 V, 2 A

Volume (Approx.): (55 x 35 x 30) cm

Weight (Approx.): 60 kg

Elevate Your Footwear Quality and Durability

The Leather Vamp Flexing Extensibility Testing Machine is an indispensable investment for footwear manufacturers, leather suppliers, and material testing laboratories dedicated to producing high-quality, durable, and reliable products. By providing precise and standardized data on flexing resistance and salt spue propensity, it empowers you to make informed decisions that enhance product performance and ultimately boost customer satisfaction.
