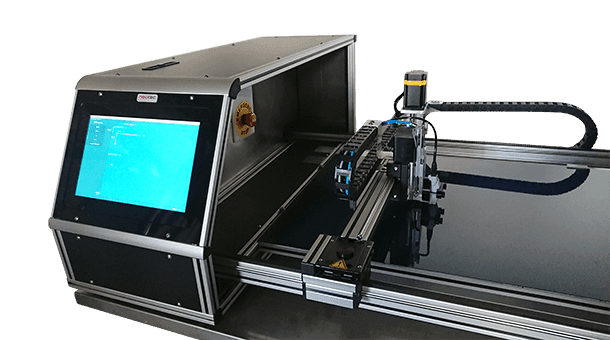

Automatic Coating Thickness Measuring Instrument: Precision and Versatility for

The Automatic Coating Thickness Measuring Instrument is a highly precise and versatile device engineered for accurately determining the thickness of various materials. Designed to meet rigorous international and national standards, this instrument provides reliable and consistent measurements for a wide range of applications, from thin films to solid electrical insulators. Its automated features and user-friendly interface make it an invaluable tool for quality control, research, and material development.

Comprehensive Standard Compliance

This instrument is built to comply with a comprehensive list of established standards, ensuring the credibility and comparability of your test results across various industries and regions:

GB/T 6672. GB/T 451.3. GB/T 6547 (Chinese National Standards)

ISO 4593. ISO 534. ISO 3034 (International Organization for Standardization)

ASTM D374. ASTM D1777 (American Society for Testing and Materials)

TAPPI T411 (Technical Association of the Pulp and Paper Industry)

JIS K6250. JIS K6783. JIS Z1702 (Japanese Industrial Standards)

BS 3983. BS 4817 (British Standards)


Key Features for Enhanced Accuracy and User Experience

The instrument incorporates several innovative features to ensure precise measurements and ease of use:

Standard-Compliant Design & Customization: Strictly adheres to standard designs for contact area and measurement pressure, while also offering support for a variety of non-standard customizations to meet specific testing needs.

Automated Measuring Head: The measuring head automatically rises and falls during the test, effectively eliminating human error and ensuring consistent pressure application.

Flexible Measurement Modes: Supports both automatic and manual measurement modes, providing users with the flexibility to choose based on their testing requirements.

Configurable Automatic Injection (Optional): When equipped, the system allows for automatic injection, with adjustable parameters such as injection step, measuring points, and injection speed, offering greater control and automation for repetitive tasks.

Real-Time Data Analysis: Displays real-time analysis data including maximum value, minimum value, average value, and standard deviation of measurement results, facilitating immediate assessment and judgment.

System Calibration with Standard Block: Configured with a standard measuring block for system calibration, ensuring high test accuracy and data consistency over time.

Practical Data Functions: Supports many practical functions like real-time data display, automatic statistics, and printing, enabling users to obtain and manage test results easily and quickly.

Intuitive 5-inch Touch Screen Control: Features a 5-inch touch screen for convenient operation and clear viewing of test data.

Standard USB Interface: Includes a standard USB interface for easy external connection and data transfer between the system and a computer, streamlining data management.


Broad Test Applications

This versatile instrument is suitable for a wide array of materials, offering both basic and extended application capabilities:

Basic Applications:

Films, Wafers, Diaphragm Paper, Cardboard: Ideal for precise thickness measurements in packaging, electronics, and paper industries.

Foils, Silicon Sheet Metal Sheets: Essential for quality control in metallurgy and semiconductor manufacturing.

Solid Electrical Insulators of Textile Materials: Critical for evaluating insulating properties in textiles.

Non-woven Materials: Such as diapers, sanitary napkins, and other absorbent products where thickness uniformity is key.

Extended Applications (Special accessories or modifications required):

Extended Measuring Range: The measuring range can be extended to 5 mm and 10 mm, making it suitable for testing the thickness of thicker films and sheets.

Curved Measuring Head: An optional curved measuring head is available for thickness testing on special occasions where flat contact is not possible.

This Automatic Coating Thickness Measuring Instrument provides a robust, accurate, and adaptable solution for all your material thickness measurement needs.
