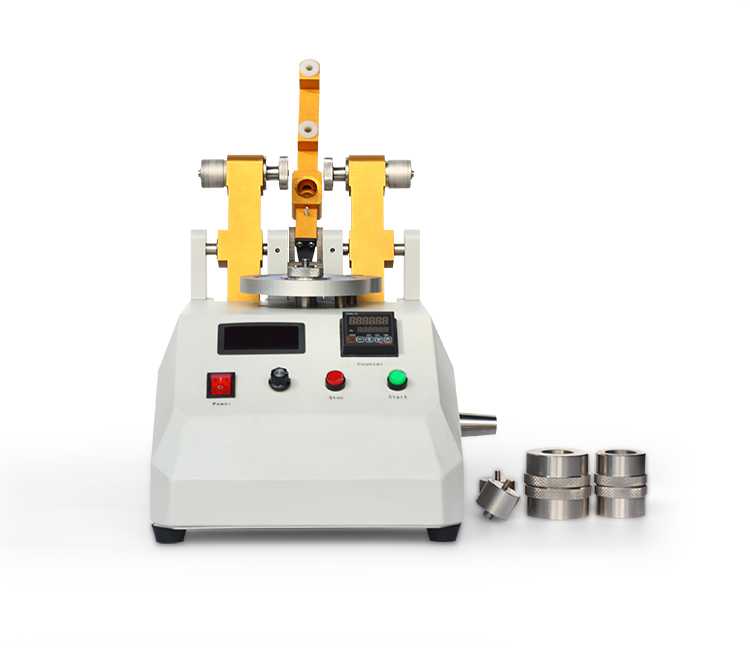

How does the Abrasion Resistance Tester work?

The main types of Abrasion Resistance Tester are disc grinders, rotary shaft grinders and various special grinders.



There are two types of disc mills: single disc and double disc, and the application of double disc mill is the most common. On the double-disc grinding machine, multiple workpieces are placed in the cage between the upper and lower grinding disks at the same time, and the cage and the workpiece are driven by an eccentric or planetary mechanism to move in parallel with the action plane. The lower grinding disc rotates, and the upper grinding disc parallel to it can not rotate, or rotate in the opposite direction with the lower grinding disc, and can move up and down to press the workpiece.

In addition, the upper grinding disc can also be rotated around the column with the rocker arm at an angle for loading and unloading workpieces. The double disc grinder is mainly used to process two parallel surfaces, one plane, outer cylindrical surface and spherical surface, etc. When machining the outer cylindrical surface, because the workpiece needs to slide and roll, the cage hole groove type and arrangement angle must be reasonably selected.



The single-disc grinding machine has only one lower grinding disc, which is used to grind the lower plane of the workpiece, so that the workpieces with different shapes and sizes can be processed on the same disc, and the grinding precision is high. Some grinders also have a mechanism that automatically corrects the grinding disc during grinding.



The rotary shaft grinder is driven by the positive and reverse rotating spindle to drive the workpiece or the grinding tool to rotate. The structure is relatively simple, and it is used to grind the inner and outer cylindrical surfaces.



Special grinders include center hole grinders, steel ball grinders and gear grinders, depending on the workpiece to be ground. In addition, there is a centerless grinder that uses a similar centerless grinding principle for grinding cylindrical workpieces.



Standard Group is an Abrasion Resistance Tester manufacturer with many years of experience. Customers have a good reputation. If you have friends who want to buy, please leave us a message!
