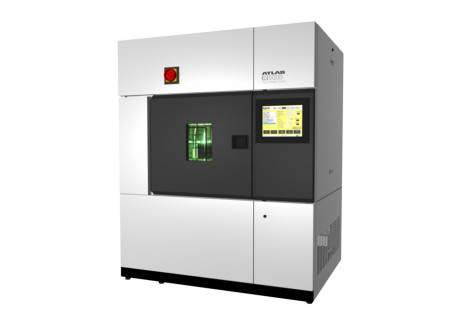

UV aging chamber with straight tube mercury lamp

Straight tube mercury lamp UV aging box B/T 16777-2008 building waterproof coating test method in 500W straight tube mercury lamp UV test technical requirements.



Adopted light source.



500W ultraviolet high-pressure mercury lamp a



Technical indicators.



1, Model: ZN-G



2, studio size: W600 × D500 × H700 (mm)



3、Wavelength peak: 365nm



4、Lighting temperature range：40～60℃

5、Dark temperature range: 30～60℃



6, the lamp is parallel to the bottom of the box, and the distance between the surface of the test piece is (47 ~ 50) cm



7, temperature control mode: microcomputer PID self-tuning temperature control mode (China Taiwan imported 4.3-inch color LCD touch screen controller)



8, timing device: maximum timing 9999H.



9, function selection: including continuous and cyclic selection, select the cyclic function when the light and dark time adjustable.



Related introduction.



1, UV box contains UV irradiation, darkness cycle function, the user can set two kinds of function time; test total time with power failure hold function, automatically resume operation after the call. The machine uses 500W ultraviolet high-pressure mercury lamp as the light source, through the simulation of natural sunlight in the state of ultraviolet radiation (such as 45 ℃) conditions on the material to accelerate the weathering test to obtain the results of material weathering. The effective service life of the lamp can be about 1000 hours.



2、Constant temperature structure design, user-friendly operation.



Related configuration.



1, 500W high-pressure mercury lamp, with lamp work timer for the replacement of the lamp



2、Additional configuration: two 300W high-pressure mercury lamp



3, a stainless steel sample rack



4, including a set of refrigeration cooling system



Safety protection system.



1、Electricity leakage



2, short circuit



3, over temperature



4, power failure memory and other protection



Use conditions.



1、Ambient temperature: 5℃～30℃



2、Ambient humidity: ≤85%R.H



3, power supply voltage: AC220V/50HZ two-phase three-wire system



4, the machine is placed before and after the left and right 80 centimeters can not place things.
