AATCC 201 Fabric Drying Rate Tester

2022/09/27

Share:

Share

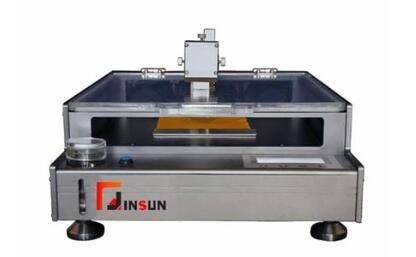

Fabric drying rate tester/fabric quick drying tester is mainly used to test the drying time and drying rate of fabrics under the requirements of AATCC201 standard to evaluate the quick drying performance of fabrics.


Standards compliant:

AATCC 201

Test principle:

The tester simulates the drying process of sweat on the cloth when the human body sweats. The cloth is placed on a heating plate with a constant temperature of 37°, and 0.2ml of water is dropped on the heating plate. There is a wind speed of 1.5m/s on the cloth. Dry. Use the infrared temperature sensor to test the change of the cloth temperature to determine whether the cloth is finished drying, and obtain the drying speed according to the test drying time.
/fabric quick drying tester is mainly used to test the drying time and drying rate of fabrics under the requirements of AATCC201 standard to evaluate the quick drying performance of fabrics.
Technical parameters of fabric drying rate tester/fabric quick-drying tester:

1. Heating plate: 305mmX305mm;

2. Metal plate: 150mm×40mm×20mm;

3. Heating plate temperature: 37±0.1°C;

4. Temperature display resolution: 0.01°C;

5. Wind speed: 1.5m/s±0.1m/s;

6. Infrared temperature sensor: 15——50°C±0.1°C;

7. Test fabric thickness: 0—10mm;

8. Drip volume: 0.2ml±0.001mL (adjustable);

9. Data transmission: wireless WiFi;

10. Power supply: AC220V±10%, 100W or AC110V±10%, 100W;

11. Dimensions: 520(L)×400(W)×260(H)mm;

12. Weight: about 30kg.

After-sale service:

1. We have an after-sales service team. The company has been engaged in the testing industry for more than ten years and has accumulated rich practical experience;

2. Be able to deal with various problems in a timely and fast manner, so as to relieve customers' worries;

3. Spare parts are available to solve the trouble of long delivery time for ordering parts;

4. Provide outsourced maintenance services;

5. * Supply all kinds of common testing instruments;

6. We keep up with the update of industry standards and provide testing instruments that meet the updated standards in a timely manner.
