What are the product features of the Wire and Cable Fire Resistance Tester?

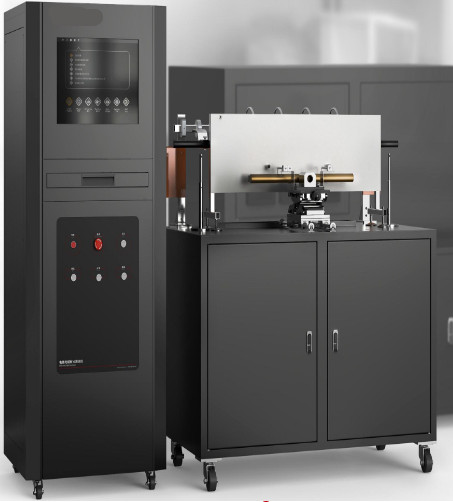

The wire and cable fire resistance tester is used to test the circuit integrity of cables exposed to flames when the flame temperature reaches at least 750°C under the following measurement conditions.



Standard number: IEC 60331.11.21, GB/T19216



Application field:

Wire and Cable



Detection purpose:

Flammability

Industry Standard:

ISO International Organization for Standardization GB Chinese Standard



What are the product features of the Wire and Cable Fire Resistance Tester?



1. Steel structure box, frame structure, stable, beautiful and generous

2. Combustion device and control box, gas distribution cabinet, power distribution cabinet are designed separately, which is convenient for the laboratory to arrange and ensure the safety of the equipment.

3. The heat source is a ribbon propane burner blowtorch, and its nominal nozzle length is 500mm

4. Three rows of combustion holes are arranged staggeredly. The average width of the front end of the burner is 15mm, the hole diameter is 1.32mm, and the hole center distance is 3.2mm. A row of guide holes are set on both sides of the nozzle to keep the flame burning

5. The position of the burner torch is not less than 200mm from the bottom of the combustion box. The height of the burner can be adjusted up and down to meet the test requirements of samples with different wire diameters, and the distance from the box wall is not less than 300mm.

6. The horizontal axis of the burner is 70±10mm from the lower end of the cable sample, and the longitudinal axis of the burner is about 45mm from the vertical axis of the cable.

7. According to customer needs, it can be equipped with MFC or high-precision rotor flowmeter to provide gas and auxiliary combustion air to the blowtorch

8. Equipped with venturi to fully mix air and gas to meet combustion needs

9. Equipped with brand pressure gauges and pressure regulating valves to adjust the gas pressure, equipped with solenoid valves to control gas on and off, to ensure the safety of equipment use.

10. High-voltage pulse automatic ignition, stable ignition, safe and reliable

11. The cable sample is supported by two metal rings, the middle length is about 300mm, and other connecting parts are used outside the two metal rings. The inner diameter of the metal ring supporting the sample is 150mm, and the cross-sectional diameter of the ring is 10±2mm

12. Two thermocouples (A, B) are installed horizontally on the left and right sides 45mm away from the center line of the burner, and check that the flame temperature is within 750+50°C

13. The position of the thermocouple rack can be adjusted in the horizontal and height directions

14. There are two operating modes, the manual mode is controlled by the panel, and the automatic mode is controlled by the computer software

15. Computer + professional software control and guide the test process, easy to operate, safe and reliable.
