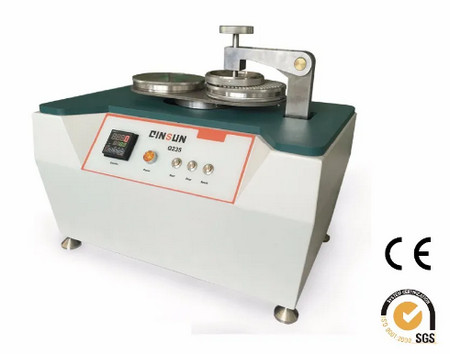

YG502-YG502 Fabric Pilling Tester

YG(B)502 Fabric Pilling Tester is usually called a disc-type pilling tester, which is used for testing various fabrics that are prone to pilling.



[Scope of application]: It is used for the pilling test of various fabrics such as wool fabrics, knitted fabrics, woven fabrics, chemical fibers, pure spinning, and blended fabrics.

[Related Standards]: GB/T4802.1-1997 DIN 53863.2



[Test Mode]: According to the specified method and experimental parameters, use a nylon brush or a single abrasive to make the fabric rub and pill. Then, under the specified lighting conditions, compare the sample after pilling to evaluate the pilling level.



[Basic Technical Specifications]:

1. Pilling trajectory: a circular trajectory with a diameter of 40mm.

2. Adjustable brush: Use nylon brush with adjustable effective height.

3. Sample pressure: the pressure of chemical fiber fabric is 590cN;

Combed wool fabric pressure is 780cN;

The carded wool fabric pressure is 490cN.

4. Specimen specification: a circle with a diameter of 112.8 mm and an area of 100 square centimeters.

5. Times selection: 1～9999 can be preset arbitrarily.

6. Sample reciprocating speed: 60 times/min

7. Power supply: AC220V 50Hz

8. Motor: Model JX5022, power 60W, speed 2800r/min

9. Dimensions: 540(L)×250(W)×345(H)mm

10. Weight: about 35Kg
