Standards:

Applications:

Product Information:

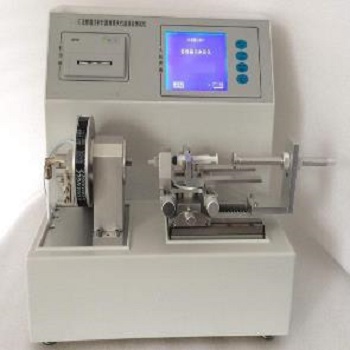

Syringe Needle Cone joint Performance Comprehensive Tester with 5.7-inch (120 × 90) single-color LCD touch screen display. The keyboard selects the nominal capacity of the syringe.  The axial force, torque, holding time, internal hydraulic pressure, separation force, and leakage rate are displayed during the test. The test result can be printed out by inbuilt printer.

Meet Standard:
GB/T 1962.1、GB/T 1962.2

Technical parameters:
Can measure the syringe connector liquid leakage, air leakage, overload, separation force, stress and  assembly many indexs.
Axial force: 1N ~ 30N, error is not greater than ± 0.2N;
Internal pressure: 200kPa ~ 400kPa, error is not greater than ± 5kPa;
Separation force: 1N ~ 30N, the error is not greater than ± 0.2N;
Hold time: 1 ~ 60s, error is not greater than ± 1s, any setting;
Torque: 0.1N? M
Nominal capacity: 1mL ~ 60mL arbitrary choice.
Net weight: 20Kg Dimensions: 440 × 350 × 384 (mm)

Part list:
1. Host  1 set
2. Printing paper 1 roll
3. Fixture  1set
4. Weight 1 set
5. Operating Instruction
