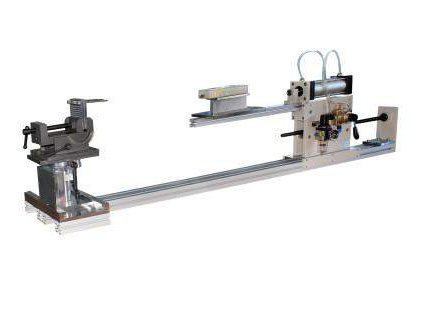

The TTF tensile testing machine is designed to provide high and stable tensile forces in tensile tests. Mostly for toys Destructive tension test; The cylinder provides power; The clamp of the specimen can be adjusted to any suitable position.


Purpose:

Collect and analyze data to assess process capability and deviation of the production process to further

To evaluate the safety and reliability of the product.


equipment Test conditions:

Room temperature: 23±2℃， humidity 20% —— 70%.

TTF test machine travel speed: 0.7±0.1in/sec.

TTF test engine air pressure: 60±10psi (4.2±0.7kgf/cm)


TTF test operation procedure:

1 Check/adjust the test environment to meet the requirements (room temperature: 23±2℃; Humidity 20% —— 70%)。

2 Check whether all components on the TTF machine are in good condition and connected/secured.

3 Open the air pressure pump and adjust the air pressure valve of the air pressure pump to make the air pressure of the air pressure pump meet the requirements (60±10psi)。

4 Adjust the pressure valve of TTF machine to make the pressure reach the requirement (60±10psi)。

5 Start the TTF machine and check whether the TTF machine is normal (such as whether the taxi is smooth, etc.)。

6 Install the tension pound and adjust the intake valve on the pneumatic machine of the TTF machine to make its travel speed reach the requirement (0.7±0.1in/sec)。

7 Position adjustment of TTF machine.

8 After alignment adjustment, secure the position.

9 Test fixture specified in the force bitmap /TTF test demonstration diagram.

10 The sample process must be placed in the required environment (room temperature 23±2℃， humidity 20% —— 70%) for 4 hours before it can be carried out.

11 Performing a Test.

12 Record the test result After the Test.


Parameter theoretical

maximum push/pull 188/168 Kgf

Maximum travel 150 mm

Speed 50-800 mm/s

Volume 1620×320×421 mm

It weighs about 81kg
