Standards:

EN1078:2023

Applications:

1. Used for marking test points and test lines on helmets.

2. Used for drawing lines according to different test standards.

​3. Used to define the upper - lower and left - right visual fields of helmets during helmet research and development.

Product Information:

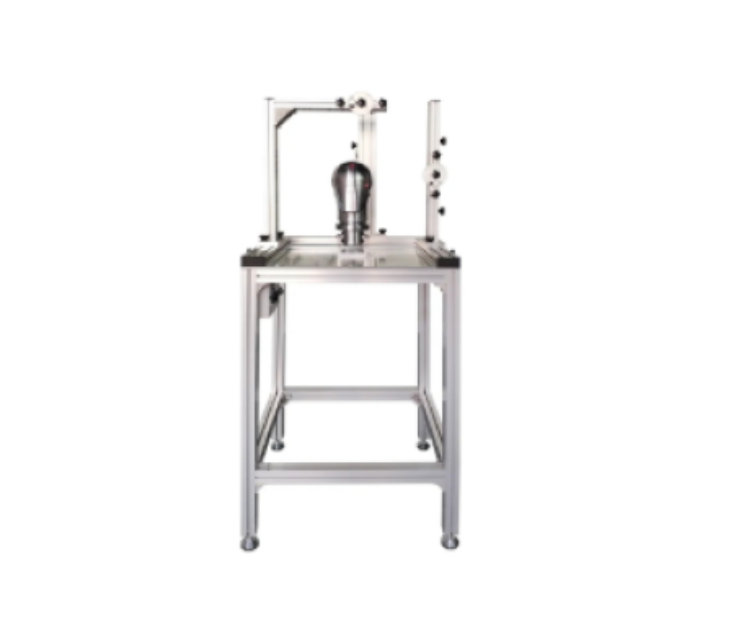

The Standard Helmet Visual Field Tester is a precision instrument designed to evaluate the peripheral vision and visor obstruction of safety helmets. It provides accurate angular measurements for upper, lower, and lateral fields of view, ensuring compliance with international helmet safety standards. This tester supports ergonomic and repeatable testing of various helmet types, including cycling, industrial, and sports helmets.

Technical Parameters

Standards

The equipment complies with international and regional safety standards:

(1) EN 1078:2023 – Helmets for Pedal Cyclists, Skateboarders, and Roller Skaters

(2) ASTM F1446 – Standard Test Method for Helmets (equivalent compliance)

(3) CE Certification (Conformité Européenne)

(4) ISO 17025 – General requirements for the competence of testing and calibration laboratories

Features

(1)High-Precision Angular Measurement: Motorized goniometer with 0.01° resolution for accurate field-of-view assessment.

(2)Comprehensive Rotational Testing: 360° rotational stage evaluates visor obstruction from all angles.

(3)Adaptive Leveling: Auto-leveling system compensates for helmet tilt during testing.

(4)User-Friendly Operation: 7” touchscreen HMI with preloaded EN 1078 sequences and pass/fail indicators.

(5)Quick-Swap Modular Head: Rapid replacement of headforms for adult, child, or custom helmets (50–65 cm circumference).

(6)Data Integrity: Built-in data logger exports results in PDF/CSV formats, SD card storage for long-term archives.

(7)Durable Construction: Aircraft-grade aluminum frame and anti-scratch visor protection withstand 5.000+ test cycles.

(8)Self-Calibrating System: Auto-tare and angular alignment checks ensure measurement reliability.

Corrosion-Resistant Frame: 304 stainless steel with epoxy coating for laboratory durability.

FAQ

1. What is a Standard Helmet Visual Field Tester?

This device is used to evaluate the wearer’s field of vision when wearing a helmet, ensuring that the helmet design does not obstruct peripheral or direct sight and meets safety standards.

2. How does the visual field test work?

The helmet is mounted on a headform or worn by a test subject, and visual field measurement tools or optical sensors map the visible area in all directions. Obstructions caused by the helmet are quantified.

3. What types of helmets can be tested?

It can test industrial safety helmets, construction helmets, bicycle helmets, motorcycle helmets, and other protective headgear that requires adequate visual clearance.

4. What parameters are measured during testing?

The tester measures horizontal and vertical field of view, blind spots, obstruction angles, and visibility limitations. Some systems provide digital mapping and visual field diagrams.

5. Why is helmet visual field testing important?

Testing ensures that helmets do not compromise wearer safety by restricting vision, allowing users to detect hazards and operate safely. Compliance with standards such as EN 397. ANSI Z89.1. or ISO is verified.
