Vacuum Low Pressure Test Chamber
BACK
Standards:
Applications:
Product Information:
This test chamber is designed to perform vacuum low-pressure (high-altitude) simulation tests by placing test samples in a negative pressure environment.
Chamber Specifications
|
No. |
Item |
Specification |
|
1 |
Inner chamber dimensions |
400 (W) × 400 (D) × 400 (H) mm |
|
2 |
Outer chamber dimensions |
Approximately 600 (W) × 500 (D) × 1200 (H) mm, subject to the actual product |
|
3 |
Internal layer structure |
One-layer inner chamber, equipped with one mesh plate |
|
4 |
Viewing window |
Tempered glass viewing window on the door; glass thickness: 19mm; size: W150 × H150mm |
|
5 |
Control panel |
Operation panel installed on the top of the machine |
|
6 |
Vacuum pump installation |
Vacuum pump built into the lower part of the machine |
|
7 |
Inner chamber material |
304# stainless steel industrial plate; thickness: 3.0mm; internal reinforcement treatment to prevent deformation during vacuum operation |
|
8 |
Outer chamber material |
Cold-rolled steel plate; thickness: 1.0mm; powder coating finish (off-white color) |
|
9 |
Insulation filling material |
Rock wool, providing excellent thermal insulation performance |
|
10 |
Door sealing material |
High-temperature-resistant silicone sealing strip |
|
11 |
Machine structure |
Integrated one-piece structure |
Vacuum System
The machine uses high-density silicone sealing strips to ensure excellent sealing performance.

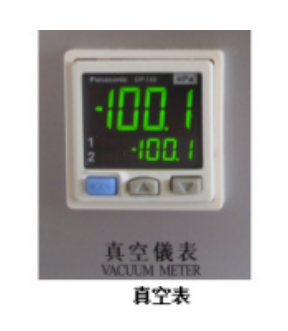

Uses a Panasonic digital vacuum gauge to display the relative vacuum level inside the chamber.
Vacuum holding timer:
After the required vacuum level is reached, the vacuum holding timer can be activated for timing control. When the preset time is reached, an alarm will be triggered. If not required, the function can be turned off.
Vacuum control method:
Automatic control mode. When the preset vacuum level is reached, the vacuum pump automatically stops. When the vacuum level drops below the lower limit, the system automatically starts again and operates cyclically to maintain the required vacuum level.
Pressure release method:
Manual pressure release after the test is completed or when removing products.
Vacuum range:
0 to -93.0KPa. The displayed vacuum value varies depending on the region.
(-100.0KPa available as an optional configuration)
Pressure display method:
Relative pressure display. For example, when the required test vacuum level is 11.6KPa, the calculation is:
Standard atmospheric pressure 101.3KPa - 11.6KPa = 89.7KPa
The vacuum gauge should be set to -89.7KPa. The displayed value represents the amount of air removed. Other parameters are calculated and set in the same way.
Vacuum holding leakage rate:1.0KPa/hour
Vacuum accuracy deviation:±0.2KPa at maximum
Vacuum pump configuration:VP-1 direct-drive vacuum pump
Machine Power Supply
|
No. |
Item |
Specification |
|
1 |
Voltage |
220V |
|
2 |
Current |
3A |
|
3 |
Total Power |
0.5KW |
|
4 |
Circuit Protection System |
Grounding protection, fast fuse protection, and other safety protection functions |
