Standards:

With corresponding fixtures, the system can perform standardized tests including ISO 14801:2016 and YY/T 0521-2018.

Applications:

Product Information:

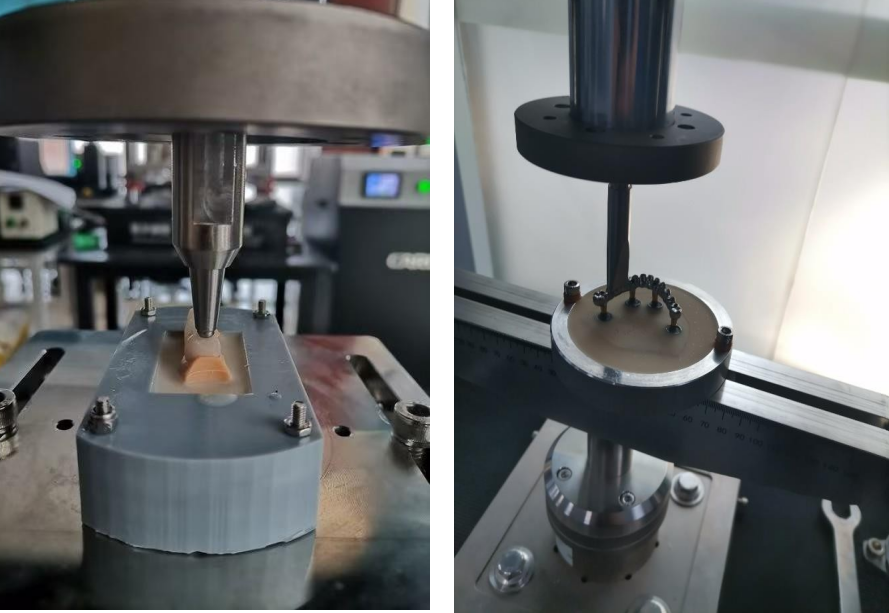

The M-600 Electromagnetic Dynamic Mechanical Test System integrates a self-developed electromagnetic linear motor and control system, providing stable output performance. Equipped with high-precision load and displacement sensors, it accurately measures axial load and displacement. The series controller with a DSP processor provides high-speed and high-precision closed-loop control of the axial channel. Combined with the STUDIO mechanical testing software, the system allows users to conveniently set test waveforms, frequencies, and other parameters, enabling mechanical performance evaluation and fatigue life testing for dental implants, biomaterials, and various other applications.

With a maximum dynamic load capacity of 800 N, the system features an appropriate load range and excellent dynamic characteristics, making it particularly suitable for implant fatigue testing. The actuator output shaft delivers high acceleration motion, making it ideal for both static tests and high-frequencyfatigue tests.

Features:

Imported load and displacement sensors provide high measurement accuracy and precise control performance.

Meets the fatigue testing requirements of YY/T 0521. such as room temperature conditions, 15 Hz frequency, and 5 million cycles.

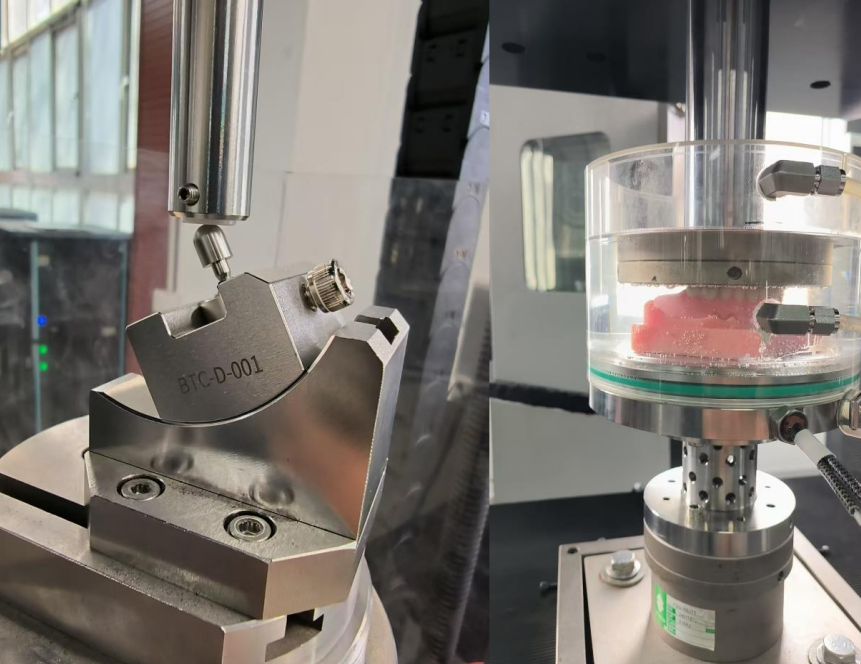

Optional constant temperature circulating water bath environment available.

Sensor overload protection function.

Mechanical testing software provides preset test templates for convenient repeated testing, while allowing users to customize load, frequency, cycle number, and other parameters.

Commercialized, fully self-developed high-resolution control cabinet with independent intellectual property rights and excellent expandability.

Fracture protection function ensures that specimens are protected from secondary damage.

Stable, reliable, and easy to operate.

Self-developed electromagnetic motor with a warranty period of up to 10 years.

Application:

The M-600 Electromagnetic Dynamic Mechanical Test System is mainly used for dynamic mechanical performance testing of materials and components under controlled cyclic loading. It is suitable for evaluating fatigue, stiffness, deformation, damping, and durability of materials and products.

Compliance with Quality and Technical Standards:

The system complies with the following quality and technical specifications:

GB 5226.1-2008 — Electrical Equipment of Machines — Safety of Machinery — Part 1: General Requirements.

GB 19517-2009 — Safety Technical Specifications for National Electrical Equipment.

GB/T 191-2008 — Packaging — Pictorial Markings for Handling of Goods.

GJB 450A-2004 — General Requirements for Assembly Reliability Engineering.

Equipment Documentation:

The following equipment documents will be provided to users, including:

Equipment component and spare parts catalog list;

Technical manuals for key components (purchased parts);

Equipment installation, operation, and maintenance manuals;

Detailed calibration instructions and acceptance forms;

Electronic files of system recovery images or installation packages for the operation and control system.
