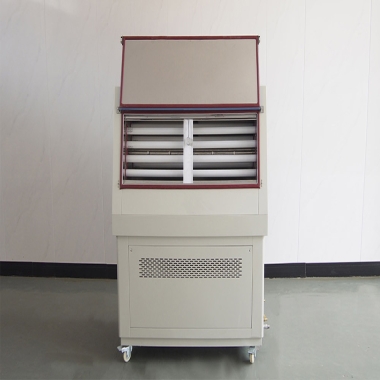

UV Exposure Test MachineBACK

Testing Standards:

Applications:

Consultation

Product Information :

Features and Benefits

1. Accelerated aging testing can simulate the aging effect of materials in natural environments for years within tens or hundreds of hours, accelerating the detection of materials' UV and weather resistance.

2. The UVA-340 or UVB-313 tubes, and the output wavelengths are concentrated around 340 nm or 313 nm respectively, which complies with standards such as ASTM G154 and ISO 4892-3.

3. The temperature can be controlled. It is also equipped with condensation and water spray functions to simulate the real day-night temperature difference and humidity cycle.

4. Supports light/condensation cycle, effectively simulating the alternating environment of direct sunlight during the day and high humidity condensation at night outdoors, accelerating the detection of surface aging, cracking and fading.

Specifications

Model

STD UV-SI-260

Internal Dimension (mm)

450*1170*500

Overall Dimension (mm)

610*1330*1470

Specimen Holder Size(mm)

75*150

Specimen Capacity

56 Pieces

Irradiation Source

Fluorescent UV lamps (8) - 40 W

Temperature Range

Ambient ～ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ～ 80 ℃

Humidity Range

≥95% RH

Bandwidth

290 ~ 400nm

Irradiance Control

0.3~20 W/㎡

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50mm

Controller

Programmable color LCD touch screen controller, Ethernet connection

Water Supply System

Automatic water supply, Water purification system

Safety Device

Over-temperature Protection; Over-current Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel
