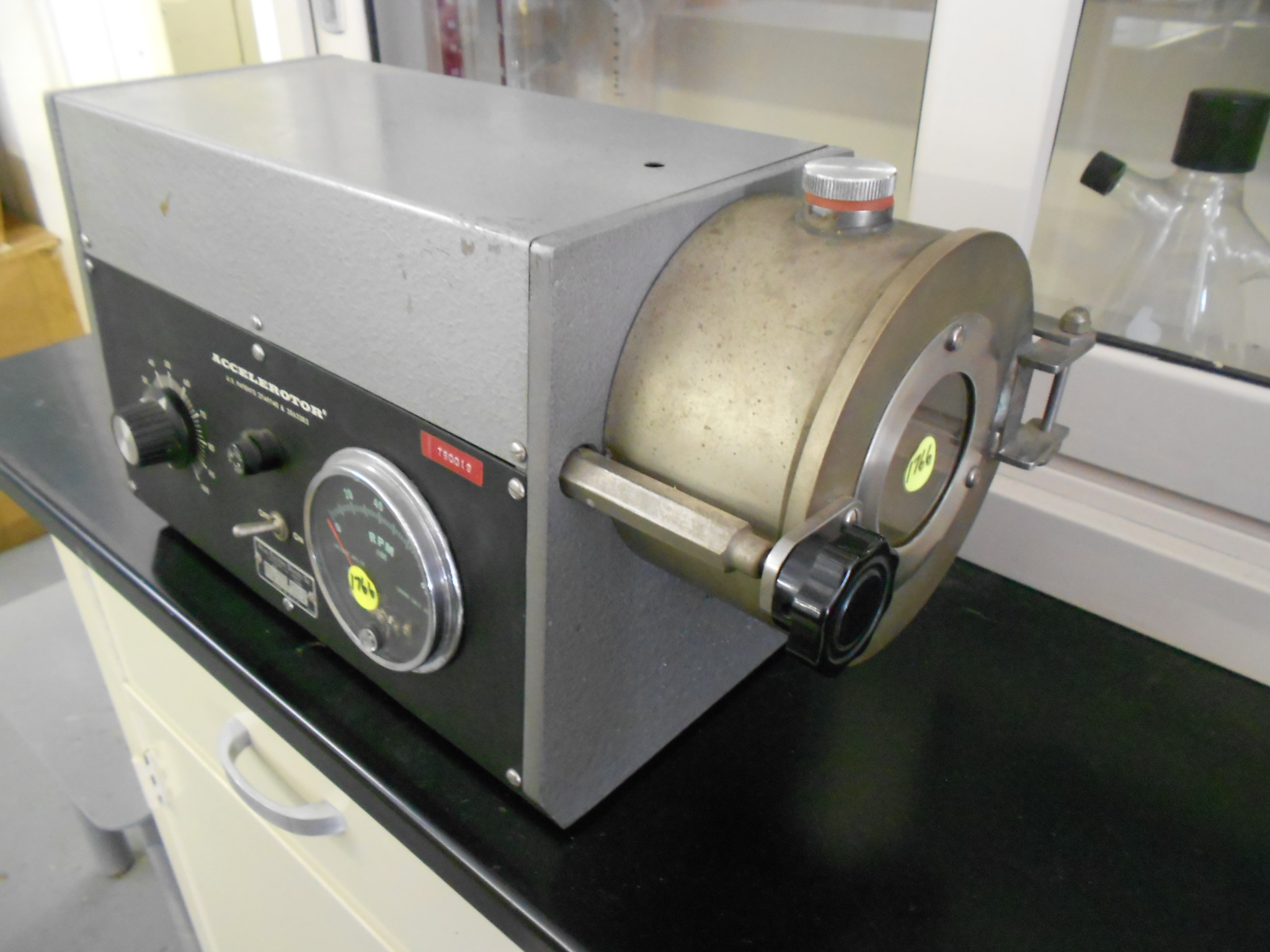

AATCC Accelerotor
BACK
Standards:
ATCC 93,M&S P26,M&S P53,NEXT 31
Applications:
AATCC Accelerotor, to rapidly determine abrasion resistance of flexible materials including textiles, paper, leather and plastics in both wet and dry conditions. Samples are rapidly tubled within a cylindrical test chamber lined with an appropriate abrasion material. The tumbling action is provided by a propeller shaped rotor for a predetermined time at a predetermined speed. wet and dry .
The abrasion resistance is evaluated by determining the weight loss of the specimen or grab strength loss of the specimen when broken at an abraded fold line.
Product Information:
Specifications:
Test speed: 3000 r/min
S-shape rotor:114mm.
Test cylinder: Dia 140mm, 70mm depth.
Timer: 0.1s ~ 99h, stops automatically
Weight: 26 kg
Power: 220/110 V,50/60 Hz,3 A
Width: 480 mm
Depth: 220 mm
Height: 320 mm
