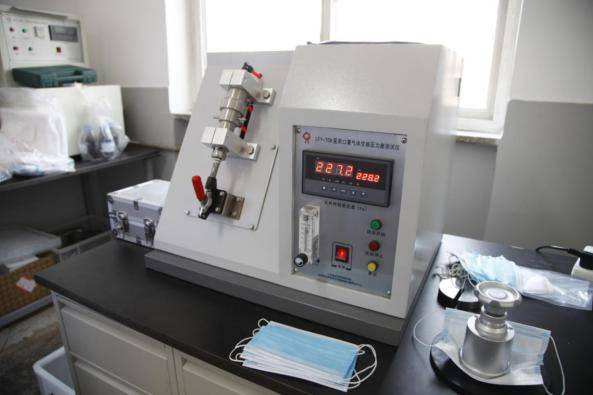

Medical Mask Differential Pressure Tester
BACK
Standards:
EN 149, EN 14683, ASTM F2100, MIL-M-36954C, GB 19083, GB 2626, YY/T 0969-2013
Applications:
Medical Mask Differential Pressure Tester or medical face mask breathability tester, is a lab testing instrument for determination breathability of medica face masks, the test principle is, through measuring the differential pressure required to draw air through a measured surface area at a constant air flow rate, to test the air exchange pressure of the medical face mask material, which indicates the breathability of medical face masks.
Built-in water-filled differential manometer is used to measure the differential pressure, a mass flow meter is used for measurement of the airflow. An electric vacuum pump draws air through the medical mask breathability tester and a needle valve is used to adjust the airflow rate.
Product Information:
The Medical Mask Differential Pressure Tester is a professional testing instrument designed to measure the pressure difference across medical masks, protective masks, and other filtration materials. By simulating the human breathing process, the tester allows a specified airflow to pass through the mask sample and measures the differential pressure on both sides of the sample, evaluating the air permeability and breathing comfort performance of the mask material.
Standards:
Medical face masks differential tester complies with standards like EN 149. EN 14683. ASTM F2100. MIL-M-36954C, GB 19083. GB 2626. YY/T 0969-2013.
EN 149.
EN 14683.
ASTM F2100.
MIL-M-36954C,
GB 19083.
GB 2626.
YY/T 0969-2013
Specifications:
| Item | Specification |
|---|---|
| Air Source | Suction pump |
| Air Flow | 8 L/min |
| Sealing Method | Mechanical face seal |
| Diameter for Circular Sample Holder | Φ25 mm |
| Differential Pressure Transducer | 0–500 Pa |
| Display | Digital display |
| Power Supply | 220V AC, 50Hz |
| Dimension | 550 mm × 400 mm × 700 mm21.65 inch × 15.75 inch × 23.62 inch |
| Net Weight | 40 kg88.18 lb |
Features:
Suction chamber air source to provide the pump.
High resolution differential pressure transducer with digital display for results.
Special sample holder to ensure holding sample
FAQ:
1. What is the purpose of the Medical Mask Differential Pressure Tester?
It is used to measure the differential pressure (breathing resistance) of medical masks and evaluate their breathability and wearing comfort.
2. Which types of masks can be tested?
It is suitable for testing medical surgical masks, disposable medical masks, and protective face masks.
3. Which standards does the tester comply with?
It can comply with standards such as EN 14683. YY 0469. ASTM F2100 and other relevant medical mask testing standards.
4. What parameters can be measured?
The tester measures the pressure difference between the two sides of a mask under specified airflow conditions.
5. What are the advantages of this tester?
It features accurate airflow control, high measurement precision, easy operation, stable performance, and reliable test results for mask quality inspection.
