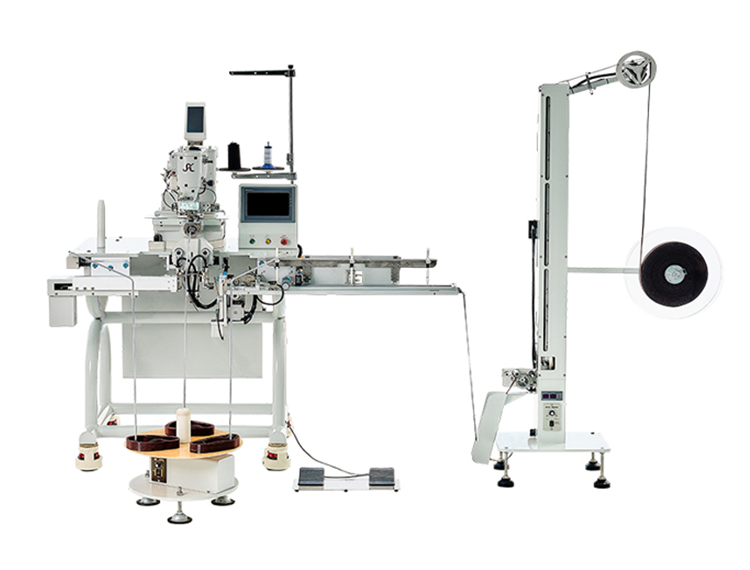

Automatic rubber band connecting machine
BACK
Standards:
Applications:
Men's underwear, sports pants, casual pants, sweaters, bras, beach pants, etc.
Product Information:
The Automatic Rubber Band Connecting Machine is an automated device designed to connect, join, or assemble rubber bands efficiently and consistently. It is commonly used in the production of elastic components, rubber bands, and related products, helping improve production efficiency, connection quality, and process consistency.
Machine characteristics:
1、Equipped with high-end counter, which can realize complete counting function
2、Double the bobbin to reduce the frequency of shuttle change
3、No bottom line, automatic stop when disconnected, to prevent material waste
4、Equipped with middle presser foot to provide more stable sewing quality
Performance parameters:
| Item | Specification |
|---|---|
| Power | 0.8 kW |
| Sewing Machine Revolution | 2800 rpm (max.) |
| Applicable Rubber Width | 5–60 mm |
| Splicing Length | 120–999 mm |
| Minimum Circumference | 150 mm |
| Maximum Overlapping Width | 25 mm |
| Measuring & Reeling-Out System | Pulse Motor System |
| Pattern Memory | SD Storage Card |
| Maximum Number of Patterns | 2 GB |
| Material Cutting Method | Cold Knife Cut |
| Applicable Fabrics | Elastic Ribbon / Woven Fabric / Fabric / Lace |
| Sewing Production | 800–900 pieces/h |
| Splicing Range | Tacking Machine: within 6 cm; Pattern Machine: within 8 cm |
| Splicing Method | Flat Connection and Overlap Connection |
FAQs:
1. What is an Automatic Rubber Band Connecting Machine used for?
It is used to automatically connect and assemble rubber bands or elastic components.
2. What are the advantages of this machine?
It improves production efficiency, connection consistency, and product quality while reducing manual labor.
3. Is the machine suitable for mass production?
Yes. It is designed for continuous and efficient production and is suitable for large-volume manufacturing.
4. Can the connecting parameters be adjusted?
Yes. The machine can generally be adjusted according to different rubber band specifications and connection requirements.
5. What industries can use this machine?
It can be used in rubber product manufacturing, elastic component production, garment accessories, and other industries requiring automated rubber band connection.
