Standards:

Applications:

Single lip bags, double lip bags, zipper bags, side pockets, flaps, pocket openings, collars, etc. are cut and sewn.

Product Information:

Scope of application:

Single lip bags, double lip bags, zipper bags, side pockets, flaps, pocket openings, collars, etc. are cut and sewn.

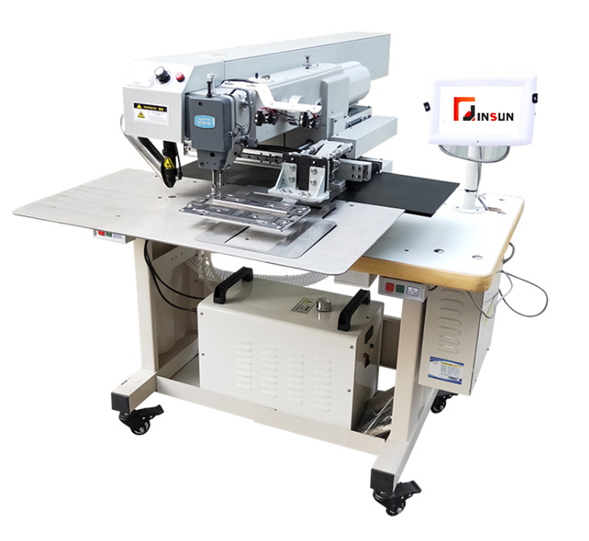

Machine characteristics:

1、Imported high-end industrial control components provide better stability and longer life

2、Automated assembly process, superior hardware performance

3、Simple and easy-to-use human-computer interaction interface to improve production efficiency

4、Fully automatic laser cutting to ensure uniform cutting size

5、Original double vacuum exhaust system to optimize working environment

PRODUCTS DETAILS：

Machine characteristics:

Imported high-end industrial control components provide better stability and longer life

Automated assembly process, superior hardware performance

Simple and easy-to-use human-computer interaction interface to improve production efficiency

Fully automatic laser cutting to ensure uniform cutting size

Original double vacuum exhaust system to optimize working environment

Scope of application:

Single lip bags, double lip bags, zipper bags, side pockets, flaps, pocket openings, collars, etc. are cut and sewn.

○ Suit pocket

○Zipper pocket

○Double bag eyebrows

○One word bag

○Make shape

○Do placket

The performance parameters：

Sewing speed：2700rpm

Speed setting：200-2500 rpm; 10 segments setting

Stitch length：0.1-12.7mm(The minimum resolution is 0.1mm)

Maximum number of needles：8000stitches/pattern8000

Pattern storage：Internal storage, U disk storage

Expand and reduce function：X-axis, Y-axis 10-200% (minimum setting value is 0.1%)

Use machine needle：DP X 17#18

Use shuttle bed：Free shuttle

Presser foot form：Pneumatic

Lifting force of external presser foot：32mm

Lifting force of inner presser foot：20mm

Internal presser foot power：4-10mm

Spindle motor：Direct drive servo motor

power supply：AC 220V, on behalf of the grounding wire protection

Electronic control display voice：Chinese, English, Vietnamese, Korean
