Standards:

ISO 15797: Industrial washing and drying procedures for textiles. GB/T 4288-2016: Laundry machinery performance requirements. EN 61121: Household and commercial laundry equipment safety requirements. ASTM D1230: Performance testing of dry cleaning equipment. IEC 60335-2-11: Safety requirements for laundry machinery.

Applications:

Industrial Dry Cleaning Machines:

Suitable for cotton, wool, polyester, blends, down, and specialty fabrics.

Maintain color, prevent shrinkage, minimize wrinkles, and provide antibacterial and moth-proof protection.

Energy-Saving Industrial Dryers:

Drying of laundry in hotels, hospitals, industrial laundries, and textile plants.

Suitable for large loads (15–100 kg) and various heating methods including steam and gas.

Perchloroethylene Dry Cleaning Machines:

Professional dry cleaning using PCE solvent for delicate garments.

Automatic solvent recovery and distillation for safe and economic operation.

Product Information:

The Industrial Dry Cleaning and Energy-Saving Dryer Machines are designed for high-performance, reliable, and efficient textile cleaning and drying. The dry cleaning machines, industrial dryers, and perchloroethylene (PCE) dry cleaning units provide robust cleaning, gentle fabric care, and energy-efficient drying, suitable for industrial laundries, hotels, hospitals, and textile processing facilities. You can rely on them for fully automated washing, drying, and solvent recovery while maintaining fabric integrity, hygiene, and operational safety.

Features

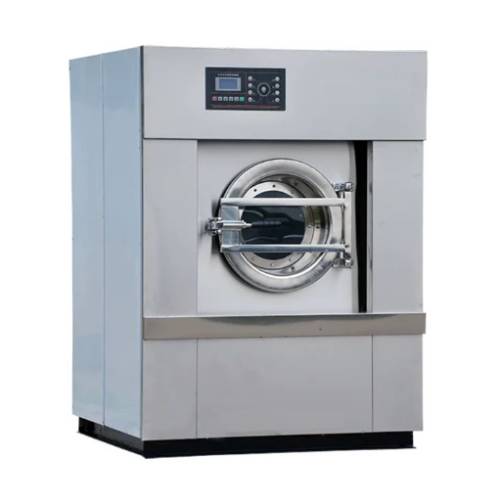

1. Variable-frequency fully automatic industrial washing machine

All water-contact components of the washing machine are constructed from premium AISI-304 stainless steel, extending service life.

The color touchscreen design ensures stable and reliable operation. Utilizing relay outputs eliminates the need for intermediate relays, reducing potential failure points and maintenance challenges.

The narrow outer drum basin design saves approximately 250 tons of water annually for a 100kg machine while simultaneously reducing chemical consumption.

Withstands high off-center loading (30%) and continuous acceleration life-cycle destructive testing, delivering a service life several times longer than comparable products.

2. Energy-Efficient Industrial Dryers

The inner drum features stainless steel construction with hexagonal honeycomb perforation, achieving an 85% open area ratio. Its large, high-temperature-resistant door facilitates effortless loading and unloading of linens. Two heating options are available: steam and gas.

Cold-air flap structure directs higher, more concentrated heat for direct linen drying. Rapid cooling prevents steam coil temperature drop, accelerating restart times to save time and reduce losses with high thermal efficiency.

Features large-capacity vertical radiators to enhance drying efficiency.

Insulation layer added to frame and outer cylinder for improved drying efficiency.

Variable frequency fan technology enables precise exhaust airflow control, adjustable range accommodates user-set steam pressure variations.

Automatic fan exhaust control saves energy while meeting diverse customer requirements for high, medium, or low drying temperatures and speeds. Ensures consistent drying quality and enhanced efficiency.

3. Tetrachloroethylene Dry Cleaning Machine

Features a bilingual computer interface supporting Chinese-English human-machine interaction, self-diagnostic troubleshooting, and automatic detection functions. Allows customizable wash programs for fully automated control of washing, spinning, and drying cycles.

Equipped with a high-performance triple-drum dual-filter system and an oversized centrifugal filter for enhanced economy and practicality, delivering superior value for money.

Premium stainless steel construction with automatic temperature control technology for distillation ensures worry-free, reliable, safe, and rapid operation while maximizing cost-effective recovery.

Parameters

1. Variable-frequency fully automatic industrial washing machine

Item	15 kg Model	20 kg Model	25 kg Model	30 kg Model	50 kg Model	100 kg Model
Rated Capacity	15 kg	20 kg	25 kg	30 kg	50 kg	100 kg
Drum Dimensions	Φ630×500 mm	Φ700×500 mm	Φ800×500 mm	Φ900×500 mm	Φ1068×580 mm	Φ1200×850 mm
Motor Power	1500 W	1500 W	2500 W	3000 W	5500 W	7500 W
Machine Weight	490 kg	580 kg	650 kg	1500 kg	2700 kg	3500 kg
Overall Dimensions (L×W×H)	1100×1100×1580 mm	1100×1100×1580 mm	1200×1100×1580 mm

2. Energy-Efficient Industrial Dryers

Item	15 kg Model	20 kg Model	25 kg Model	35 kg Model	50 kg Model	100 kg Model
Rated Capacity	15 kg	20 kg	25 kg	35 kg	50 kg	100 kg
Drum Speed	35 r/min	35 r/min	35 r/min	35 r/min	32 r/min	28 r/min
Motor Power	0.55 kW	0.55 kW	0.4 kW	0.4 kW	1.1 kW	2.2 kW
Exhaust Port Size	Φ150 mm	Φ150 mm	Φ150 mm	Φ200 mm	Φ300 mm	300×400 mm
Overall Dimensions (L×W×H)	850×1200×1580 mm	850×1200×1580 mm	1060×1200×1960 mm

3. Tetrachloroethylene Dry Cleaning Machine

Item	8KG Model	10KG Model	12KG Model	15KG Model
Rated Capacity	8 kg	10 kg	12 kg	15 kg
Liquid Pump Power	0.55 kW	0.55 kW	0.55 kW	0.55 kW
Filter Motor Power	0.55 kW	0.55 kW	0.55 kW	0.55 kW
Washing Speed	36 r/min	36 r/min	36 r/min	36 r/min
Power Supply	220/380 V	220/380 V	220/380 V	220/380 V
Drum Diameter	800 mm	800 mm	800 mm	800 mm
Overall Dimensions (L×W×H)	1750×1200×1750 mm	1750×1200×1800 mm	1750×1200×2050 mm	1750×1200×2150 mm
Machine Weight	800 kg	900 kg	1000 kg

Accessories

Standard main washing machine unit

Color touch-screen control panel

Water supply and drainage connectors

Optional detergent dosing system

Optional automation sensors for large-scale industrial laundry

Test Procedures

1.Connect water supply and power, and switch on the machine.

2.Load textiles evenly into the drum.

3.Select the desired washing program via the touch screen.

4.Monitor washing cycle, water usage, and machine operation through the display.

5.At the end of the cycle, remove textiles carefully.

6.Perform routine cleaning of the drum and water tank after each cycle.

Conclusion

The Industrial Dry Cleaning and Energy-Saving Dryer Machines provide a comprehensive, efficient, and reliable solution for large-scale textile cleaning and drying operations. Designed with robust stainless-steel construction, intelligent control systems, and energy-saving technologies, they ensure excellent cleaning performance while protecting fabric quality. Their wide capacity range, flexible heating options, and automated operation meet the diverse needs of hotels, hospitals, industrial laundries, and textile plants. By combining high productivity, reduced water and energy consumption, and safe solvent recovery, these machines help users lower operating costs, improve hygiene standards, and achieve consistent, high-quality textile care.

FAQ

1. What types of fabrics can be washed with this machine?

You can wash cotton, polyester, wool, blends, uniforms, linens, and other industrial textiles without damage.

2. How does the machine save water and detergent?

The narrow drum water tank design reduces water volume per cycle, saving approximately 250 tons of water annually for a 100 kg machine while minimizing detergent usage.

3. Can the machine handle unbalanced loads?

Yes, it has been tested under 30% high unbalance continuous acceleration conditions, ensuring stable performance even under uneven loads.

4. How is the operation controlled?

You operate the machine via a color touch-screen interface, which allows full program selection, monitoring, and fault detection.

5. What is the expected lifespan of the machine?

Due to robust AISI-304 stainless steel construction and high unbalance durability testing, the machine lifespan is several times longer than similar models.

6. Can this machine be integrated into automated laundry systems?

Yes, optional automation sensors and control modules allow integration into large-scale industrial laundry lines.
