Universal Abrasion Resistance Tester

BACK
Universal Abrasion Resistance Tester

info@standard-groups.com Quote

Share

Standards:

ASTM D3514/D3885/D3886，AATCC 119/120，FTMS 191/5300/5302，FORD EFB 15J2/BN 112-01

Applications:

Universal Wear Tester, to determine the wear and abrasion resistance of fabric used in clothing, footwear and industrials. Universal wear tester supplies with surface abrasion head (inflated diaphragm method) and Flex abrasion head as well as necessary weights and blades. Accessories are available on request for conducting frosting, pilling and edge abrasion tests.
Universal wear tester (stoll universal wear tester) fitted with the built-in timer and mechanical cycle counter; repeatable and reproducible testing is ensured by consistent motor speed providing 120 double strokes per minute of 25mm (1in) stroke length. The improved air injection system for more uniform inflation of the diaphragm used in surface abrasion testing, and a superior clamping mechanism for repeatable specimen tensioning.

Product Information:

The instrument can be used to flat grinding, mill grinding, edge grinding, folding grinding and anti-frost, edge-close and fleece and other wear-resistant test, can be used for woven fabrics, knitted fabrics, coated fabrics, fleece fabrics, socks, knitted fabrics, knitted fabrics, felt, nonwoven, deep fabric, yarn, cord plastic film, rubber, leather, paper, and many other materials. The test sample may be dry or immersed in water, oil, or other liquids.

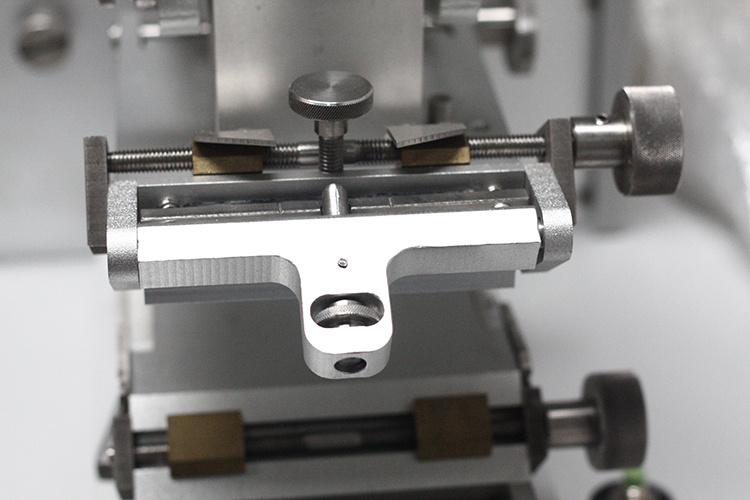

The instrument is mainly composed of control system and friction system. The sample is installed on the clamp and is tightened. The upper fixture with the sandpaper is going down, adjust the position of the weight so that the sandpaper in contact with sample surface, through the control system set the number of friction times of the sample, and start the instrument. The lower fixture base does front-to-back motion, so that the sample and sandpaper being rubbed against each other. When the number of times the movements reach the set value, the instrument stops and remove the sample to observe the degree of wear.

Suitable for  testing all kinds of fabrics, including wear performance and wear resistance of clothing, shoes and industrial textiles.

Accessories

Frosted accessories

Cloth edge and fold between the friction sample

Elastic friction pad

Abrasive 50 yards / roll

3 rating cards for ASTM D3514

Technical Parameters

Item Specification
Test Mode Automatic operation, ensuring accurate and repeatable test results while eliminating the need for operator evaluation
Gripping Device Advanced gripping device ensures constant sample tension
Test Heads Equipped with flat-grinding test head (inflatable membrane type wear test method) and mill-grinding test head, including required weights and initial abrasives
Timer & Counter Built-in timer and mechanical cycle counter
Machine Structure Reciprocating table with flat grinding / mill grinding test head mounted on the top
Clamping Ring Inner Diameter 94 mm
Lock Ring Height ≤9.5 mm
Speed 120 ± 15 cycles/min
Moving Stroke 25 mm
Air Pressure 62 kPa (9 psi)
Dimensions (L × W × H) 330 × 500 × 460 mm
Weight 33 kg (72 lb)
Power Supply 120/230 V, 50/60 Hz, 2A / 1A
