UV Carbon Arc weather Meter
BACK
Standards:
Applications:
Weatherproof test: This test is conducted to find out the impacts on some items and parts in a natural condition by such factors as sunbeam, ozone, rain, snow, temperature and humidity. It will also find out the resistance of the aforesaid items to the aging effects imposed on them by the elements. The changes of properties of the items under test such as deformation, discoloration, rate of penetration, gloss, peeling, hardness and softness maybe found out easily in a short time. With the result of the test, the quality requirement may be improved. This test device may be used in many fields such as aviation, coating industry, automobile industry, textile industry, dyestuff industry, plastic industry and construction companies.
Product Information:

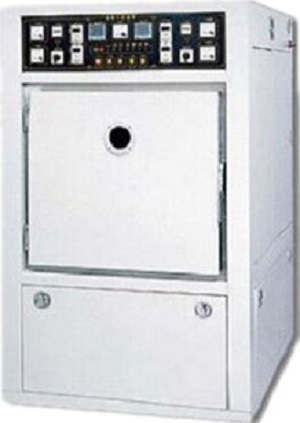

UV Carbon Arc Weather Meter is a testing instrument designed to simulate solar ultraviolet radiation environments for evaluating the weathering resistance, color fading resistance, and aging performance of materials.It uses a carbon arc lamp as the light source to generate ultraviolet and visible light radiation close to natural sunlight, accelerating the aging process of materials and evaluating changes in their properties after long-term outdoor exposure.
Features
1. Glass carbon dust suction device.
2. The voltage automatically detect the secondary.
3. Servo current adjustment device.
4. Odor automatic discharge device.
5. Spray humidification devices and ultrasound assisted humidification.
6. Specimen condensation promoting way, can improve the reproducibility of the test piece 10 times.
7. High life carbide.
8. Borosilicate glass windows and light simulation.
Parameter
| MODLE ITEM | TMJ-9705 | ||
| LIGHTING SOURCE | ENCLOSED CARBON ARC | ||
| INSIDE DIMENSION | 1000x1000x900(WxDxH) mm | ||
| OUTSIDE DIMENSION | 1300x2000x1300(WxDxH) mm | ||
| WEIGHT | 400KG | ||
| TESTING TIME | 24Hr/48Hr* | ||
| TEST VOLTAGE | 120V to 145V (135V) 135V±2% | ||
| TEST CURRENT | 15A to 17A (16A) 16A±2% | ||
| BLACK PANEL TEMPERATURE | CONSTANTLY 60oC or 83±3oC AUTOMATICALLY | ||
| SPECIMEN DRUM DIA. | 800mm | ||
| DRUM ROTATION SPEED | 1RPM | ||
| TEST SPECIMEN | No. | 60 PCS (2 STAGE) | |
| SIZE | 150 x70mm(WxD) | ||
| TEMPERATURE RANGE | RT+10oC ~85oC | ||
| HUMIDITY RANGE | DRY at 40oC, 40% to 85% RH DRY at 80oC, 30% to 50% RH |
||
| CARBON TYPE | UPPER | 13Фx305mm( 1 UNIT ) | 23Фx106mm( 1 UNIT ) 48H |
| LOWER | 13Фx100mm( 2 UNIT ) | 18Фx105mm( 1 UNIT ) 48H | |
| POWER SOURCE | 220V/380V SINGLE PHASE 11KVA |
FAQ
What is a UV Carbon Arc Weather Meter used for?
It is used to test the weathering and fading resistance of materials under simulated sunlight exposure.
Which standards does it comply with?
It can comply with standards such as ASTM G152. ASTM D1499. and related carbon arc weathering test methods.
What materials can be tested?
It is suitable for textiles, plastics, coatings, paints, rubber, leather, and automotive materials.
What is the difference between carbon arc and xenon arc testing?
Carbon arc uses carbon electrodes to simulate sunlight, while xenon arc provides a closer simulation of the full solar spectrum.
What factors can be controlled during testing?
The tester can control exposure time, temperature, humidity, and radiation conditions according to test requirements.
