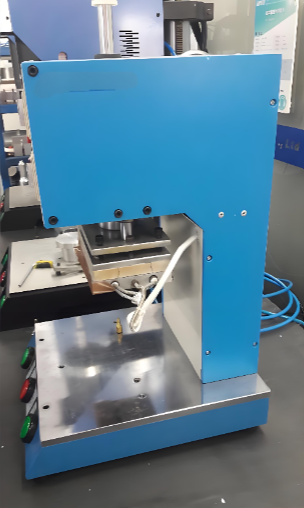

Installation of Scratch Resistance Tester in Germany

Standard International Group (Hong Kong) Limited has successfully completed the installation of a Scratch Resistance Tester in Germany, demonstrating the core compatibility of this equipment within the German automotive components industry. This achievement is not only a recognition of product quality but also represents a significant breakthrough in the international market, symbolizing that Chinese manufacturing has developed the capability to compete in the global high-end precision testing sector.

As a global leading provider of industrial automation solutions, Standard International Group (Hong Kong) Limited recently successfully installed a customized Scratch Resistance Tester for the laboratory of a well-known automotive components supplier in Germany, providing professional support for quality inspection of automotive interior plastic parts.The deployment of this equipment indicates that its testing accuracy, stability, and level of intelligence have reached internationally leading standards. This milestone marks the recognition of high-end Chinese testing equipment in stringent international markets and represents a shift from product export to participation in global technical standards dialogue.

Why the Scratch Resistance Tester Stands Out

Precise Alignment with Industry Standards for Demanding Applications

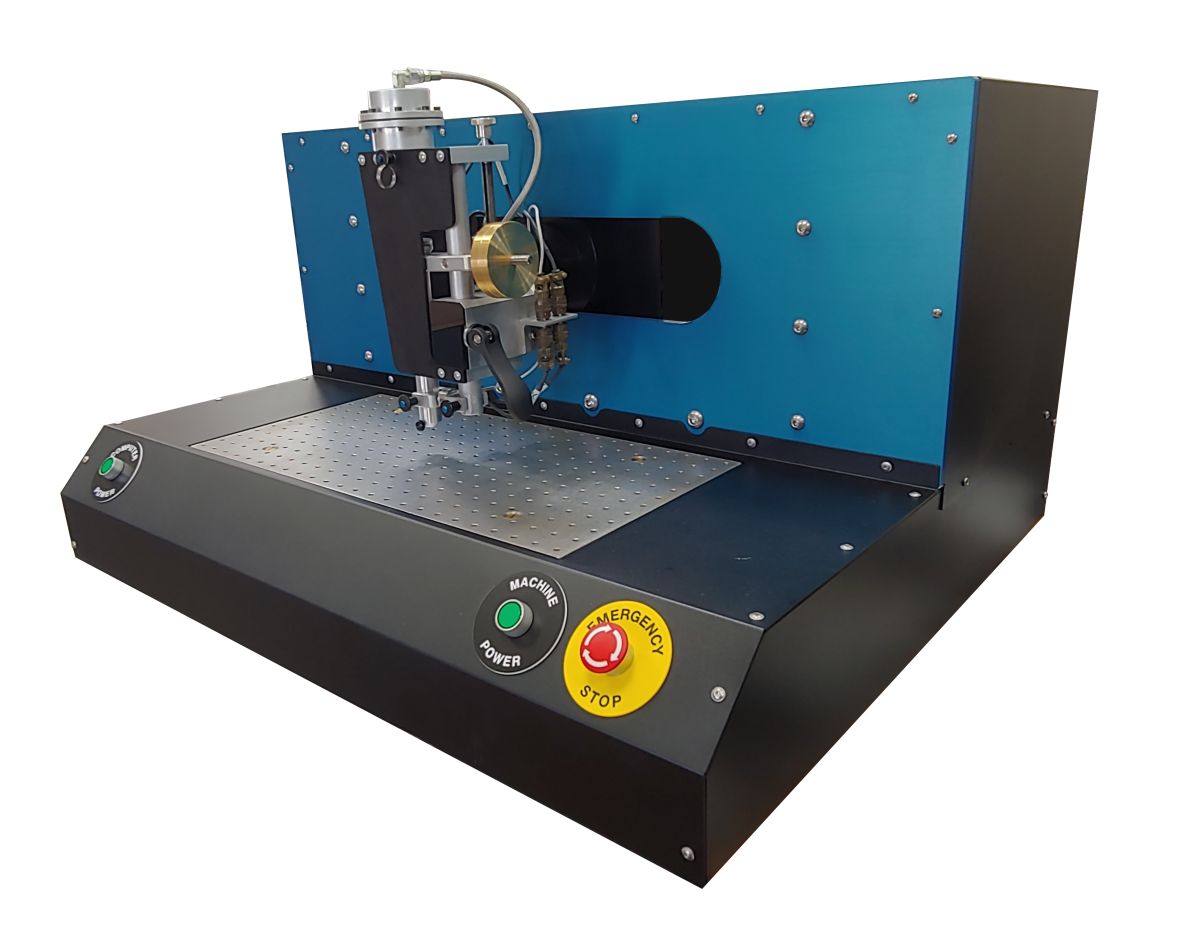

The German automotive industry has a well-established and stringent quality inspection system, with detailed requirements for scratch resistance testing of interior components.The YN-SRT-C Scratch Resistance Tester was developed in full reference to internationally recognized testing standards and further optimized for automotive interior materials. The testing stylus is made of hardened steel with a 40° conical tip and a precisely controlled tip radius of 0.25 mm ± 0.02 mm, fully complying with German automotive testing requirements.During operation, the stylus moves at a stable speed of 20 mm/s ± 5 mm/s while applying a force of 10 N ± 0.5 N, accurately simulating the scratch forces that interior components may experience in real-world use, thereby providing reliable data for quality evaluation.

Intelligent Control System for Improved Testing Efficiency

The tester adopts a PLC control system combined with a 7-inch color touchscreen, offering a simple and intuitive user interface. German technicians can operate the system proficiently after minimal training.Through the touchscreen, users can easily preset scratch distance, number of cycles, and speed without complex manual adjustments.The system also features a 90° automatic rotation function, enabling bidirectional (horizontal and vertical) scratch testing in a single cycle, significantly reducing testing time.Compared with conventional manual testing equipment, the YN-SRT-C increases testing efficiency by more than 60%, helping users save both time and operational costs while maintaining high accuracy.

Stable and Durable Structural Design for High-Intensity Testing

The German automotive components laboratory processes a large volume of samples daily, making equipment stability and durability essential.The YN-SRT-C is built with an aluminum alloy frame and stainless steel panels. The sandblasted aluminum base provides both aesthetic appeal and excellent corrosion resistance.The precision ball screw and guide rail system ensure long-term operational accuracy and stable motion performance.The hardened steel stylus is specially treated for high hardness and wear resistance, enabling it to withstand high-frequency scratch testing without degradation.Since installation, the equipment has operated continuously for one month without failure, fully meeting the customer’s high-intensity testing requirements.

Customized Solutions Tailored to Customer Needs

During discussions with the German client, the technical team identified that sample sizes varied significantly, and some irregularly shaped interior components were difficult to secure.To address this, a customized adjustable rotating sample platform was developed, featuring multiple mounting holes to accommodate various sample sizes and shapes.In addition, the client requested automated data recording and export capabilities for easier analysis and reporting. The technical team promptly upgraded the system by adding a data storage module that supports Excel-format export, fully meeting the client’s operational requirements.

Comprehensive After-Sales Support for Customer Confidence

For German clients, after-sales service is as important as equipment performance.Standard International Group (Hong Kong) Limited assigned a professional service team for this project. After installation, engineers provided three days of on-site training, covering operation procedures, maintenance guidelines, and troubleshooting techniques.A 24/7 online customer support system was also established, ensuring timely technical assistance whenever needed.In addition, the company offers a one-year warranty. During the warranty period, non-human-caused defects will be repaired or replaced free of charge, fully eliminating customer concerns.

Innovation Call to Action

The successful deployment of the Scratch Resistance Tester represents a key milestone in the global expansion of Chinese intelligent manufacturing.It is no longer merely about cost advantage, but about a dual-driven strategy of technological strength and service excellence, earning the respect and trust of global high-end customers.

Availability: The Scratch Resistance Tester is now available for global orders, with customized configurations and full after-sales support.
