G308 Double Pendulum Tear Strength Tester Operation
2024/01/16
Share:

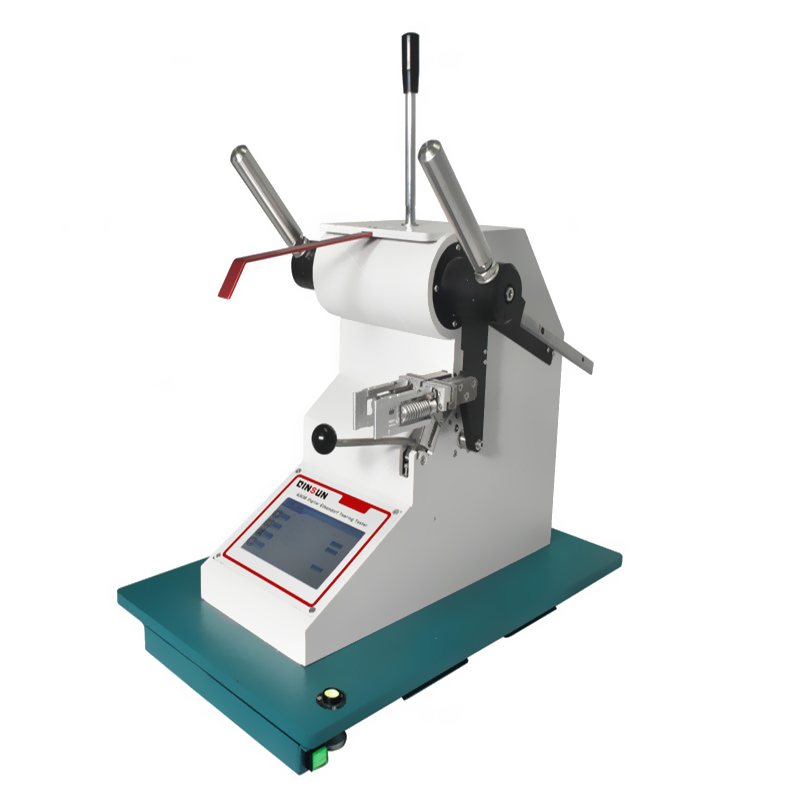

G308 Double Pendulum Tear Strength Tester uses the Elmendorf method to measure the tear strength of various fabrics and evaluate their tear resistance performance.
Compliant with standards:
ASTM D1424 D689;NEXT 17;M&S P29;BE EN ISO 13937,4674;BS 4468;DIN EN 21974;GB/T 3917.1;ISO 1974
Operation:
Firstly,prepare the accessories and test samples;
2.Turn on the instrument switch and enter the LCD screen operation interface;
3.Select the appropriate test range according to the testing requirements;
4.Place the corresponding weights on the instrument bearings;
5.The system automatically calibrates the weight of the weights;
6.Press the buttons on both sides of the bottom of the instrument simultaneously;
7.Rotate the double pendulum;
8.After calibration is completed,enter the testing interface and click on"Test";
9.Cut the sample according to the sampling template and install it in the fixture;
10.Cut a tongue shaped small opening on the sample;
11.Simultaneously press the buttons on both sides of the bottom of the instrument;
12.The specimen is torn under a specific impact force;
13.The data results are displayed on the display screen,and can be viewed after saving;
14.Remove the sample;
15.After the experiment is completed,turn off the instrument;
16.After the experiment,analyze the force required for the specimen to expand a certain length under the specified load and crack,in order to evaluate the material's tear resistance performance.
