G305W Fabric Strength Tester Operation
2024/01/16
Share:

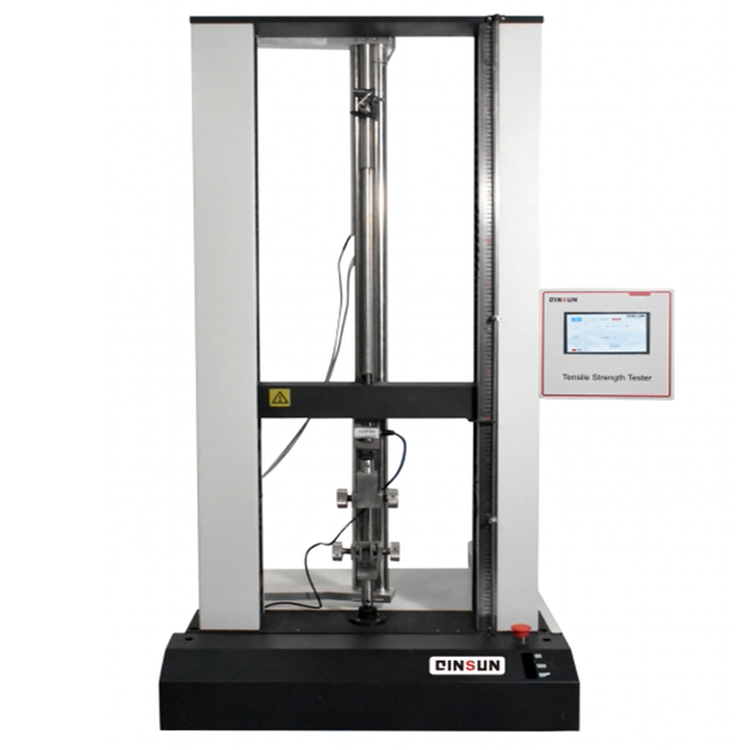

G305W Fabric Strength Tester is used to test the mechanical properties of rubber,plastic,leather,metal,wire,paper,packaging,building materials,petrochemical,electrical,geotechnical and other materials,including tensile,tear,top breaking,constant elongation,constant load,elasticity,seam slip,peeling,etc.
Functional items:
Function 1:Timed stretching
Function 2:Constant speed stretching,relaxation stretching,relaxation pre tension
Function 3:Constant elongation stretching
Function 4:Constant load stretching
Function 5:Tear(peel)
Function 6:Breakthrough Experiment
Applicable standards:
ASTMD5034,ASTMD2261,ASTMD434,GB/T3923,GB/T3917,GB/T13772,FZ/T80007.1,ISO5081,DIN53859,DIN53858,BS3320,4303,2576,2543,etc
Operation:
Firstly,prepare the accessories and test samples;
2.Turn on the power switch of the instrument;
3.Enter the LCD screen operation interface;
4.Select standard mode according to testing requirements;
5.Set parameters such as elongation at break,spacing length,and rate;
6.Press the【Up】and【Down】buttons on the screen to manually adjust the measuring distance of the fixture;
7.Lower the fixture to a certain distance(according to the length of the sample);
8.Place the prepared sample in the fixture and tighten it in place;
9.Click the[Start]button;
10.The sample is stretched,and when a certain force value is reached,the sample is torn;
11.Obtain the data curve graph and click save;
12.Conduct testing on the next set of samples;
13.Obtain the data curve again;
14.Click on[Data]to view the saved data;
15.Remove the sample;
16.After the experiment is completed,turn off the instrument.
