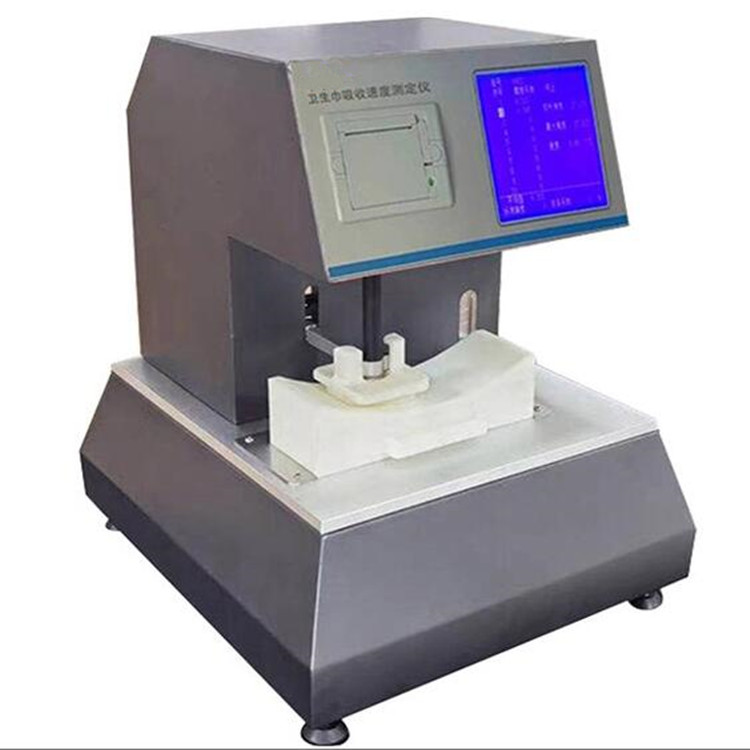

Diaper absorption speed tester parameters

　　The diaper absorption rate tester is used to measure the absorption rate of sanitary napkins, aunt napkins, diapers, etc., reflecting whether the absorption layer of sanitary napkins, aunt napkins, diapers, etc. is absorbed in a timely manner.

　　Compliant with standards:

　　GB/T8939-2018, GB/T39391-2020, etc.

　　Technical parameters:

　　1. Standard testing module: Size is (76 ± 0.1) mm * (80 ± 0.1) mm, mass is 127.0 ± 2.5g

　　2. Curved specimen holder: 230 ± 0.1mm in length and 80 ± 0.1mm in width

　　3. Automatic liquid dispensing device: The liquid dispensing volume is 1-50 ± 0.1mL, and the dispensing speed is less than or equal to 3s

　　4. Testing module lifting speed: adjustable from 50 to 200mm/min

　　5. Automatic timer: timing range 0~99999, resolution 0.01s

　　6. Power supply voltage: AC220V, 0.5KW

　　8. External dimensions: length 420mm, width 480mm, height 520mm

　　8. Weight: 42Kg
