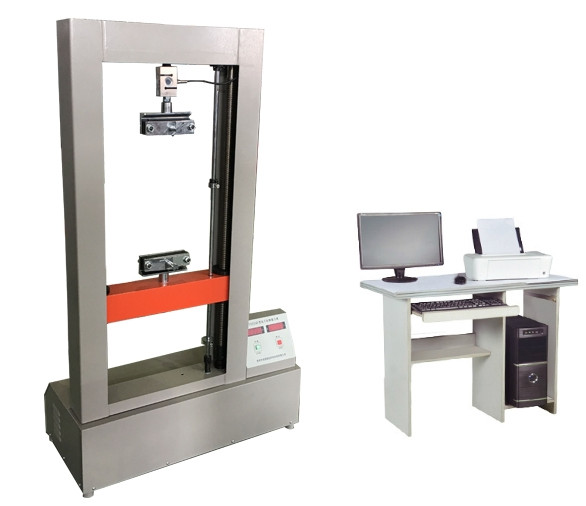

yg026 multi-functional textile electronic fabric strength machine

Textile electronic fabric strength machine for the determination of a variety of textiles, cotton, wool and other woven fabrics, knitted fabrics, non-woven fabrics and other materials such as mechanical properties of the test, including tensile, top breaking, tearing, peeling, seam, tearing, elastic recovery, anti-slip, fixed elongation, fixed load stretching and other functions.



【Conform to the standard



GB/T3923.1/2, GB/T3917.2/3/4, GB/T13773.1/2, FZ/T60005, FZ/T60006, FZ/T70006, ASTM D5034, ASTM D5035, ASTM D5587, ASTM D2261, ASTM D5733 and other domestic and National standards.



Instrument features



1、Adopt high precision and high efficiency force measuring sensor, accurate test data.

2, controller: computer control, strong anti-interference ability, fast, sampling rate ≥ 1000 times / s; and can simultaneously process the curve and report (powerful measurement software compatible with Windows XP or Windows 7 32-bit operating system).

3、Display features: dynamic tracking (monitoring) of the curve during the test, automatic scaling of the curve coordinates, and simultaneous tracking of the report and curve display.

4、Operating software: Chinese and English automatically switch, friendly interface.

5、Operating features: easy to operate, can customize the sample name, batch number, number of tests, operator name and other information.

6, can save test data and results, with curve display, query and other necessary functions, test speed continuously adjustable, specimen pull-off automatic stop, peak hold and other functions.

7、The test unit can be freely switched (N, pounds, kilograms, etc.).

8、A variety of optional range sensors, the equipment can be automatically identified.

9, preset a variety of standards, equipment default configuration of a number of commonly used standards, the user can choose commonly used to meet the requirements of the test standard for the relevant test.

10、A variety of forms of specimen fixture with a variety of testing functions, a wide range of applications, diversified test objects.

11, through the serial line and computer high-speed communication, computer software to achieve full control.

Instrument performance and main technical parameters



1、Testing method: isometric elongation (CRE) principle determination, computer control, and record the dynamic changes in the curve, can be selected according to the need for strong / elongation, strong / time, elongation / time curve display.

2、Testing methods: stretching, top breaking, tearing, peeling, seam, tearing, elastic recovery, anti-slip, fixed elongation, fixed load stretching and other functions

3, tension sensor range: 100N / 200N / 500N / 1000N / 3000N / 5000N (optional)

4、Force measuring accuracy: <±0.5%

5、Clamping distance: 25～500mm (steplessly adjustable)

6、Stretching speed: 25～500mm/min (arbitrary setting)

7、Return speed: 200mm/min (speed adjustable, recommended speed: 200mm/min)

8, effective dynamic range: 500mm

9, elongation resolution: 0.01mm

10, gripper effective clamping width: standard configuration 100mm (can be customized according to user needs)

11, printing: output various forms of data, curves and statistical results

12、Power supply: AC220V±10％ 50Hz

13, equipment size (L × W × H): 800mm × 360mm × 1350mm

14、Weight: about 150Kg



Standard International Group (HK) Limited yg026 multi-functional textile electronic fabric strength machine, in line with ISO, ASTM, GB / T a variety of testing standards, cost-effective, a full range. yg026 fabric strength machine professional pre-sales and after-sales engineers, according to customer demand for professional customization, 15 years of industry experience.
