Sample Preparation for Abrasion Resistance in Wet State By Martindale Method

Abrasion resistance of high performance fabrics was determined in accordance with the ISO 12947-3, but not in all details. Before determining abrasion resistance of high performance fabrics, Lissajous figure was checked for each work station by the method described in the Annex A (ISO 12947-1), the same as when determining it in dry state (HRN EN ISO 129473:2008).

Specimens were first cut with the same cutter as the foam and then placed in Petri dish. Distilled water with a softening agent was in the Petri dish. The specimens spent 5 minutes there, prior to every 5000 rubs. After that, the specimens were mounted in the specimen holders, with a circle of standard foam, as described in the standard (ISO 12947-3)

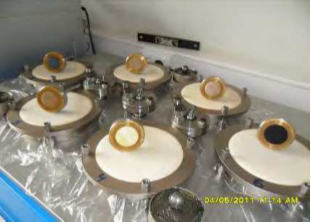

Samples during wetting

Woven wool felts, wool abradant fabric and foam were also placed in the Petri dish, together with distilled water and a softening agent, prior to every 5000 rubs.

Auxiliary materials during wetting

After 5 minutes, woven wool felts, wool abradant fabric and foam were placed on cellulose wadding, in order to remove excess liquid. Woven felts were then placed on the abrading table, protected with a transparent film. Wool abradant fabrics were placed on them and pressed with the weight of the mass.

Abrading table with a transparent film before clamping the ring

The mass of each conditioned test specimen was determined to the nearest 1 mg, before and after wetting. Mass loss in wet state was determined according to the HRN EN ISO 12947-3. Relative mass loss in wet state (fw) was also determined.

Martindale abrasion tester prepared for wet abrasion
