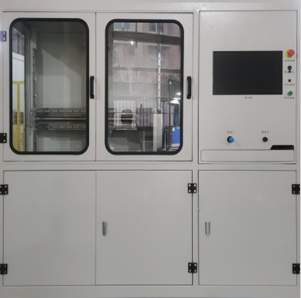

Hydraulic Pump Contamination Resistance Tester，JB/T 7043-2006

In modern industrial equipment and mechanical systems, the hydraulic pump serves as the core component of hydraulic transmission systems. Its reliability and resistance to contamination directly affect the stability, operational efficiency, and service life of the entire hydraulic system. Contaminants in hydraulic systems—especially solid particles, water, and air bubbles—can accelerate wear of friction pairs, degrade hydraulic fluid, increase system temperature, and even lead to severe failures. To evaluate the working capability and tolerance of hydraulic pumps under contaminated conditions, specialized testing instruments and test bench systems have been developed and widely applied. Such equipment is commonly referred to as a Hydraulic Pump Contamination Resistance Tester. This article comprehensively explains the technical framework of this system from the perspectives of contamination mechanisms, testing principles, equipment structure, test methods, standards, practical applications, and future development trends.

Impact of Hydraulic Pump Contamination on System Reliability and Control Background

Hazards of Hydraulic System Contamination

Contamination is one of the primary causes of hydraulic pump and system failures. Industry research indicates that a significant majority of hydraulic system failures are associated with contamination by solid particles, water, air, or other impurities. These contaminants can create microscopic abrasion within the pump, clog small clearances, reduce efficiency, increase noise, intensify internal component wear, and ultimately cause severe structural damage.

Hydraulic pump contamination generally originates from several sources: solid particles (such as dust and wear debris), water (from leakage or condensation), air (introduced through aged seals or improper operation), and chemical impurities (resulting from hydraulic oil degradation). These contaminants not only cause direct damage but may also accelerate oil deterioration, creating secondary contamination effects.

Why Test Contamination Resistance

Under harsh working environments, contaminants are often unavoidable. Quantitative testing of contamination resistance during equipment selection, design evaluation, and quality control enables:

Assessment of pump performance in contaminated systems

Verification of wear resistance, anti-clogging capability, and performance stability

Determination of appropriate filtration configurations and maintenance intervals

Optimization of pump internal structure and materials during product development

Therefore, developing dedicated hydraulic pump contamination resistance testers is essential for enhancing product reliability and system safety.

Basic Principles and Methods

Theoretical Basis of Contamination Resistance Testing

Hydraulic pump contamination resistance testing simulates real operating conditions in which impurities are mixed into the hydraulic fluid. The test evaluates pump performance indicators such as flow rate, pressure stability, efficiency variation, and wear under contaminated conditions. The core principle is to establish a causal relationship between contamination media and pump performance through quantitative measurements.

Defined contaminants—such as standardized solid particles, test dust, or wear debris—are introduced into the hydraulic oil through controlled injection systems. During operation, key parameters including output pressure, flow rate, temperature rise, and vibration are continuously monitored. Analysis of these parameters reveals trends in performance degradation as contamination levels increase, thereby evaluating contamination tolerance.

Common Testing Methods

Solid Particle Contamination Simulation

In this method, solid particles are injected into hydraulic oil and circulated through the pump. The testing system typically includes adjustable contamination injection devices to simulate varying contamination levels. By monitoring changes in pressure and flow curves as contamination increases, the pump’s load-bearing and operational capacity can be assessed.

Particle size, shape, and hardness significantly influence contamination effects, and the tester must be capable of precisely controlling these parameters.

Water and Emulsified Contamination Testing

Water contamination testing involves introducing controlled amounts of water into hydraulic oil to create oil-water mixtures. Water can cause emulsification and accelerate oil degradation. Testing pump performance under varying water content conditions provides insight into pressure fluctuations, lubrication effectiveness, and internal component damage.

Since water contamination strongly affects lubrication, temperature monitoring is typically integrated into the analysis to assess oil separation and oxidation.

Air and Bubble Contamination Testing

Air contamination often results from poor sealing or improper system operation. In this method, controlled bubble concentrations are introduced into hydraulic oil to simulate aeration. The pump’s pressure stability and vibration characteristics are evaluated under these conditions.

This test is especially important for assessing cavitation resistance and noise response under low suction pressure conditions.

Structure and Functional Modules

Modern hydraulic pump contamination resistance testers typically include the following key components:

Contamination Medium Control System

This system introduces preset particle sizes or water content into the oil circuit in a controlled manner. It includes contaminant reservoirs, injection pumps, inlet control valves, and metering devices, allowing precise adjustment of contamination levels according to the test plan.

Hydraulic Oil Circulation and Power Supply System

The testing platform contains a circulation loop that supplies pressure and flow to the pump under test. The loop integrates sensors and control valves to ensure stable, repeatable circulation of contaminated fluid.

Stable oil circulation is fundamental to testing accuracy; therefore, the oil tank, filtration units, and flow regulation devices must maintain high reliability.

Precision Sensing and Data Acquisition System

High-precision pressure sensors, flow meters, temperature sensors, and vibration detectors monitor pump performance in real time. The data acquisition system must support high sampling rates and precise recording to generate pressure-time and flow-time curves for analysis.

Control and Automation System

Modern testers integrate programmable logic controllers or computer-based software to automate testing sequences, contamination injection, parameter monitoring, and report generation. Automation enhances efficiency and eliminates human error, making large-scale comparative testing feasible.

Testing Parameters and Analytical Methods

Hydraulic pump contamination resistance testing involves several key performance indicators:

Pressure Retention Capability

Pressure is one of the core indicators of pump performance. Under contaminated conditions, internal leakage or increased friction may reduce output pressure. Monitoring pressure changes over time helps evaluate pump stability and durability in contaminated environments.

Output Flow Rate

Contaminants may obstruct pump inlets or alter internal clearances, reducing or destabilizing flow output. Comparing flow performance between clean and contaminated oil conditions quantifies pump sensitivity and resistance to contamination.

Temperature Rise and Energy Loss

Contaminants increase internal friction, raising pump operating temperature. Temperature rise serves as an important indicator of lubrication effectiveness and internal wear. Accurate thermal monitoring provides insight into contamination effects on oil and material performance.

Wear Monitoring

Advanced test systems may include online wear detection methods, such as resistance measurement or vibration analysis, to identify friction and degradation trends. These features are particularly valuable for long-term contamination endurance assessment.

International Standards and Testing Specifications

Standards related to hydraulic systems and filtration performance define testing methodologies, contamination media specifications, and data analysis procedures. While many standards focus primarily on hydraulic filter performance evaluation, their methodologies and contamination injection strategies provide valuable references for pump contamination resistance testing.

Laboratories are increasingly adapting multi-stage contamination injection methods from filtration standards to evaluate pump performance under varying contamination levels. In addition, academic research on wear mechanisms and failure prediction offers theoretical support for test system design and performance interpretation.

Practical Application Scenarios

Hydraulic pump contamination resistance testers are widely used across multiple industries:

Industrial Manufacturing and Heavy Equipment

Hydraulic pumps power injection molding machines, machining centers, and other industrial equipment. Batch contamination testing on production lines helps identify pumps with insufficient contamination resistance, reducing failure rates and maintenance costs.

Construction and Engineering Machinery

Equipment such as excavators and loaders operates in dusty and humid environments where contamination is common. Testing contamination resistance provides data to determine maintenance cycles and evaluate durability under real-world conditions.

Marine and Offshore Engineering

Marine environments with saltwater and high humidity demand strong contamination resistance. Testing pumps under simulated saline or water-contaminated conditions is critical for ensuring reliability in maritime applications.

Military and Aerospace Systems

Hydraulic systems in military and aerospace equipment require extremely high reliability. Contamination resistance testing verifies performance stability under extreme contamination scenarios, supporting design optimization and safety validation.

Technical Challenges and Future Trends

Despite progress, several challenges remain:

Realistic Simulation of Contamination Media

Actual field contamination often involves irregular particle sizes and uneven distributions. Replicating real-world conditions in laboratory testing remains a significant challenge affecting correlation between test results and actual performance.

Accelerated Testing Methods

Comprehensive endurance testing can be time-consuming. Developing accelerated test protocols to predict long-term performance within shorter timeframes is an important research direction.

Intelligent and Automated Enhancement

With advancements in industrial automation, data analytics and intelligent diagnostics will increasingly integrate into testing systems. Future testers may provide real-time monitoring, trend prediction, and fault warnings, becoming integral components of comprehensive quality control systems.

The hydraulic pump contamination resistance tester is an essential tool for evaluating hydraulic system reliability. By simulating contaminated fluid environments and precisely monitoring operational parameters, it quantitatively assesses a pump’s resistance to contamination. This testing technology plays a crucial role in improving system reliability, optimizing design, establishing maintenance strategies, and enhancing product quality.

As industrial systems demand higher reliability and standardization continues to advance, contamination resistance testing technology will evolve toward greater precision, automation, and intelligent analysis. Continuous refinement of these technologies will significantly improve the overall performance and service life of hydraulic equipment.
