How to test the tensile strength of fabric?
2026/06/03
Share:
Functions and Applications of the Fabric Static Tensile Tester
The Fabric Static Tensile Tester is primarily used to determine the static mechanical properties of fabrics under controlled, low-speed, or constant-rate tensile conditions, in accordance with standards such as GB/T, ISO, ASTM, and other relevant testing specifications.
Core Functions
The tester is designed to evaluate the following properties of fabrics using either the strip method or the grab method:
Breaking Strength (Tensile Strength)
Elongation at Break
Specified Elongation Load
Elongation under Specified Load
Breaking Work (Energy to Break)
Elastic Recovery Rate
In addition, some advanced models can perform supplementary tests, including:
Seam Strength
Seam Slippage Resistance
Trapezoidal Tear Strength (with dedicated fixtures)
Other specialized tensile and fabric performance tests
Typical Applications
The Fabric Static Tensile Tester is widely used for quality control, product development, and research purposes in the testing of:
Woven fabrics
Knitted fabrics
Nonwoven materials
Seat belts and webbing materials
Industrial textiles
Garment fabrics
Technical and functional textile products
The instrument helps manufacturers and testing laboratories ensure compliance with international and national standards such as GB/T, ISO, and ASTM, thereby guaranteeing product quality, reliability, and safety.
It is extensively utilized in:
Textile manufacturing companies
Quality inspection and testing institutions
Universities and research laboratories
Apparel and fashion industries
Automotive textile manufacturers
Medical textile producers
Industrial fabric and technical textile sectors
By providing accurate and repeatable tensile performance data, the Fabric Static Tensile Tester serves as an essential tool for evaluating fabric durability, strength, and suitability for specific end-use applications.
Industries Served by the Fabric Static Tensile Tester
The Fabric Static Tensile Tester is widely used across various industries for evaluating the tensile properties, durability, and mechanical performance of textile and flexible materials. Its primary application sectors include:
1. Textile and Apparel Industry
The tester is extensively used to evaluate the tensile strength, breaking force, and elongation at break of various fabrics, including:
Cotton fabrics
Polyester fabrics
Nylon fabrics
Knitted textiles
Nonwoven fabrics
It plays a vital role in quality control, product development, and compliance with national and international testing standards.
2. Technical and Industrial Textiles
Industrial textiles often require superior mechanical performance and safety characteristics. The Fabric Static Tensile Tester is used to assess materials such as:
Seat belts and webbing
Ropes and cords
Industrial filter fabrics
Geotextiles
Medical protective clothing
High-strength technical fabrics
The instrument helps verify the strength, durability, and safety performance of these products before commercial use.
3. Footwear, Headwear, and Leather Goods Industry
Manufacturers use the tester to evaluate the tensile durability and mechanical properties of:
Fabric linings
Shoe upper materials
Synthetic leather materials
Textile components used in bags and luggage
Testing ensures that products meet the performance requirements and industry standards of the footwear and leather goods sectors.
4. Automotive and Transportation Interiors
The Fabric Static Tensile Tester is widely applied in the automotive industry to assess the strength and durability of interior textile materials, including:
Seat upholstery fabrics
Airbag fabrics
Headliner materials
Interior trim textiles
The collected data helps manufacturers improve product reliability, passenger safety, and service life.
5. Packaging and Flexible Materials Industry
The instrument is also suitable for testing the tensile properties of flexible packaging materials, such as:
Composite fabrics
Woven sacks
Flexible packaging films
Reinforced packaging materials
These tests ensure product reliability during transportation, storage, and end-use applications.
6. Research Institutes and Quality Inspection Organizations
Universities, research institutes, and third-party testing laboratories use the tester for:
Material research and development
Standardized testing procedures
Product certification
Arbitration and compliance testing
It serves as an essential tool for generating accurate and repeatable tensile performance data.
7. Nonwoven and Filtration Materials Industry
The tester is commonly used to evaluate the tensile performance of nonwoven and filtration materials, including:
Melt-blown fabrics
Spunbond nonwoven fabrics
Medical hygiene materials
Environmental protection and filtration media
These tests help ensure that the materials meet the mechanical performance requirements of medical, sanitary, filtration, and environmental applications.
Thanks to its versatility and high testing accuracy, the Fabric Static Tensile Tester has become an indispensable instrument in textile manufacturing, industrial materials production, automotive applications, packaging industries, research institutions, and quality inspection laboratories. It provides reliable data for product development, quality assurance, and compliance with international standards such as GB/T, ISO, ASTM, EN, and JIS.
Technical Features of the Fabric Static Tensile Tester
1. Premium Stainless-Steel Construction
The tester is manufactured with a high-quality stainless-steel housing featuring an elegant and modern design. The robust structure offers excellent corrosion resistance and effectively withstands environmental influences, significantly extending the service life of the equipment and ensuring long-term operational stability.
2. Advanced Computer-Controlled System
Equipped with an advanced computer control system and a high-definition digital display, the tester enables precise operation and real-time monitoring throughout the testing process. With a positioning accuracy of up to 0.01 mm, the system delivers highly accurate, reliable, and repeatable test results.

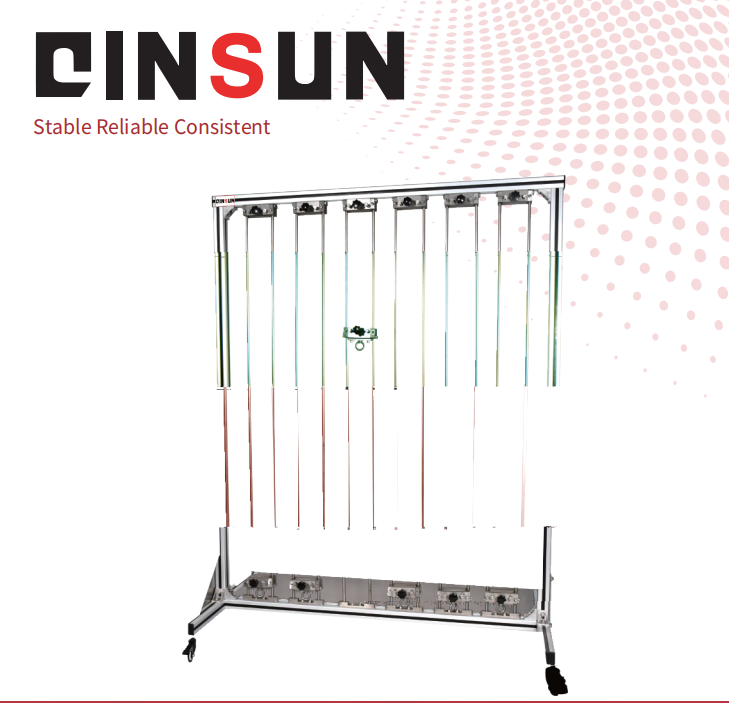

3. Six Independent Testing Stations
The instrument features six independent testing stations, allowing up to six different tests to be conducted simultaneously. Each station is equipped with its own timer and dedicated functional modules, ensuring that individual tests operate independently without interference. This design improves testing efficiency while maintaining accurate data acquisition and processing for every test specimen.
Operating Procedure of the Fabric Static Tensile Tester2
1. Specimen Preparation
Prepare rectangular test specimens according to the applicable testing standard. Common specimen dimensions include 50 × 200 mm or 25 × 200 mm. Use a vernier caliper to accurately measure the specimen width and thickness, and mark the original gauge length. Ensure that the specimen edges are free from fraying, defects, or any form of damage that may affect the test results.
2. Equipment Preparation
Connect the power supply and switch on the tester. Allow the instrument to warm up for 10–15 minutes before testing. Select a load cell with an appropriate measurement range based on the expected tensile strength of the fabric. Install the suitable grips, such as pneumatic flat grips or anti-slip clamps, according to the test requirements. Calibrate and zero the force and displacement measurement systems, then launch the testing software and create a new test program.
3. Parameter Configuration
In the testing software, select the Static Tensile Test mode and configure the required test parameters. Set the tensile speed, typically between 100–300 mm/min, depending on the applicable standard. Define the test termination condition, such as specimen breakage or a specified elongation limit. Enter the specimen dimensions to enable automatic calculation of stress and strain values.
4. Specimen Clamping
Carefully align the specimen and secure it between the upper and lower grips. Ensure that the specimen's centerline is aligned with the tensile loading direction and that no pre-tension is applied during mounting. After clamping, gently pull the specimen manually to confirm that no slippage occurs. If an extensometer is used to measure elongation, install it accurately within the gauge length area.
5. Pre-Test Inspection
Perform a preliminary check by moving the crosshead slightly to verify smooth operation and ensure that no abnormal noise is present. Confirm that all protective covers are properly installed and that the emergency stop button functions correctly. Ensure that all personnel remain clear of the gripping area and the potential specimen break zone.
6. Test Execution
Click the Start button to begin the test. The machine will stretch the specimen at a constant rate until failure occurs or the preset termination condition is reached. During the test, continuously monitor the force-displacement curve displayed by the software. If specimen rupture occurs within the grip area or less than 25 mm from the grip, the result is generally considered invalid and an additional test should be conducted.
7. Result Recording and Equipment Cleaning
Upon completion of the test, the software automatically generates key results, including:
Breaking Strength
Elongation at Break
Load-Elongation Curve
Other relevant tensile performance parameters
Remove the tested specimen, clean any debris from the grips, and return the crosshead to a safe position. Save the test data, generate the test report, and switch off the power supply after testing is completed.
8. Repetition and Calibration
For statistical reliability, each test group should include at least five valid specimens. To maintain measurement accuracy and compliance with testing standards, the load cell and displacement encoder should be calibrated periodically, typically once per year by an accredited metrology or calibration institution.
Following the correct operating procedure ensures accurate, repeatable, and reliable tensile testing results. Proper specimen preparation, parameter setup, equipment calibration, and test execution are essential for evaluating the mechanical performance of fabrics and ensuring compliance with GB/T, ISO, ASTM, EN, and other international testing standards.
Key Tips for Selecting a Fabric Static Tensile Tester
Choosing the right Fabric Static Tensile Tester requires careful consideration of technical specifications, reliability, compliance requirements, and practical testing needs. The following factors can help ensure that you select a system that delivers accurate, efficient, and cost-effective performance.
1. Accuracy and Calibration Capability
Accuracy is one of the most critical factors when selecting a tensile testing instrument. It is recommended to choose a tester equipped with a high-precision load cell, typically offering an accuracy of ±1% or better across the measuring range.
In addition, ensure that the instrument supports regular calibration and verification procedures to maintain long-term measurement reliability. Instruments with calibration traceability to internationally recognized standards, such as NIST or equivalent organizations, provide greater confidence in test results and regulatory compliance.
2. Application Suitability and Standards Compliance
Before purchasing, verify that the tester complies with the testing standards relevant to your industry, including:ISO standards，ASTM standards，GB/T standards，EN standards，Other applicable national or international specifications
It is equally important to confirm that the available grips and fixtures are suitable for your materials. Different fabric types, ranging from lightweight sheer fabrics to heavy-duty canvas and industrial textiles, require different clamping solutions to prevent slippage and ensure accurate testing results.
3. Brand Reputation and After-Sales Support
Selecting a reputable manufacturer can significantly reduce maintenance costs and operational risks. Consider the following factors:
Industry reputation and years of experience
Customer reviews and user feedback
Availability of technical support
Spare parts supply and service response time
Training and installation assistance
While imported brands may offer highly stable performance and advanced technology, it is advisable to verify the qualifications and service capabilities of their local distributors or agents to ensure prompt support when needed.
4. Ease of Operation and Software Functionality
A modern tensile testing system should provide an intuitive and user-friendly software interface that simplifies testing procedures and data management.
Key software features to consider include:
Real-time force-displacement curve display
Automatic calculation of test results
Data storage and retrieval functions
Export to Excel, PDF, or other formats
Automatic report generation
Multi-language operation support
A well-designed software platform can improve testing efficiency while minimizing operator training requirements and the risk of human error.
5. Cost-Effectiveness and Return on Investment
When evaluating different models, it is important to balance performance requirements with budget considerations. Purchasing an excessively sophisticated system may result in unnecessary costs, while choosing a low-cost model with limited functionality could affect testing accuracy and productivity.
A practical approach is to:
Define your actual testing requirements
Compare specifications from multiple suppliers
Evaluate long-term maintenance and operating costs
Request sample testing demonstrations before purchase
Conducting tests on your own fabric samples is one of the most effective ways to verify whether the instrument meets your performance expectations and application needs.
The ideal Fabric Static Tensile Tester should provide high accuracy, broad standards compatibility, reliable performance, user-friendly operation, and strong after-sales support. By carefully evaluating these factors and validating performance through sample testing, manufacturers and laboratories can make a well-informed investment that enhances testing efficiency, product quality, and compliance with international textile testing standards.
Importance of the Fabric Static Tensile Tester
The Fabric Static Tensile Tester is an essential testing instrument for the textile industry because it provides standardized and accurate measurements of a fabric's key mechanical properties under controlled tensile loading conditions. Parameters such as breaking strength, elongation at break, tensile energy, and elastic performance can be precisely evaluated, providing critical data for quality control, product development, and compliance with international standards.
1. Ensuring Product Quality and Consistency
By conducting tests in accordance with internationally recognized standards such as ASTM, ISO, and GB/T, the Fabric Static Tensile Tester helps manufacturers verify that fabrics possess the required strength, durability, and performance characteristics for their intended applications.
Whether used for:
Apparel fabrics
Industrial textiles
Medical and protective materials
Technical fabrics
the tester ensures consistent product quality and reduces the risk of performance failures during actual use.
2. Driving Material Development and Innovation
As the textile industry continues to evolve, manufacturers are constantly developing new fibers, fabric structures, and finishing technologies. The Fabric Static Tensile Tester provides quantifiable mechanical performance data that enables researchers and engineers to evaluate and optimize new materials.
It plays a crucial role in the development of:
High-strength lightweight fabrics
Stretch and performance textiles
Composite materials
Advanced technical textiles
Sustainable and eco-friendly fabrics
By providing objective performance measurements, the tester accelerates innovation and supports continuous product improvement.
3. Meeting Industry Regulations and Customer Requirements
Many industries require certified tensile performance data before products can be approved for use or released to the market. The Fabric Static Tensile Tester serves as a fundamental tool for generating compliance reports and supporting product certification.
This is particularly important for applications such as:
Automotive interior textiles
Airbag fabrics
Geotextiles
Protective clothing
Sports equipment
Industrial safety products
Reliable tensile testing helps manufacturers demonstrate compliance with customer specifications and regulatory requirements.
4. Preventing Product Failure and Enhancing Safety
Tensile testing allows manufacturers to identify potential weaknesses before products reach the market. Issues such as:
Insufficient breaking strength
Low elongation capacity leading to brittle failure
Uneven stress distribution
Material defects or inconsistencies
can be detected and corrected during the development and production stages.
This capability is especially critical in safety-related applications, including:
Aerospace textiles
Rescue and emergency equipment
Personal protective equipment (PPE)
Automotive safety systems
In these sectors, material failure can have serious consequences, making reliable tensile testing indispensable.
5. The Unique Value of Static Tensile Testing
While dynamic and impact testing methods are also important, static tensile testing provides fundamental material performance data that cannot be replaced by other test methods.
Static tensile tests simulate slow and stable loading conditions commonly encountered during:
Wearing and daily use
Sewing and assembly processes
Installation and deployment
Long-term service conditions
The resulting data serves as a basic "mechanical fingerprint" of the material and is frequently used for:
Material characterization
Batch-to-batch comparison
Quality assurance programs
Finite element analysis (FEA) validation
Engineering simulations and performance prediction
For this reason, static tensile testing remains a foundational evaluation method throughout the textile industry.
As a fundamental testing instrument, the Fabric Static Tensile Tester plays a vital role across the textile, apparel, industrial nonwoven, technical textile, and composite material industries. It is not only an indispensable tool for incoming raw material inspection but also a critical component of final product quality assurance.The accuracy and reliability of tensile testing data directly influence production efficiency, cost control, product safety, regulatory compliance, and market acceptance. By providing dependable mechanical performance evaluations, the Fabric Static Tensile Tester helps manufacturers enhance product quality, reduce risk, and maintain competitiveness in global markets.If you would like to learn more about the Fabric Static Tensile Tester, its technical specifications, testing standards, or application solutions, please feel free to leave a message or contact us directly. Our team will be pleased to provide comprehensive product information, customized testing solutions, and professional technical support tailored to your specific requirements.
