What is Luer conical joint multi-function tester?

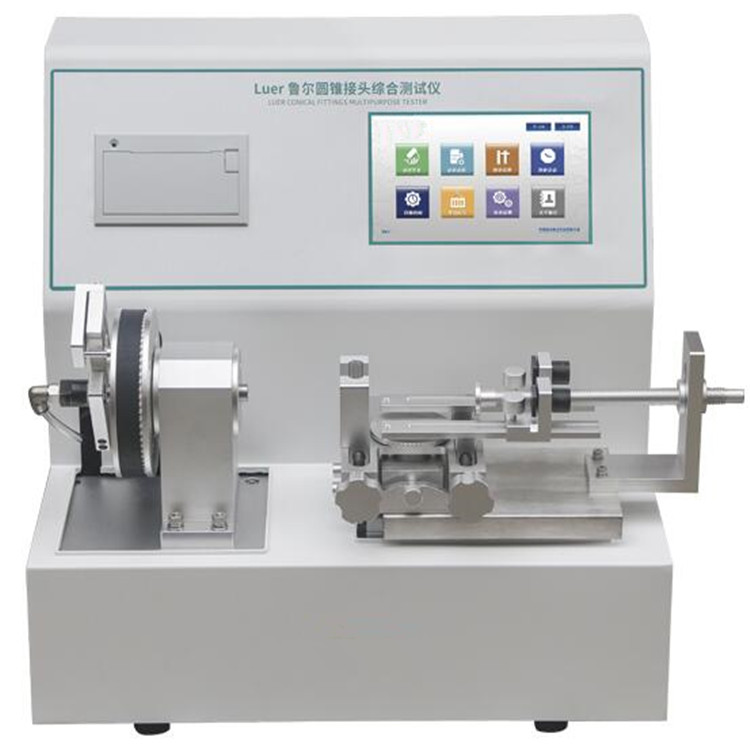

In the field of medical devices and healthcare, the safety and reliability of connectors are directly related to the life and health of patients. As one of the most commonly used connection methods in medical equipment, the performance testing and compliance verification of Luer cone connectors are particularly important.The Luer Cone Connector Multifunctional Tester is a specialized device designed for testing and evaluating the performance of cone connectors. It is equipped with multiple testing functions and can meet the testing requirements of cone connectors with different specifications and materials, including both metal and non-metal connectors.The tester is equipped with high-precision sensors and measurement systems, enabling accurate measurement of various performance parameters of connectors, including diameter, angle, thread specifications, connection strength, and other key indicators. In addition, it supports multiple testing modes, allowing flexible selection according to different testing requirements, such as tensile testing, compression testing, and torque testing.

Components and Working Principle of Luer Cone Connector Multifunctional Tester

1. Equipment Components

The 6% Luer Cone Connector Comprehensive Tester usually consists of the following components:

Electric Hydraulic System:

Used to apply pressure loads and simulate actual operating conditions.

Force Sensor and Displacement Sensor:

Used to measure the force conditions and displacement changes of the connector during the testing process.

Data Acquisition System:

Used to collect and record test data in real time, ensuring the accuracy and reliability of test results.

Control System:

Adopts a PLC + ARM high-performance processor and a Linux operating system to achieve automatic control, data acquisition, and data processing.

User Interface:

Equipped with a color LCD touch screen with clear display and intuitive operation. Users can freely edit parameters and set testing conditions through the touch screen.

2. Working Principle

The working principle of the Luer Cone Connector Comprehensive Tester mainly includes the following aspects:

Mechanical Testing Principle:

By simulating actual usage conditions, the tester evaluates various mechanical performance indicators of the connector.

Sealing Performance Testing Principle:

A specified pressure is applied to the connector to detect whether gas or liquid leakage occurs, thereby evaluating the sealing performance of the connector.

Functions and Features of Luer Cone Connector Multifunctional Tester

1. Main Functions

Sealing Performance Test:

The tester detects leakage conditions of connectors under different pressure levels, which is essential for ensuring that no leakage occurs during medical fluid injection processes. For example, in the production of medical devices such as infusion sets and syringes, excellent sealing performance is the foundation for ensuring accurate drug delivery.

Flow Rate Test:

The tester can simulate the process of medical fluid passing through the connector and measure its flow rate, ensuring that the connector can smoothly deliver medical fluids and guaranteeing the normal operation of medical equipment.

Pressure Resistance Test:

By applying high pressure, the tester evaluates the pressure resistance performance of connectors to ensure that they will not rupture or deform under high-pressure conditions. This function is particularly important for connectors used in medical devices such as high-pressure syringes that need to withstand high operating pressures.

Connection Reliability Test:

The tester evaluates the tightness and stability of the connector connection, ensuring that the connector is not easily detached or loosened during use and providing safety assurance for medical procedures.

Pressure Test:

The tester can evaluate the sealing performance and pressure resistance of connectors under both positive pressure and negative pressure conditions, providing a comprehensive assessment of connector performance under different pressure environments.

Leakage Detection:

The tester monitors whether leakage occurs at the connection area in real time, identifies potential safety hazards promptly, and ensures connection safety.

2. Features

High Accuracy:

The tester adopts high-precision sensors and measurement technologies to ensure the accuracy and reliability of test results, providing precise data support for the quality control of medical devices.

Multi-functionality:

The equipment integrates multiple testing functions and can comprehensively evaluate various performance aspects of connectors, meeting different testing requirements.

Automation:

The testing process is highly automated, reducing manual operation, improving testing efficiency, and enhancing the consistency of test results.

Traceability:

Test data can be recorded, stored, and traced, facilitating quality control and problem investigation. This plays an important role in product quality supervision and continuous improvement.

User-friendly Design:

The equipment features simple and convenient operation with a human-oriented design. Users can perform tests after basic parameter settings, reducing the requirements for operator expertise.

Portable Design:

Some models adopt a portable design, making them suitable for both on-site testing and laboratory applications, allowing convenient inspections in different working environments.

Testing Range of Luer Cone Connector Multifunctional Tester

The Luer Cone Connector Tester is a specialized device used for evaluating the performance of cone connectors. Its core function is to simulate actual usage conditions and comprehensively evaluate the sealing performance, connection strength, durability, and safety of connectors. The main testing items include:

(1) Liquid Leakage Test

By applying positive or negative pressure inside the connector, the tester detects liquid leakage to ensure that no leakage occurs during infusion processes.

(2) Air Leakage Test

The tester evaluates the sealing performance of connectors under gas pressure conditions and is suitable for devices requiring high airtightness performance, such as anesthesia filters.

(3) Separation Force Test

The tester measures the separation threshold of connectors under axial tensile force to verify the connection strength.

(4) Unscrewing Torque Test

The tester evaluates the anti-rotation capability of locking connectors to prevent the risk of accidental loosening during clinical use.

(5) Stress Cracking Test

By applying pressure for an extended period, the tester evaluates whether the connector material develops cracks due to stress concentration.

(6) Strip Resistance Test

The tester verifies the thread wear resistance of connectors during repeated connection and disconnection operations, ensuring reliable threaded connection performance.

Application Value of the Instrument in Medical Quality Control

In the medical device manufacturing process, the Luer Cone Connector Multifunctional Tester plays a critical role in quality assurance. Every batch of manufactured Luer connectors must undergo strict performance testing to ensure that they are fully compatible with standard connectors produced by other manufacturers on the market. The intelligent evaluation system equipped in the tester can automatically compare test results with standard requirements and directly generate clear pass/fail conclusions, greatly improving inspection efficiency and testing accuracy.

For manufacturers of medical products such as infusion sets and syringes, this tester is an essential core device in their quality control processes. According to statistics, companies that use the tester for full inspection can reduce their product defect rate by more than 60% on average.

In hospital equipment management departments, this tester also plays an important role. Regular performance testing of Luer connectors in medical equipment currently in use can help identify wear and aging problems caused by long-term operation in a timely manner, reducing the risk of connection failure during clinical use. The tester adopts a portable design, allowing convenient transfer and use between different departments. In addition, its rapid testing function, with a single test taking only 2–3 minutes, ensures that inspection work does not interfere with normal medical operations.

In conclusion, the Luer Cone Connector Multifunctional Tester is a highly practical professional testing device that can accurately measure and evaluate the performance and quality of Luer cone connectors. Equipped with multiple testing functions, the tester can meet the requirements of different users while offering advantages such as simple operation, convenient use, safety, and reliability. We sincerely welcome you to leave a message or contact us directly, and we will provide more detailed product information.
