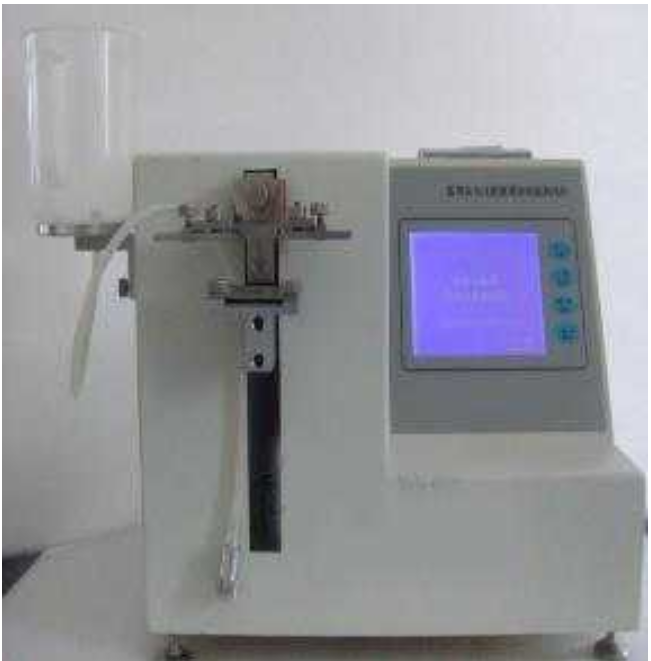

Composition and Working Principle of Syringe Sliding Performance Tester
The Syringe Sliding Performance Tester is generally composed of a control system, loading system, measurement system, and data processing system.
The control system is responsible for setting the operating parameters of the testing equipment and completing data acquisition.
The loading system is used to simulate the pressure and friction forces experienced during actual syringe operation.
The measurement system accurately measures parameters such as the sliding distance and sliding speed of the syringe plunger.
The data processing system is responsible for processing, analyzing, and evaluating the collected test data.
The working principle of this equipment is based on friction mechanics theory. By simulating the force conditions experienced during the actual use of a syringe, it evaluates the sliding performance of the syringe.
During the test, the tester records parameters including the plunger sliding distance, sliding speed, pushing force, and resistance force under different loading conditions. By analyzing these measured values, the equipment can accurately evaluate the smoothness, stability, and operational performance of the syringe during injection, ensuring that the product meets relevant quality standards and application requirements.
Applications of Syringe Sliding Performance Tester
1. Quality Control and Safety Assurance
Plunger Friction Force Testing
By using high-precision sensors to measure the pushing force during plunger movement, the tester quantitatively evaluates the friction characteristics of the syringe plunger. This ensures smooth plunger operation and helps prevent potential medical risks caused by problems such as sticking, excessive resistance, or liquid leakage.
Compliance with Standard Requirements
The tester is used to verify whether syringe products comply with relevant industry standards and regulatory requirements, ensuring the compliance and reliability of products entering the market.
2. Support for Research and Development Innovation
Material and Design Optimization
The tester provides a performance verification platform for syringes using new low-friction materials, such as advanced coating technologies, or adopting innovative structural designs. It helps manufacturers optimize product performance and promote technological development.
Dynamic Performance Evaluation
The equipment can simulate different application conditions, such as low-pressure slow injection and high-pressure rapid injection, to evaluate the stability, reliability, and durability of the syringe plunger under complex operating conditions.
3. Applications in Industrial Processes
Pharmaceutical Manufacturing and Production
The tester ensures that products such as pre-filled syringes meet required sliding performance specifications, supporting precise drug delivery requirements for applications including biological medicines and advanced pharmaceutical products.
Quality Inspection and Regulatory Control
As a specialized tool for national sampling inspections and enterprise quality control, the tester helps identify non-conforming products, maintain product quality, and safeguard public health.
Operating Procedure of Syringe Sliding Performance Tester
In medical device quality inspection, the Syringe Sliding Performance Tester is an essential piece of equipment for ensuring that syringe products meet relevant quality standards. Proper operation of the tester plays an important role in guaranteeing medical safety. The following section introduces the detailed operating procedure.
1. Preparation Before Testing
First, place the tester on a stable and level workbench to prevent environmental factors from affecting test accuracy. Check whether the power connection is normal and ensure that all components are properly installed without looseness or damage.
According to the specifications of the syringe to be tested, select the appropriate fixture and test parameters. Since syringes of different specifications vary in size and capacity, suitable fixtures ensure stable fixation during testing, while accurate parameter settings provide the foundation for reliable test results.
2. Sample Installation
Carefully clean the syringe sample to remove surface impurities and contaminants that may interfere with the test results. Place the syringe smoothly into the fixture of the tester, ensuring that the syringe barrel is securely clamped, the plunger rod can move freely, and it is correctly connected with the driving mechanism of the tester.
During installation, avoid applying additional damage or deformation to the syringe, as this may affect the actual evaluation of its sliding performance.
3. Parameter Setting
Turn on the control panel of the tester and set the key test parameters according to the relevant testing standards and requirements, including:
Testing speed: The speed should simulate the actual operating conditions of syringe use and is generally set according to applicable industry standards or product specifications.
Testing distance: The stroke distance should be determined according to the syringe travel range and specific testing requirements.
After completing the settings, carefully verify all parameters before proceeding to the next step.
4. Starting the Test
After confirming that all preparations are complete, press the start button. The tester will automatically operate according to the preset parameters.
During the test, the operator should closely observe the sliding behavior of the syringe and check for issues such as:
Plunger sticking;
Abnormal resistance;
Irregular movement.
At the same time, the tester continuously records important data, including plunger displacement and force values, and displays the test results on the control panel in real time.
5. Data Recording and Analysis
After the test is completed, the tester automatically generates a test report containing key sliding performance data, such as:
Maximum sliding resistance;
Average sliding resistance;
Other related performance parameters.
The operator should carefully record and compare the obtained data with the specified standard values.
If the test results meet the requirements, the syringe is considered qualified in terms of sliding performance. If the results exceed the allowable range, further investigation is required to identify possible causes, such as:
Excessive tightness between the plunger and syringe barrel;
Insufficient or improper lubrication;
Poor component matching accuracy.
6. Cleaning and Maintenance After Testing
After completing the test, turn off the power supply, remove the tested syringe from the fixture, and clean and maintain the tester properly. Regular maintenance helps extend the service life of the equipment and ensures reliable performance for future testing.
Proper operation of the Syringe Sliding Performance Tester provides accurate and reliable data support for syringe quality evaluation, helping ensure the safety, effectiveness, and reliability of medical devices. Operators should strictly follow the specified procedures to guarantee accurate and repeatable test results.
Functions and Industry Applications of Syringe Sliding Performance Tester
Medical syringes are widely used basic medical devices in clinical practice, and their quality directly affects drug delivery accuracy and patient safety. Among the various performance indicators of syringes, sliding performance is a critical parameter, as it determines the smoothness of drug injection and the force feedback experienced by operators during use.
The Medical Syringe Sliding Performance Tester is a specialized device designed to evaluate this performance and has gradually become a standard testing instrument in medical device quality inspection processes.
Core Functions
The primary function of the Medical Syringe Sliding Performance Tester is to simulate the pushing and pulling actions of a syringe during actual operation and record the changes in force required for plunger movement through high-precision sensors.
From the perspective of its working principle, the tester uses a servo motor or stepper motor as the power source. The driving mechanism moves the plunger rod forward at a constant speed through a lead screw or synchronous belt transmission system.
The sensor converts mechanical force into electrical signals, which are then amplified and converted through analog-to-digital processing before being transmitted to the processor. Based on preset stroke and speed conditions, the software calculates the average and peak force values at different stages of the plunger movement.
This design ensures excellent test repeatability and comparability, providing objective evaluation data for syringe manufacturers and quality inspection organizations.
Industry Applications
In practical applications, the Medical Syringe Sliding Performance Tester is mainly used in the following areas:
1. Syringe Manufacturing Quality Control
Before shipment, syringe manufacturers use the tester to conduct sampling inspections or full inspections on production batches to ensure that sliding performance meets registration requirements and quality standards.
2. Third-Party Testing and Certification
Third-party testing laboratories use the equipment for commissioned performance testing and type verification to determine whether syringe designs comply with relevant regulations and technical requirements.
3. Medical Institution Incoming Inspection
Medical institutions can use the tester during purchasing acceptance or quality verification processes to evaluate syringe performance and reduce potential risks during clinical operations.
4. Research and Product Development
R&D departments use the instrument to compare the performance of syringes made from different materials or with different structural designs, helping optimize product design and improve overall performance.
Factors Affecting Test Results
It should be noted that the test results of the Medical Syringe Sliding Performance Tester are influenced by multiple factors, including:
Syringe material properties;
Uniformity of lubricant coating;
Matching tolerance between the plunger and syringe barrel;
Temperature and humidity conditions during testing.
Therefore, standardized testing conditions and proper operating procedures are equally important.
Operators need to regularly calibrate sensors and select appropriate testing speed and stroke length according to applicable standards to obtain accurate and reliable test data.
Technology Development Trends
With increasingly strict medical device regulatory requirements, the technology of the Medical Syringe Sliding Performance Tester continues to advance.
Some advanced models are now equipped with features such as:
Multi-channel synchronous testing;
Automatic sample clamping;
Cloud-based data storage;
Remote software upgrades.
These functions further improve testing efficiency and enhance data traceability.
Meanwhile, optimization of testing software, including noise filtering and peak recognition algorithms, enables more accurate force analysis under complex test curves. These technological improvements allow the equipment to better meet the testing requirements of syringes with different specifications and material structures.
Importance in Medical Device Quality Management
From an industry perspective, the Medical Syringe Sliding Performance Tester is not merely a single-purpose testing tool. It is an important part of syringe quality management throughout the entire product lifecycle.
It helps:
Manufacturers identify production process defects;
Regulatory authorities monitor product consistency;
Medical users obtain safer and more reliable products.
Therefore, the application level of this type of testing equipment has become an important indicator reflecting the quality control capability of the medical device industry.
Conclusion
In summary, the Medical Syringe Sliding Performance Tester provides a reliable method for quantitative evaluation of syringe sliding performance based on objective force measurement data.By understanding its testing principles, application scenarios, and technological development trends, the role of this professional testing instrument in the medical device quality assurance system can be better recognized.Whether in the manufacturing stage or clinical application stage, proper use of this equipment helps improve the overall reliability, safety, and performance consistency of syringe products.We sincerely welcome your inquiries and discussions. Please feel free to contact us for more detailed product information and technical support.
