What is a safety footwear electrical hazard tester?
2026/07/29
Share:
Structural Design of Safety Shoe Electrostatic Withstand Voltage Tester
The Safety Shoe Electrostatic Withstand Voltage Tester is mainly composed of the following components:

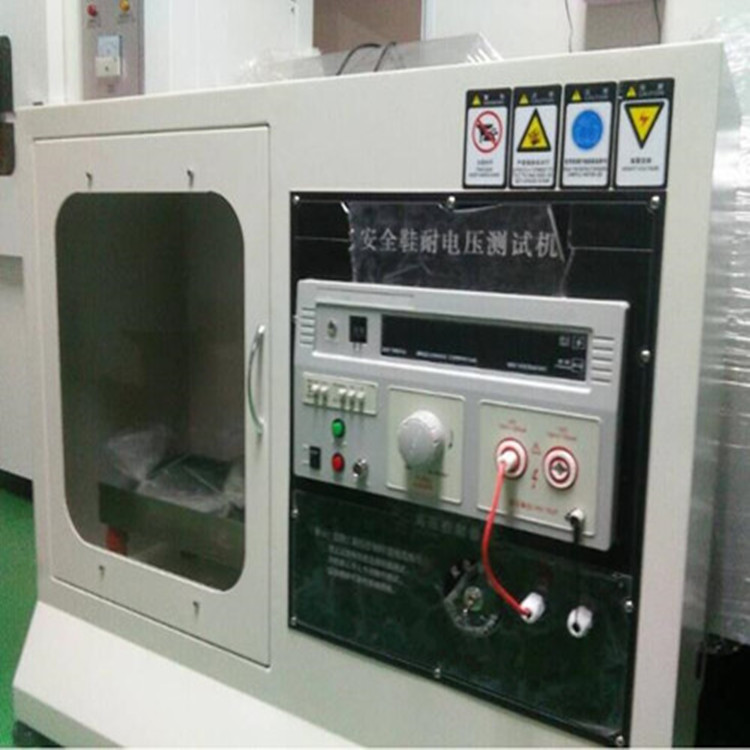

1. Main Unit
The main unit is the core part of the equipment, mainly consisting of a power supply, control circuit, testing circuit, and other components. The power supply provides the required operating power for the equipment; the control circuit is responsible for controlling the operation of the entire system; and the testing circuit performs the electrostatic withstand voltage test on safety shoes.
2. Discharge Rod
The discharge rod is one of the main components of the equipment and is used to simulate electrostatic discharge conditions. The discharge rod is usually made of metal materials and has a certain inductance. During the testing process, it can generate high-voltage pulses to discharge the safety shoes and evaluate their electrostatic protection performance.
3. Sample Platform
The sample platform is used for placing the safety shoes under test and is generally made of insulating materials. The platform features high flatness to ensure the accuracy and reliability of test results.
4. Control System
The control system is mainly used to control equipment operation and the testing process. It can be operated through buttons, a touchscreen, or other methods. The system allows users to set test conditions, record test data, and perform other testing operations.
Working Principle of Safety Shoe Voltage Withstand Tester
The Safety Shoe Voltage Withstand Tester adopts the power frequency AC high-voltage testing principle and completes the entire testing process through a standardized high-voltage generation system, a precise current acquisition system, and an intelligent control system.

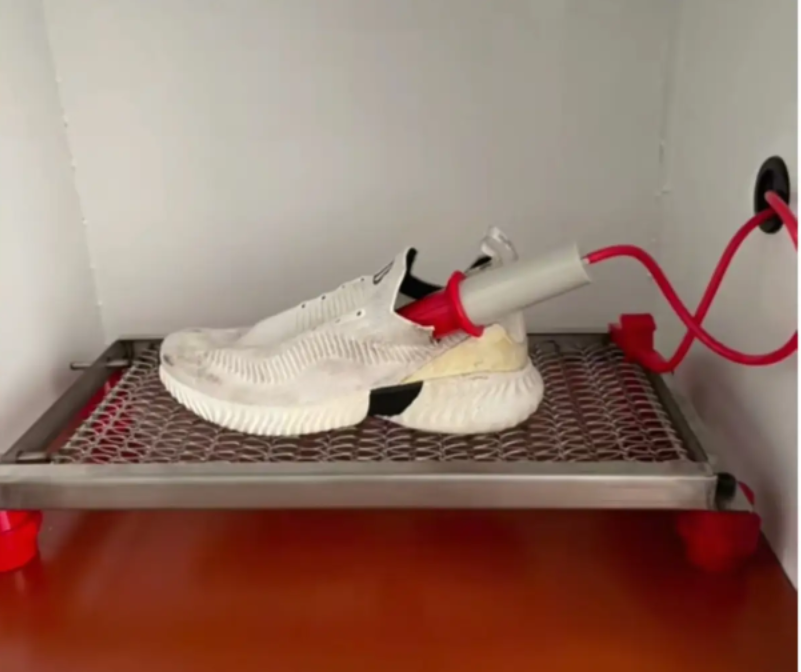

During testing, the built-in high-voltage generator of the equipment steadily increases the voltage at the specified rate according to national standards and continuously applies the rated high voltage to the finished safety shoes placed on the dedicated test station. The equipment is equipped with a simulated human body inner electrode and a simulated ground conductive outer electrode to fully reproduce the actual energized condition of personnel wearing safety shoes during operation.
Throughout the entire testing process, the instrument continuously and in real time monitors the leakage current value and voltage withstand status of the sample. Within the standard voltage holding time, if the sample shows no breakdown, no flashover, and no abnormal leakage current, and the leakage current remains within the allowable range specified by national standards, the insulation performance of the product can be determined to be qualified. If breakdown, spark discharge, or excessive leakage current occurs, the equipment automatically identifies the defective sample and records the test data.
The entire system eliminates manual testing errors through a precise electronic control system. The test data features high stability and excellent repeatability, enabling the equipment to meet various testing requirements, including batch inspection before shipment, type testing, and sample certification testing.
Operating Method and Precautions for Safety Shoe Voltage Withstand Tester
1. Operating Method
When using the Safety Shoe Electrostatic Withstand Voltage Tester for testing, the following procedures must be strictly followed to ensure the standardization of the testing process and the accuracy of test results:
1. Place the safety shoes steadily on the sample platform, ensuring that the shoe sole is in full contact with the surface of the sample platform. The contact must be stable and reliable, with no suspension or tilting, to guarantee a stable and dependable current path during the subsequent discharge test.
2. According to the preset testing standards or specific testing requirements, set detailed testing conditions through the control system. These conditions generally include, but are not limited to, the applied voltage level, the planned number of discharge cycles, the duration of each discharge, and the interval time between two consecutive discharges.
3. After confirming that all settings are correct, start the equipment. The device will operate according to the preset program and control the discharge rod to perform standardized electrostatic discharge simulation on the safety shoes placed on the sample platform. Throughout the entire discharge process, the built-in precision sensors and data acquisition system automatically and continuously record key parameters of each discharge event in real time, including the exact discharge time, leakage current passing through the shoe, voltage waveform variations, and other relevant data.
4. When all preset test cycles are completed or the test termination conditions are reached, the equipment will automatically stop the test. Subsequently, the internal data processing unit will comprehensively analyze, calculate, and organize the collected raw test data, and automatically generate a detailed test report. The report should fully include basic testing information such as the test date, operator information, test conditions (set parameters), complete test process data records, and preliminary data analysis charts.
5. The operator or quality inspection personnel should carefully review the generated test report and use the data and conclusions provided in the report to scientifically and objectively evaluate the anti-static performance of the tested safety shoes, determining whether they comply with relevant safety standards or usage requirements. Finally, appropriate follow-up actions should be taken according to the evaluation results, such as recording and releasing qualified products, or identifying, isolating, and analyzing the causes of non-conforming products.
2. Precautions
When using the Safety Shoe Electrostatic Withstand Voltage Tester, the following precautions should be observed:
1. Ensure that the equipment is properly grounded to prevent electric shock accidents.
2. Before testing, check whether the discharge rod is intact and free from damage. If any damage is found, it should be replaced immediately.
3. During the testing process, carefully observe whether the tested safety shoes show any abnormal phenomena, such as smoke generation or unusual odors. If any abnormal condition occurs, stop the test immediately and investigate the cause.
4. After completing the test, promptly clean dust and debris from the surface of the equipment to maintain cleanliness.
5. During operation, strictly follow relevant operating procedures and safety precautions to ensure the accuracy and reliability of test results.
The Importance of Safety Shoe Voltage Withstand Tester
The core importance of the Safety Shoe Voltage Withstand Tester lies in its ability to verify insulation integrity through standardized high-voltage simulation testing. It transforms potential "post-accident electric shock incidents" into "pre-accident defect detection and prevention," serving as the final physical safety barrier for protecting the lives of electrical workers.
Blocking Fatal Current Paths
The tester can accurately detect whether there are microscopic cracks, impurities, or manufacturing defects in the shoe sole and shoe body, ensuring that the current path from the human body to the ground can be effectively interrupted when accidental contact with live electrical equipment occurs, thereby preventing electric shock injuries and fatalities.
Identifying Hidden Aging and Damage Risks
Insulating materials gradually deteriorate over time due to factors such as wear, moisture, or chemical corrosion. The equipment can identify insulation failure risks that are invisible to the naked eye, preventing workers from being exposed to dangerous conditions due to overconfidence in protective equipment that appears to be intact.
Preventing Non-Conforming Products from Entering Worksites
As a mandatory inspection method before product delivery and during periodic re-inspection, the tester effectively eliminates products with breakdown, flashover, or excessive leakage current problems, preventing low-quality protective equipment from entering high-risk environments such as electrical construction, maintenance, and operation sites.
Conclusion
In summary, the Safety Shoe Electrostatic Withstand Voltage Tester is an extremely important testing device with broad application prospects and significant practical value. With continuous technological advancement and expanding application fields, this equipment will play an increasingly important role in the future, making greater contributions to protecting people's lives and property safety.If required, please feel free to contact us directly through telephone, email, or online consultation channels. Our professional technical team will provide detailed product information, operation guidance, and application solutions, while patiently answering all your questions regarding equipment selection, testing standards, operation, and maintenance.
