What is a kernel device?

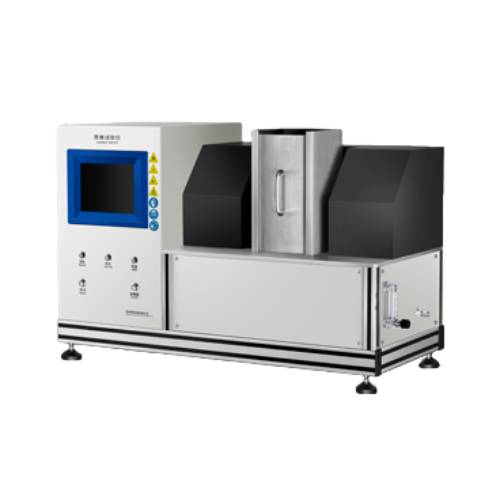

The Krahn Test is a specialized precision instrument used to determine the sensitivity of solid and liquid substances to high thermal effects under highly confined conditions. As a key tool for the classification of hazardous chemicals and safety transportation evaluation, this equipment provides a scientific basis for hazard identification by simulating extreme heating environments. It is widely applied in the fields of chemical engineering, pesticides, scientific research, and third-party testing.

Working Principle of Krahn Test Apparatus

The Krahn Test Apparatus simulates the rapid heating process under highly confined conditions and determines the thermal sensitivity and explosion hazard of substances under closed conditions by evaluating the degree of deformation or rupture of a standard steel tube caused by pressure generated from thermal decomposition of the tested material.

1. Sealed Sample Loading

The test substance (solid, liquid, or paste form) is placed into a standardized steel tube equipped with a metal orifice plate of a specified aperture diameter at one end, creating a confined space for testing.

2. Programmed Heating

A propane burner is used to uniformly heat the steel tube, simulating the temperature rise conditions that substances may experience during transportation or storage when exposed to fire environments.

3. Pressure Response

If the substance undergoes decomposition or explosive reaction under heating, the rapidly increasing internal pressure acts on the orifice plate and tube wall, causing different levels of deformation, swelling, cracking, or blockage of the orifice plate.

4. Limit Determination

By repeating the test with orifice plates of different aperture diameters, the maximum aperture diameter (limiting diameter) that can trigger an "explosive effect" is determined. This value is used to evaluate whether the substance exhibits a violent reaction under confined heating conditions.

Through this testing method, the Krahn Test Apparatus provides reliable technical data for the hazard classification, safety assessment, and transportation risk evaluation of solid and liquid substances.

Core Advantages of Krahn Test Apparatus

1. High Precision and Standardized Design

Stable Heating Rate Control

The equipment adopts propane gas heating, with a stable heating rate maintained at 3.3 ± 0.3 K/s, ensuring consistency of test conditions. For example, when testing certain metal powders, precise temperature control can accurately capture their thermal decomposition critical points and avoid misjudgment caused by inaccurate heating conditions.

High-Precision Timing System

The timing system provides a timing accuracy of ±0.1 s with a resolution of 0.01 s, and data fluctuation is controlled within 0.01 s, ensuring excellent test repeatability. For example, during continuous testing of a specific organic compound, the timing system can clearly distinguish time differences at the 0.05 s level, providing reliable support for result evaluation.

2. Fully Automated and Intelligent Operation

One-Click Testing Process

The system integrates automatic ignition, heating, timing, and data recording functions. Operators only need to place the sample and start the program to complete the entire testing process.

For example, the Krahn Test Apparatus developed by Hangzhou Yangyi Technology adopts an 8-inch touchscreen, supports Chinese and English language switching, and displays real-time test status, significantly simplifying operating procedures.

Remote Monitoring and Data Management

The equipment is equipped with a video monitoring system, supporting test process playback and remote result evaluation. Test data can be exported through WiFi or USB, enabling unattended testing.

For example, during long-duration tests conducted overnight, researchers can remotely monitor test status without remaining at the testing site, improving work efficiency and convenience.

3. Safety Protection and Humanized Design

Separated Structural Design

The testing section and control section are designed separately and equipped with an explosion-proof protective enclosure to prevent risks caused by combustion gas leakage or explosion impact.

For example, the Krahn Test Apparatus manufactured by SMS Company in the United States adopts a stainless-steel explosion-proof protection structure to ensure operator safety.

Multiple Safety Protection Mechanisms

The equipment incorporates multiple safety functions, including an emergency stop button, remote gas supply shut-off, and flashback protection, ensuring safe operation during testing.

For example, when an abnormal temperature condition occurs in the heating system, the equipment automatically cuts off the gas supply and activates an alarm, preventing equipment damage or fire hazards.

Fast Cleaning and Maintenance

The heating system is equipped with an openable front door, allowing convenient cleaning of the steel tube and burner after testing and reducing interference caused by residual materials.

For example, when continuously testing multiple samples, the cleaning function enables rapid sample replacement and improves overall testing efficiency.

Functions of Krahn Test Apparatus

1. Accurate Evaluation of Thermal Sensitivity Under Highly Confined Conditions

The most important function of the Krahn Test Apparatus is to accurately determine the sensitivity of solid, liquid, and paste-like substances to high thermal effects under highly confined simulated environments. The equipment places the tested substance into a specially designed steel tube equipped with a standard orifice plate, and then exposes the steel tube directly to a controllable flame for heating, simulating extreme conditions in which substances are exposed to high temperatures in a confined space.

2. Quantitative Assessment of Thermal Sensitivity Performance

The instrument strictly controls the heating rate at a stable level of 3.3 ± 0.3 K/s, ensuring highly consistent environmental conditions for each test. After the test is completed, technicians can evaluate the thermal sensitivity of the substance quantitatively by observing details such as the deformation and rupture degree of the steel tube, as well as the smoke generation and pressure changes produced during the reaction.

3. Providing Key Data for Hazard Identification and Classification

Within hazardous material management systems, the test results obtained from the Krahn Test Apparatus serve as an important basis for substance identification and classification. According to international standards, the thermal sensitivity data obtained through the Krahn test are incorporated as one of the key factors in hazardous material classification assessments.

4. Supporting Hazard Classification and Safety Management

If a substance demonstrates excessively high thermal sensitivity during testing, such as causing severe steel tube rupture at relatively low temperatures, it will be classified into a higher-risk category. Transportation, storage, and usage processes must then comply with stricter safety regulations.

Conversely, if the reaction is relatively mild, the substance may be classified as a lower-risk category, with corresponding management requirements reduced accordingly.

This classification method provides clear criteria for the entire life-cycle management of hazardous substances and helps prevent safety accidents caused by improper classification.

5. Ensuring Transportation Safety of Hazardous Materials

The test results provided by the Krahn Test Apparatus are directly related to whether substances can be transported safely. During logistics and transportation, goods may experience complex conditions such as high temperatures, compression, and impact. Especially inside enclosed containers or transport vehicles, accidental reactions of highly thermally sensitive substances may result in severe consequences.

By evaluating the thermal sensitivity of substances in advance, the instrument provides essential safety data for transportation risk assessment and helps ensure safe handling throughout the transportation process.

6. Supporting Safety Evaluation During Product Development and Manufacturing

During product research, development, and production stages, the Krahn Test Apparatus is an important tool for ensuring product safety. For energetic material-related products, such as propellants, explosives, and pyrotechnic materials, as well as components containing these materials, including small engines and ammunition fuzes, thermal safety evaluation through the Krahn test is required during the initial design stage.

7. Optimizing Product Design and Ensuring Production Quality

Researchers can adjust material formulations and optimize product structures according to test results, preventing safety risks caused by improper matching of material thermal sensitivity.

During mass production, regular sampling tests using the Krahn Test Apparatus can effectively monitor product quality stability, identify and remove non-conforming products in time, and ensure that every product leaving the factory complies with safety standards.

Through this process, safety risks caused by product quality issues can be prevented at the source, providing reliable protection for production safety and end-user safety.

In summary, the Krahn Test Apparatus, as a key instrument for evaluating the thermal sensitivity and reaction intensity of materials under specific high-temperature and high-pressure conditions, provides significant guidance for product development, quality control, and safe production. It not only helps researchers gain a deeper understanding of the thermal stability and potential risks of materials but also provides scientific support for safety monitoring during production processes, thereby effectively preventing various safety hazards caused by improper matching of material thermal sensitivity.Therefore, this equipment deserves significant attention and recognition. If you would like to learn more about the technical specifications, application cases, or purchasing information of the Krahn Test Apparatus, please feel free to contact us at any time. Our professional team will provide you with more comprehensive and detailed equipment information, technical consultation, and application guidance.
