What is a glass bottle internal pressure resistance tester?

Glass bottles are important packaging materials widely used in many industries, including food, cosmetics, and chemical products. Due to their excellent sealing performance and protective properties, glass bottles are extensively applied for packaging various products. However, if glass bottles burst due to excessive internal pressure during filling, sterilization, transportation, or storage, it may not only result in product loss but also cause potential safety accidents.Therefore, to ensure the quality and safety of glass bottles, internal pressure resistance testing is of great importance. By evaluating the pressure-bearing capacity and safety margin of glass bottles, manufacturers can effectively identify potential risks, optimize production processes, and ensure reliable performance throughout the product lifecycle.

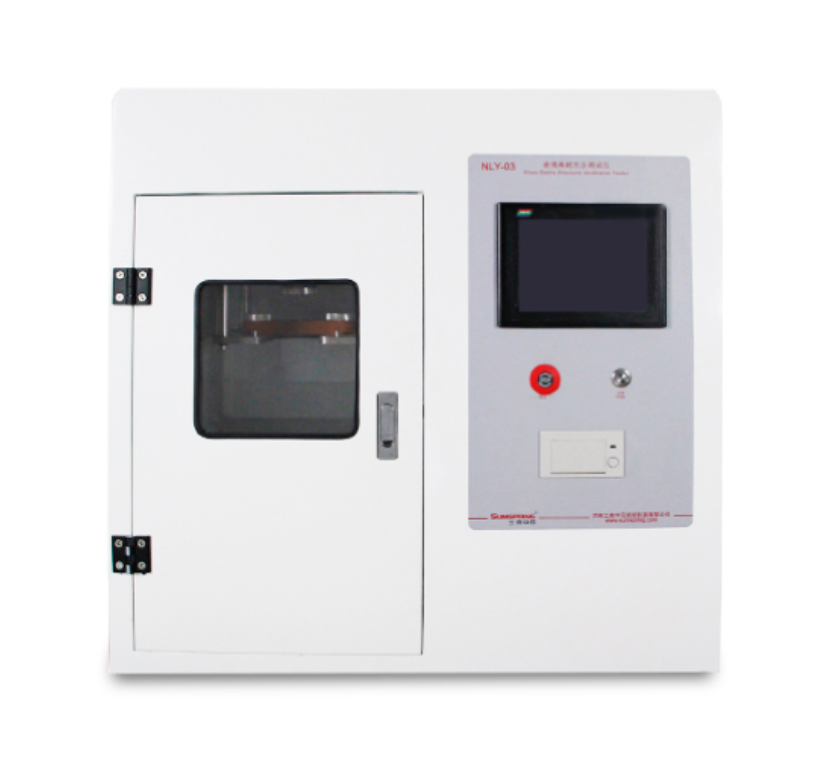

Structure and Working Principle of Glass Bottle Internal Pressure Resistance Testing Machine

The Glass Bottle Internal Pressure Resistance Testing Machine mainly consists of the following components: pressure pump, pressure sensor, control unit, and safety protection device. The pressure pump is used to generate high-pressure liquid; the pressure sensor is responsible for measuring pressure changes inside the glass bottle; the control unit controls the entire testing process and processes test data; while the safety protection device ensures operational safety during testing.

The working principle is mainly based on placing the glass bottle to be tested inside the testing machine and then injecting high-pressure liquid into the bottle through the pressure pump. Meanwhile, the pressure sensor continuously monitors the internal pressure changes of the bottle in real time. The control unit evaluates whether the glass bottle meets the required standards by comparing the preset pressure value with the actual measured pressure value.

If the glass bottle does not rupture or show any abnormal phenomena within the specified test duration, it indicates that the bottle has good internal pressure resistance performance and can safely withstand pressure variations during filling, sterilization, transportation, and storage processes.

Features of Glass Bottle Internal Pressure Resistance Testing Machine

1. Color LCD Display

Equipped with a large-size color LCD screen, the machine can display each measurement value and statistical data in real time during the testing process. The clear and intuitive data presentation allows operators to easily monitor test progress and quickly understand test results.

2. Multiple Testing Modes

The equipment supports various testing modes, including constant pressure holding test, pressure increasing without holding test, and burst test, meeting different internal pressure testing requirements for various types of glass bottles.

3. Intelligent Touchscreen Operation

The system adopts touchscreen control, providing simple and intuitive operation. It effectively reduces the risk of human errors caused by complicated operating procedures and improves testing efficiency.

4. Data Storage and Printing Function

The equipment can store multiple groups of test data. Each group contains 10 measurement values. It is also equipped with a built-in micro printer, allowing rapid printing of test results for convenient recording, comparison, and analysis.

5. High-Speed Processing and Precise Control

With a high-performance processing chip, the system can quickly respond to pressure changes and adjust the pressurization process in real time, ensuring accurate pressure increase control and reliable test results.

6. Online Upgrade and Customized Services

The equipment supports ISP online upgrade functions and can provide customized services according to user requirements, ensuring that the instrument remains consistent with updated testing standards and application needs.

7. Simplified Hydraulic System Design

The machine adopts a simplified hydraulic system structure, reducing the possibility of leakage and making equipment maintenance more convenient and efficient.

Application Scenarios: Covering Full-Life-Cycle Quality Control

1. Quality Control During Production

During the manufacturing process of ampoules, internal pressure resistance testing can quickly identify defective products with uneven wall thickness, excessive internal stress, or annealing process defects. For example, after introducing the testing machine, a company discovered that a batch of ampoules ruptured at only 0.45 MPa. Further investigation traced the issue back to temperature control deviations in the annealing furnace. After process adjustments were implemented, the product qualification rate increased from 92% to 99.5%.

2. Sterilization Process Verification

High-pressure steam sterilization is a commonly used process for ampoule packaging, requiring the container to maintain structural integrity under conditions of 121°C and 0.2 MPa. The testing machine can simulate sterilization pressure conditions to verify the compatibility between ampoules and sterilization equipment. A vaccine manufacturer discovered through testing that the pressure resistance value of a certain ampoule model decreased by 15% after sterilization, leading to optimization of the glass formulation and successfully resolving packaging failure issues.

3. Transportation Environment Simulation

During transportation, ampoules may experience vibration, stacking pressure, and atmospheric pressure variations. The testing machine can be combined with constant-pressure holding tests to evaluate the impact resistance of packaging materials. A logistics company demonstrated through testing that after adopting cushioning materials, the breakage rate of ampoules was reduced from 3.2% to 0.5%, significantly improving transportation safety and packaging reliability.

Advantages of Glass Bottle Internal Pressure Resistance Testing Machine

The Glass Bottle Internal Pressure Resistance Testing Machine is an efficient and precise testing device mainly used to evaluate the internal pressure resistance performance of glass bottles. By adopting advanced automation technology, it can complete various testing tasks quickly and accurately, providing enterprises with a more reliable and efficient quality inspection solution.

The advantages of the Fully Automatic Glass Bottle Internal Pressure Resistance Testing Machine are as follows:

1. High Level of Automation

The equipment adopts advanced automation technology and can automatically complete the entire testing process, including sample clamping, pressurization, pressure holding, and pressure release. This significantly improves testing efficiency and reduces manual operation requirements.

2. High Testing Accuracy

The fully automatic glass bottle internal pressure resistance testing machine is equipped with high-precision sensors and an advanced control system, enabling accurate measurement of the internal pressure resistance performance of glass bottles. This ensures reliable and repeatable test results.

3. Easy Operation

The equipment features a user-friendly operation interface with simple and intuitive controls. Operators only need to set the required parameters to complete the testing process, reducing operational complexity.

4. High Safety Performance

The fully automatic glass bottle internal pressure resistance testing machine integrates multiple safety protection functions to ensure safe and stable operation during testing. These safety measures effectively reduce potential risks caused by high-pressure testing.

5. Strong Adaptability

The equipment is suitable for glass bottles of various specifications and materials, meeting the testing requirements of different manufacturers and application fields.

In summary, the Glass Bottle Internal Pressure Resistance Testing Machine provides a quantitative evaluation method for glass bottle quality by simulating internal pressure environments. From production quality control and sterilization process verification to transportation environment simulation and compliance with international standards, this equipment has become an essential tool for pharmaceutical companies to ensure drug packaging safety, improve product reliability, and enhance market competitiveness.Feel free to contact us directly for more detailed product information and technical specifications.
