What Makes an Automatic Wire Cutting Machine Essential?

With the automotive industry undergoing a profound transformation toward electrification, intelligent technologies, and connectivity, the electronic and electrical architecture of vehicles is becoming increasingly complex. As the “neural network” of an automobile, the processing precision and production efficiency of wiring harnesses directly determine the safety and reliability of the entire vehicle. Against this backdrop, the fully automatic automotive wire stripping and cutting machine, with its high precision, high efficiency, and high degree of automation, has become an indispensable key piece of equipment in modern automotive wiring harness manufacturing.

Technical Highlights and Intelligent Design

Fully Automated Process, Improving Efficiency and Reducing Labor Costs

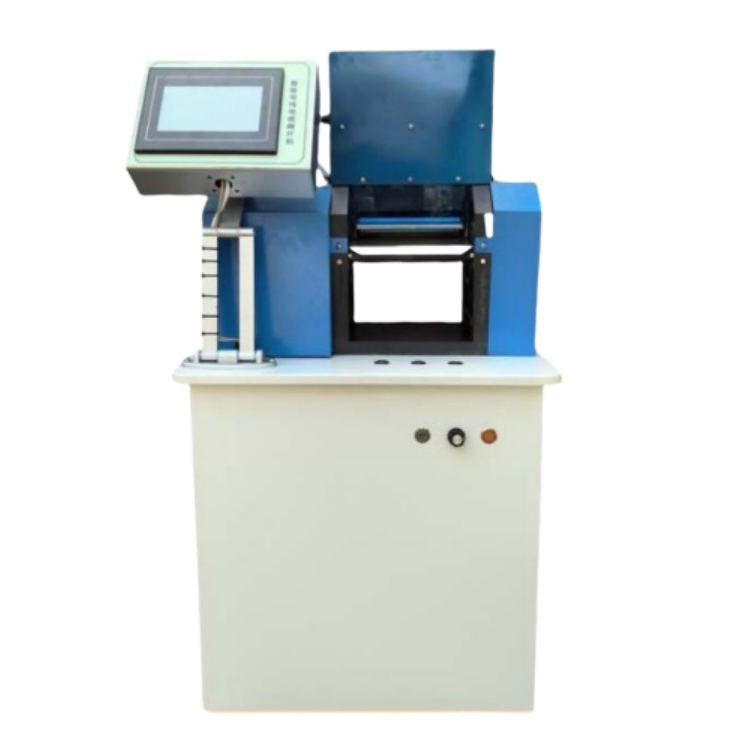

The Fully Automatic Automotive Wire Stripping and Cutting Machine achieves fully automated operation throughout the entire process, including wire feeding, positioning, stripping and cutting, and material discharge, eliminating the need for continuous manual supervision. Operators only need to perform simple operations such as wire clamping and parameter setting, after which the machine can independently carry out continuous stripping and cutting.Compared with traditional manual stripping and cutting, the operating efficiency can be increased several times, significantly shortening the specimen preparation cycle and meeting the requirements for efficient large-volume production and batch sampling inspection of automotive wires. At the same time, automated operation reduces labor costs and the probability of human operating errors, avoiding specimen waste caused by human factors and effectively reducing production and testing costs to meet the requirements of modern production lines for efficient operation.

Extremely High Cutting Precision, Ensuring Consistent Specimen Standards

High-precision cutting is the core advantage of this equipment. The machine adopts a precision servo drive system and a digital thickness adjustment mechanism. The cutting thickness can be precisely set within the range of 0.5 mm–1.5 mm, with the cutting error accurately controlled within ±0.02 mm.The prepared insulation-layer specimens feature uniform thickness and smooth, flat surfaces, without burrs, cracks, rough edges, or other defects. The internal metal conductor of the wire is not damaged, fully meeting the stringent requirements for standard specimens in cable mechanical property, thermal aging, thermal elongation, and other tests.The machine also provides excellent repeatability. Specimens produced through multiple consecutive cutting operations have completely consistent specifications, effectively resolving common problems associated with manual cutting, such as uneven thickness and large specimen variations, thereby ensuring the accuracy, consistency, and comparability of subsequent performance test data.

Wide Application Range, Compatible with Various Types of Wires

The machine offers strong material compatibility and can meet the cutting requirements of various types of automotive wires. It can operate reliably on low-voltage wires used in conventional fuel vehicles, high-voltage wiring harnesses used in new energy vehicles, and automotive-specific wires with different wire diameters and insulation materials.For insulation materials with different hardness levels and characteristics, including PVC, XLPE, silicone rubber, and fluoroplastics, the cutting speed, clamping force, and cutting depth can be flexibly adjusted. Different types of wires can be processed without replacing the core components, meeting the specimen preparation requirements of automotive wiring harness manufacturers for multiple wire types and specifications. There is no need to configure multiple dedicated machines, thereby improving equipment utilization.

Digital Intelligent Control, Simple and Easy Operation

The machine is equipped with a PLC programmable control system and a high-definition touchscreen interface, enabling visual parameter setting and real-time monitoring. Operators can set key parameters such as cutting thickness, feeding speed, and cutting length directly through the touchscreen with simple and intuitive operations. No advanced technical expertise is required, and new operators can operate the machine independently after basic training.The system also features a parameter memory function, allowing frequently used cutting parameters to be stored. For subsequent specimen preparation of the same or similar products, parameters can be directly recalled without repeated setting, greatly simplifying the operating process.In addition, the machine is equipped with intelligent functions such as automatic positioning, automatic resetting, and automatic fault alarms. The operating status is monitored in real time. In the event of abnormal conditions such as material jamming or overload, the machine immediately stops and provides an alarm, ensuring stable operation.

Stable and Durable Operation, Low Maintenance Costs

The main body of the machine adopts a high-strength rigid structural design, minimizing vibration and displacement during operation and ensuring stable performance during long-term continuous operation.The core cutting components use imported high-speed steel blades featuring high hardness, excellent wear resistance, and long-lasting sharpness. The blades do not require frequent replacement and can maintain efficient cutting performance over an extended period.The interior of the machine adopts a modular design with a rational component layout, making daily cleaning, maintenance, and component replacement simple and convenient without complicated servicing procedures. The machine is also equipped with effective heat-dissipation and dust-proof structures, allowing it to operate in different environments such as production workshops and laboratories. Its low long-term failure rate helps reduce subsequent maintenance and equipment replacement costs.

Comprehensive Safety Protection for Safe and Reliable Operation

To address the safety risks associated with cutting operations, the machine is equipped with a comprehensive safety protection system. The machine body features a fully enclosed transparent safety guard, allowing operators to observe the cutting process in real time while preventing contact with the high-speed cutting blade and reducing the risk of mechanical injury.An emergency stop button is provided to enable immediate shutdown and rapid interruption of the power source in an emergency. The machine also features overload protection and leakage protection. When the equipment load exceeds the specified limit or an electrical abnormality occurs, the power supply is automatically cut off to prevent equipment damage and safety accidents, providing comprehensive protection for both operators and equipment.

User-Friendly Structural Design, Optimized Operating Experience

The machine features a compact overall structure and a small footprint, allowing it to be flexibly installed in various environments such as production workshops and laboratories.The wire clamping section adopts an adjustable precision fixture for quick clamping and accurate positioning. Wires of different diameters can be securely fixed, preventing displacement or shaking during the cutting process.The machine is also equipped with a dedicated specimen collection device that automatically collects the standard specimens after cutting, making subsequent retrieval convenient while preventing specimen contamination and damage. The overall design is closely aligned with practical application requirements, and its user-oriented features significantly improve operating convenience.

Wide Compatibility: Meeting Diverse Wiring Harness Processing Requirements

Automotive wires are available in a wide variety of types, with cross-sectional areas ranging from 0.13 mm² to 300 mm² and materials including PVC, XLPE, silicone rubber, Teflon, and other types. The Fully Automatic Wire Stripping and Cutting Machine demonstrates excellent compatibility and versatility:

Full-Range Compatibility: Whether processing traditional low-voltage signal wires, high-voltage cables for new energy vehicles, coaxial cables, shielded wires, or flat ribbon cables, the machine can perform precise processing.

Multiple Stripping Modes: The machine supports various processing modes, including end stripping, intermediate segment stripping, multi-layer stripping (up to 9 layers), partial stripping, and full stripping. For high-voltage wiring harnesses used in new energy vehicles, the machine can precisely strip thick insulation layers and shielding layers, ensuring the insulation safety and electromagnetic compatibility of high-voltage systems.

Adaptability to Special Materials: For specialty wires such as high-temperature-resistant silicone rubber wires and oil-resistant fluoroplastic wires, the machine can automatically adjust the cutting force to prevent deformation or wire breakage of the conductor, ensuring reliable wiring harness performance under extreme operating conditions.

Application Scenarios: Covering the Entire Automotive Industry Chain

The Fully Automatic Automotive Wire Stripping and Cutting Machine has been widely applied across various stages of automotive manufacturing:

Automotive Wiring Harness Manufacturing: During the production of low-voltage wiring harnesses such as instrument panel harnesses, engine harnesses, and chassis harnesses, the machine can efficiently cut and strip thousands of wires, ensuring secure connections and stable electrical conductivity while preventing short circuits or overheating caused by poor contact.

Supporting Components for New Energy Vehicles: For high-voltage wiring harnesses used in power batteries, motors, and electronic control systems, as well as charging pile cables and vehicle-mounted charging gun cables, the machine provides high-precision preprocessing to ensure the safe and reliable operation of high-voltage systems.

Automotive Electronic Components: Internal connection wires for precision components such as vehicle-mounted cameras, radar sensors, and controllers require high-precision processing by this machine, ensuring accurate matching between individual components and the vehicle's wiring harness system.

After-Sales Maintenance and Remanufacturing: In 4S dealerships and repair shops, the machine can quickly reproduce original wiring harness specifications and enable standardized processing of replacement wiring harnesses, improving repair efficiency and quality. It can also be used for the recycling and remanufacturing of used wiring harnesses, thereby improving resource utilization.

Conclusion

The Fully Automatic Automotive Wire Stripping and Cutting Machine is not merely a technological upgrade to conventional wiring harness processing equipment; it also represents an important step toward Industry 4.0 in automotive manufacturing. With its advantages in automation, precision, and flexibility, the machine addresses key industry challenges such as heavy reliance on manual labor and difficulties in quality control during wiring harness production.As the new energy vehicle market continues to expand and automotive electronic technologies continue to evolve, fully automatic wire stripping and cutting machines will play an increasingly important role in improving production efficiency, ensuring product quality, and reducing manufacturing costs, providing strong support for the high-quality development of the automotive industry.
