What functions can Static Honest Meter achieve?

The tester of electrostatic attenuation tester is an electrostatic attenuation tester for testing the electrostatic diffusivity of various materials.

The sample is charged due to the irradiation of air ions produced by halo discharge. After the irradiation of air ions stops, the attenuation curve of charge is measured by the tester, and then the half-life of voltage attenuation is automatically calculated by the analyzer.



Attenuation of static electricity tester is an analytical arithmetic unit, which obtains the electrostatic attenuation curve by electrostatic tester, automatically calculates the half-life of voltage attenuation, and automatically measures the electrostatic attenuation of materials by single-button operation. The following functions can be realized after connecting a personal computer:

1. Setting of attenuation rate: The attenuation range can be freely set in the range of 2 ~ 100%, and the half-life is usually set at 50%.

2. Saving test data: The test data can be saved to the HDD system of the computer as CSV file. It is convenient to save query data in the future.

3. Storage of test environment data: the temperature and humidity data can be automatically measured and automatically saved to the corresponding folder.

4. Representation of attenuation curve: voltage coordinate and time coordinate can be enlarged or reduced at the same time. After measurement, it can be changed freely according to the actual situation. It is convenient to observe samples with unfamiliar characteristics.

5. Sample determination method: According to different requirements, the samples can be automatically tested, manually tested and tested according to specified procedures.

6. Correction function: voltage correction can be performed according to own program. Ensure the stability of test data.

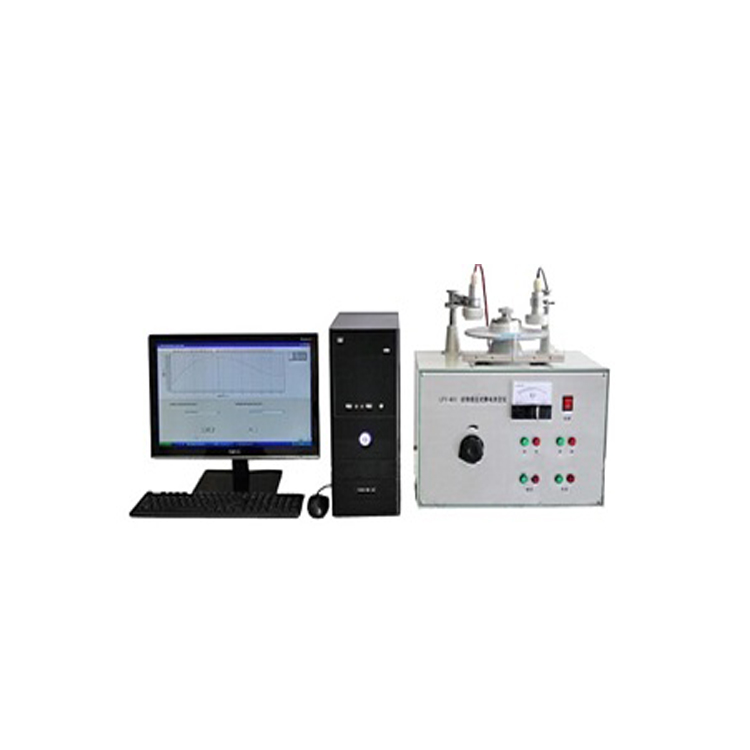

Static Decay Meter is an automatic testing equipment developed by Qinsun, which meets the standards of GB/T12703.1, FZ/T 01042 and IS L1094, and is suitable for measuring all sheet samples such as film, sheet, silk thread, cloth, carpet and glass.
